The Optris PI Series is a range of high-precision, radiometric fixed thermal cameras developed for stationary thermography in industrial, research, and R&D environments. The portfolio includes long-wave infrared (LWIR) models for general temperature measurement, a dedicated G7 glass camera optimised at 7.9 µm, and short-wavelength thermal cameras designed for high-temperature and reflective metal surfaces. Select models are also suitable for monitoring laser-based processes.
Designed to capture both gradual temperature changes and rapid thermal events, the PI Series offers frame rates from approximately 32 to 125 Hz in the LWIR range and up to 1 kHz in short-wavelength variants. The Precision Line focuses on exceptional image quality, a small measurement field of view (MFOV), and highly accurate radiometric temperature data.
All PI Series fixed infrared cameras connect via USB 2.0 and operate with PIX Connect software, enabling thermal data acquisition, analysis, alarm configuration, and I/O mapping. Compact, rugged IP67-rated housings support a wide range of interchangeable optics, from wide-angle lenses to microscope optics, with manual focus for precise target alignment.
Long wavelength IR cameras
- -20 to 1500℃
- 382 x 288 px
- 80Hz
- USB
- -20 to 1500℃
- 382 x 288px
- 80Hz
- USB
- -20 to 1500℃
- 640 x 480px
- Up to 125Hz
- USB
PI 400i LT
The PI 400i thermal camera measures surface temperatures with a broad temperature range from -20°C up to 1500°C. Utilising uncooled detector technology, it offers high reliability and a rapid 80 Hz frame rate for motion blur-free imaging. Its 17 µm pixel pitch enables precise measurements, complemented by interchangeable lens optics. Built robustly, it withstands harsh conditions with ease, making it ideal for critical applications where reliability matters.
Pi 410i LT
The Optris Pi 410i LT is an infrared camera enables thermal imaging with a resolution of 382 x 288. A rapid 80 Hz frame rate ensures precise temperature detection even in fast production processes without motion blur or image distortion. The PI 450i offers high sensitivity (up to 40 mK) and a broad ambient temperature range (up to 80°C), making it suitable for industrial use in harsh ambient conditions.

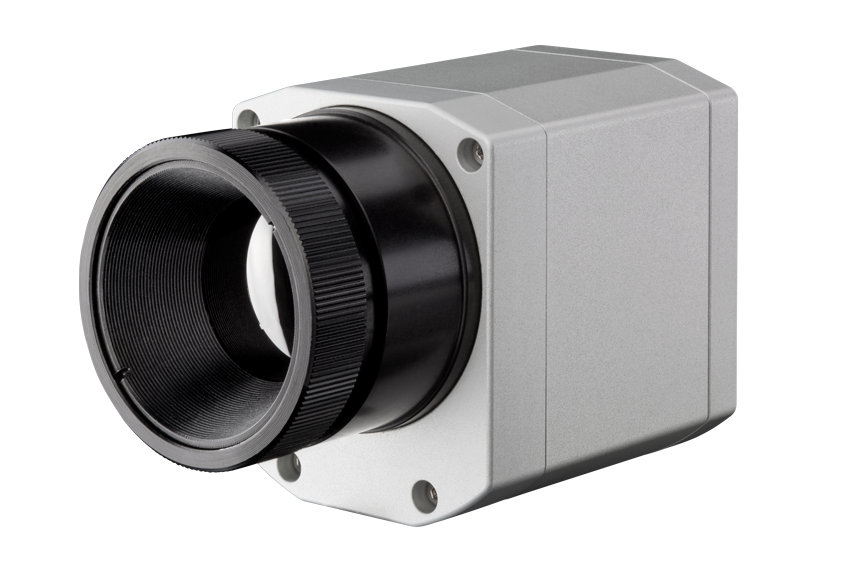

PI 640i LT
The Optris PI 640i is a high-end infrared thermal camera developed for advanced research applications and precise industrial process monitoring. Compact in design yet powerful in performance, the PI 640i combines accuracy and reliability in a robust thermal imaging solution. Featuring a VGA detector resolution of 640 × 480 pixels, the camera produces exceptionally sharp radiometric thermal images and video, enabling detailed temperature analysis and clear visualization of thermal patterns across a wide range of applications.
Applications
- Plastic
- Matt Materials
- Semi-conductors
- Composites
- Organic Materials
- Ceramics
Applications
- Plastics
- Matt Materials
- Semi-conductors
- Composities
- Organic Materials
- Ceramics
Applications
- Plastic
- Matt Materials
- Semi-conductors
- Composites
- Orangic Materials
- Ceramics
Short wavelength IR Cameras
- 900 to 2450℃
- 764 x 480px
- up to 1kHz
- USB
- 575 to 1900℃
- 764 x 480px
- up to 1kHz
- USB
- 450 to 1800℃
- 764 x 480px
- up to 1kHz
- USB
PI 05M
The Optris PI 05M is an ultra-short-wavelength infrared thermal camera engineered for high-precision, non-contact temperature measurement of extremely hot targets. Operating in the 0.50–0.54 µm spectral range, the PI 05M is ideally suited to applications where conventional infrared cameras struggle, such as molten metal processing and additive manufacturing using NIR or CO₂ lasers.
With a wide temperature measurement range from 900 °C to 2450 °C, the PI 05M enables accurate, stable temperature monitoring of super-hot materials and laser-based processes. Its short-wavelength design minimizes emissivity-related errors at very high temperatures, making it a reliable solution for pinpoint thermal analysis in advanced manufacturing and high-temperature industrial environments.
PI 08M
The Optris PI 08M is a compact infrared thermal camera developed to minimise measurement errors in NIR and CO₂ laser processing applications. Designed specifically for additive manufacturing and laser-based thermal processes, it provides reliable non-contact temperature measurement across a continuous range from 575 °C to 1900 °C.
By operating at a short measurement wavelength of 0.8 µm, the PI 08M benefits from higher effective emissivity at elevated temperatures and reduced sensitivity to laser radiation. This makes it well suited for accurate temperature monitoring in environments where conventional infrared cameras may be affected by laser interference.
PI 1M
The Optris PI 1M is a specialised infrared thermal camera designed for accurate temperature measurement of metals and metallic surfaces. By operating at a short measurement wavelength of 1 µm, it takes advantage of the higher emissivity of metals at this wavelength compared to conventional long-wave infrared ranges, resulting in more reliable and precise temperature readings.
In addition to high-quality thermal visualisation, the PI 1M features fast detector electronics with a response time of just 1 ms, enabling rapid detection of temperature changes in dynamic thermal processes. Typical applications include metallurgy, laser processing, and research involving metals, steel, and alloy materials, where fast response and measurement accuracy are critical.
Applications
- Reflecting Metals
- Matt Materials
- Semi-conductors
- Ceramics
Applications
- Reflecting Metals
- Matt Materials
- Semi-conductors
- Ceramics
Applications
- Reflecting Metals
- Matt Materials
- Semi-conductors
- Ceramics
Special Purpose Fixed Thermal Cameras
- 150 to 1500℃
- 382 x 288px
- 80Hz
- USB
- 150 to 3000℃
- 640 x 480px
- Up to 125Hz
- USB
PI 450i G7
The Optris PI 450i G7 infrared cameras, part of the PI series, are crafted for the glass industry, operating in the 7.9 µm spectral band. Tailored for glass manufacturing, they withstand temperatures up to 80°C in harsh industrial settings. The line scanner mode delivers precise infrared images of glass products, ensuring superior radiometric measurement. Equipped with interchangeable lenses and industrial accessories, it comes with complimentary software.
PI 640i G7
The Optris PI 640i G7 infrared cameras are the glass-industry-specific thermal imaging cameras in the PI series. They measure in the G7 spectral range and are designed specifically for the glass industry. The high optical resolution (640 x 480 pixels), fast image sampling capabilities of up to 125 Hz, and line scanner mode offer innovative, detailed, and accurate infrared images of glass sheets or products.
Applications
- Glass
- Ceramics
Applications
- Glass
- Ceramics
