This type of information is required in a wide range of environments so while the basic output is common to all sensors in this category there are many variations allowing them to be used in those different environments ranging from:
- standard industrial conditions
- submersible and long term wet operation
- approved under ATEX, IECEx and ANZEx for use in hazardous areas

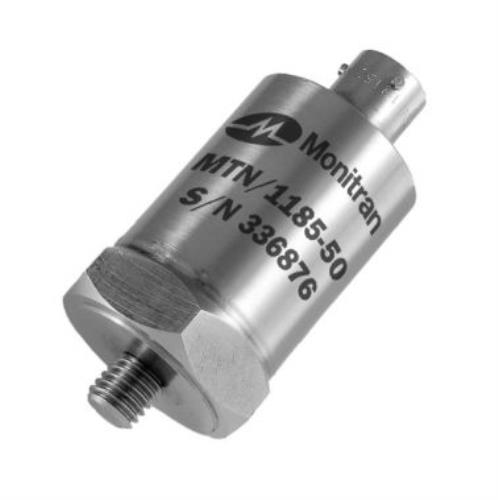

The long standing Monitran 1185C series is tried and trusted. It’s a general purpose, top-entry velocity transducer with DC output, made from robust stainless steel throughout for continuous vibration monitoring in harsh environments. The unit is sealed to IP67 with industry standard two-wire 4-20mA output proportional to sensor range that can connect directly to PLC, DCS and other industrial controllers.
The Monitran 1185I /C model is ATEX and IECEx Group I & II certified. It has all of the Monitran 1185I /C’s components with integral stainless overbraided ETFE cable and is available with a wide range of mountings.
The 1185W model is a submersible, for harsh underwater environments and areas with constant moisture or condensation. Includes integral heavy duty polyurethane cable and is sealed to IP68 and is available with a wide range of mountings. The 1185IW is ATEX and IECEx Group I & II certified.
