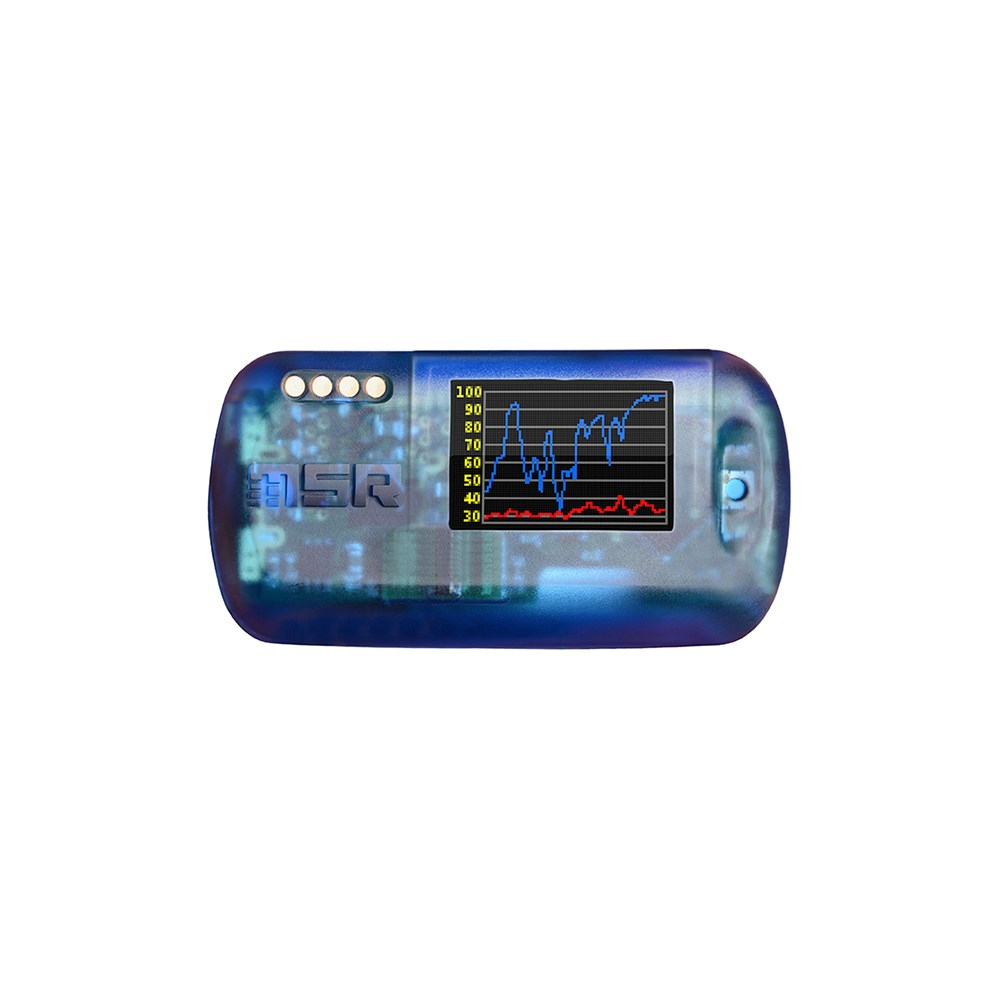

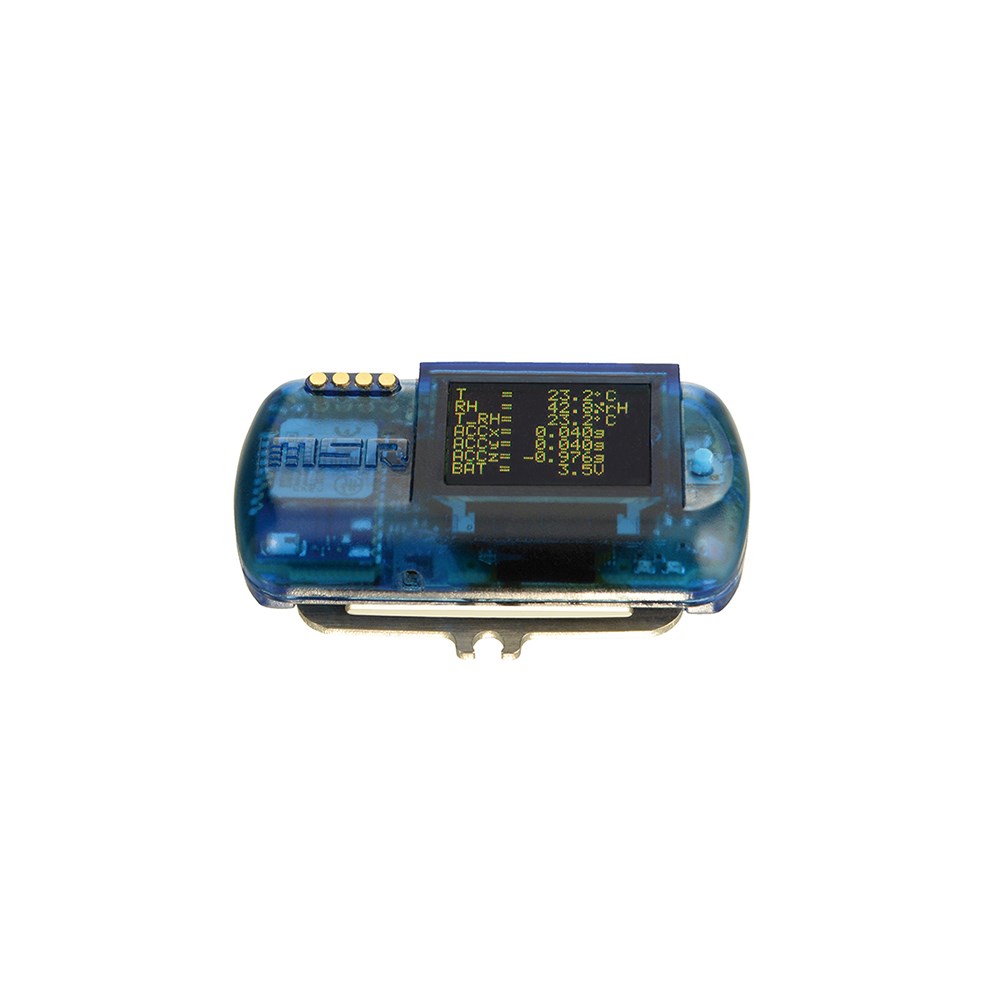

WiFi Wireless Data Logger MSR145W2D

wireless data logger (WiFi) for monitoring temperature, humidity, fluid pressure, air pressure, acceleration, strain gauges and more · NEW with FlexSensors

The wireless mini-logger from MSR stores over one million measured values. By integrating it into a WLAN/WiFi network, the MSR145W2D can be used in practically any kind of measurement applications.

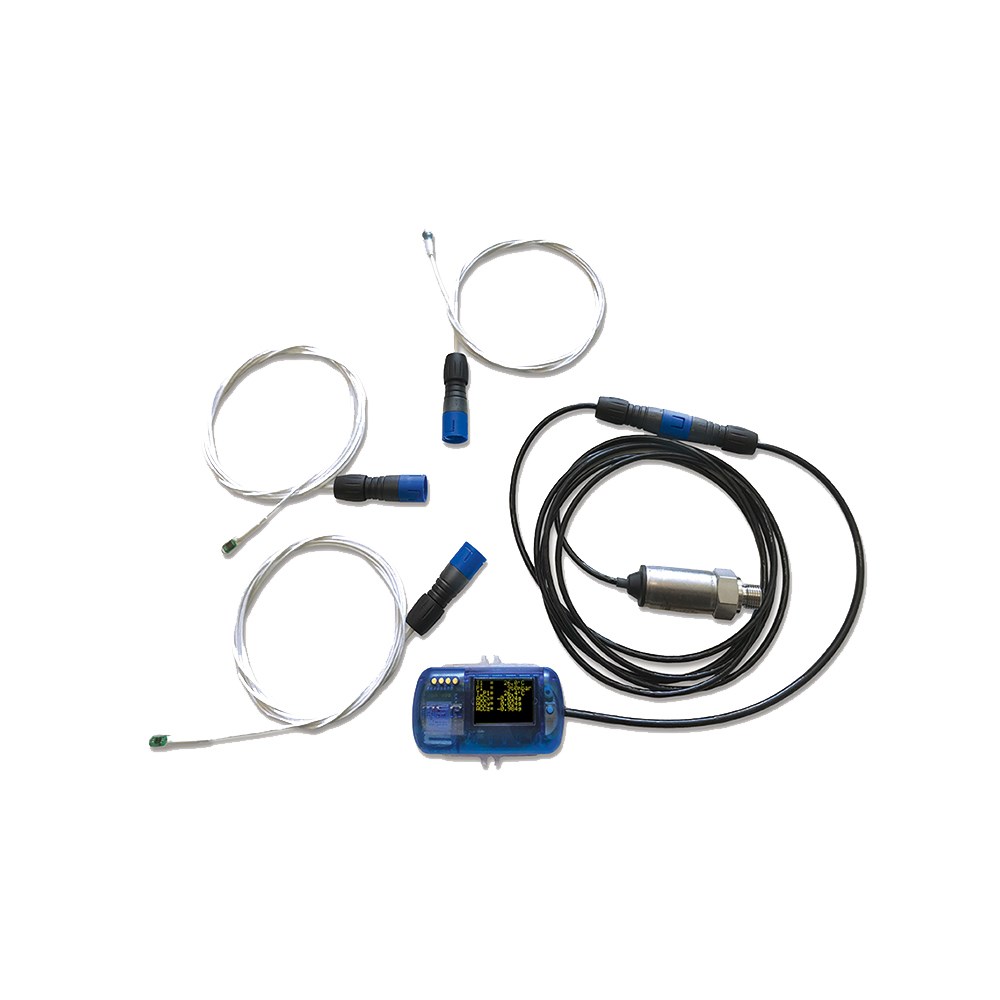

Interchangeable FlexSensors for temperature, humidity, light

The WiFi data logger is an all-round talent when it comes to sensor technology: You can choose various internal sensors as well as up to five external sensors or connections. The FlexConnector offers the highest possible flexibility. The intelligent plug-in connection facilitates customer-specific adaptation of the desired FlexSensors.

WiFi Wireless Data Logger: Ready to use in no time

No wiring costs and no time-consuming manual reading of measured values. Measured data can even be sent from places with difficult access. Integration either into an existing WiFi or via an access point, by means of mobile network access where required, into a separate wireless network.

Long-term measurements with the MSR145W2D

When it comes to observing environmental conditions over a longer period of time, in many cases it is quite sufficient to transmit the collected data via WiFi once or twice a day. When configuring the MSR145W2D,

you can set the time windows during which the data logger should connect to the WiFi network. The WiFi connection is thus only activated

when it is needed – which has a positive effect on the battery life of the data logger.

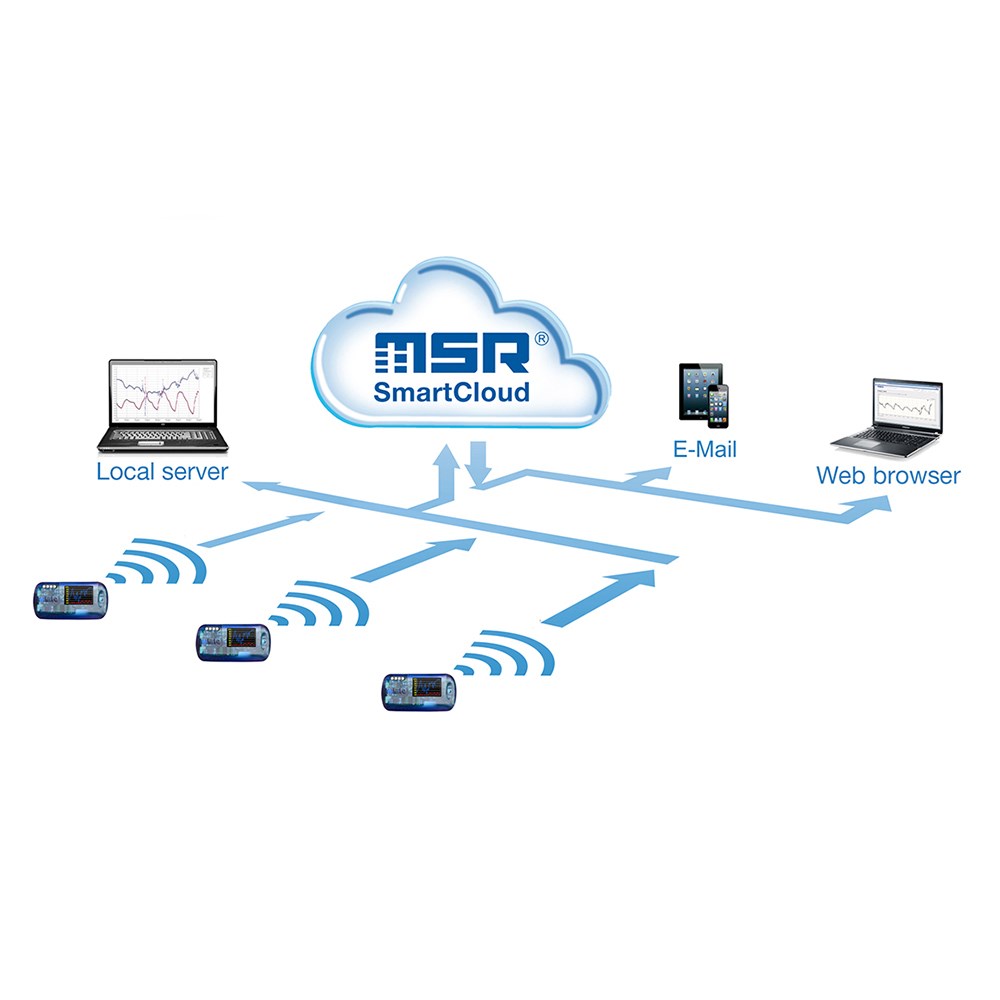

Save and manage data in the MSR LocalCloud or in the MSR SmartCloud

With the MSR145W2D you have the option of using the MSR LocalCloud to store, manage and export the data either locally on your (company’s) own server or in the web-based cloud solution MSR SmartCloud. Via web browser you can view the measured values during operation.

Application example long-term measurement

In order to gain knowledge about the movement activity of dairy goats, MSR145W2D data loggers with acceleration sensors are used in a scientific research project. The loggers record the animals’ activities for 24 hours. The data transmission via WiFi takes place energy-savingly only once a day – when the goats are in the barn. This energy-saving data transmission allows the battery to run for more than 5 months. Should the WiFi connection fail, the data remain securely stored in the logger and can also be read out via USB.

Short-term measurements with the MSR145W2D

For test measurements, it is often necessary to monitor measurement data in real time. In this case, the MSR145W2D is configured by the user so that the data is permanently sent to the WiFi network. Although the uninterrupted transmission of data results in higher power consumption, which affects the mobile operating time of the data logger, the data can be viewed immediately using MSR LocalViewer. For further processing, the measurement data can be sent to the cloud if required.

Application example: Short-term measurement

To determine load values, wireless MSR145W2D data loggers run along the production line at a beverage manufacturer. The measurement data is transmitted in real time via WiFi. Critical values are detected immediately. The recorded data not only help to gain insights into possible causes of increased wear in the production line, the implemented measures can subsequently be checked for their effectiveness with the data loggers.
