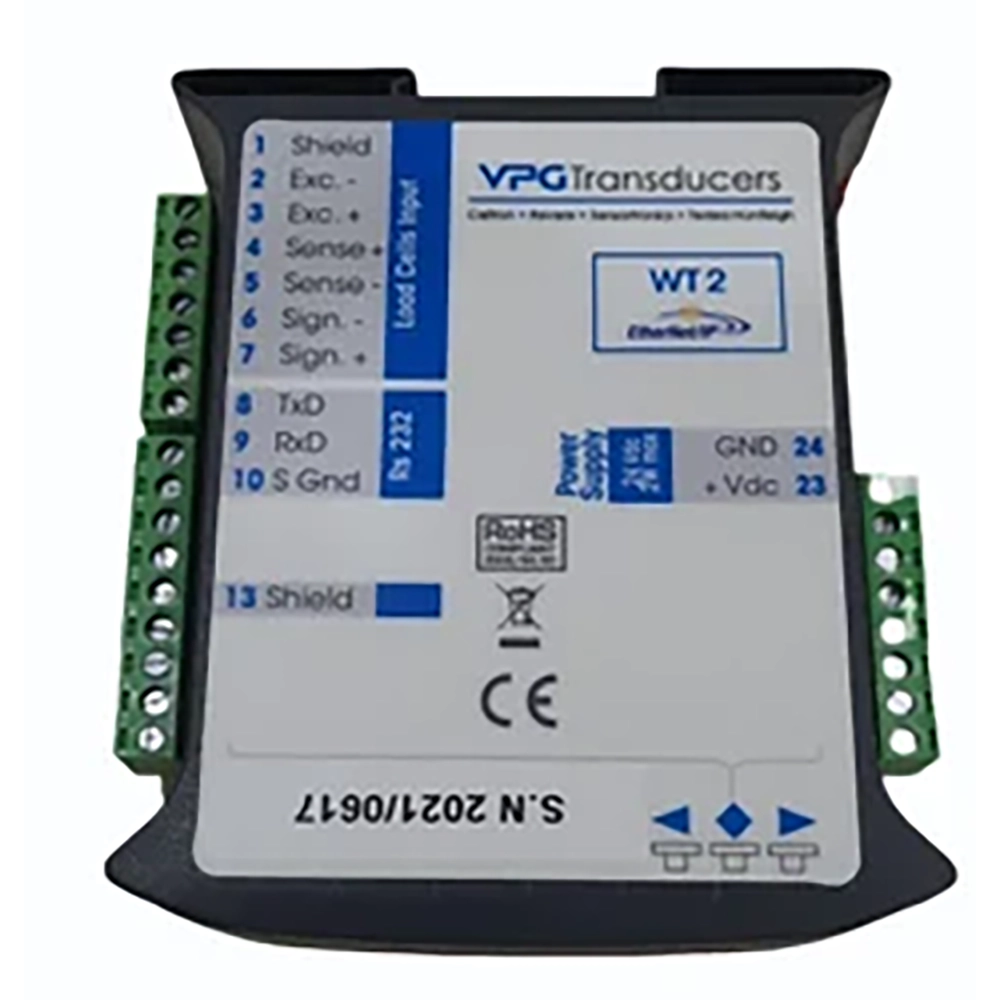

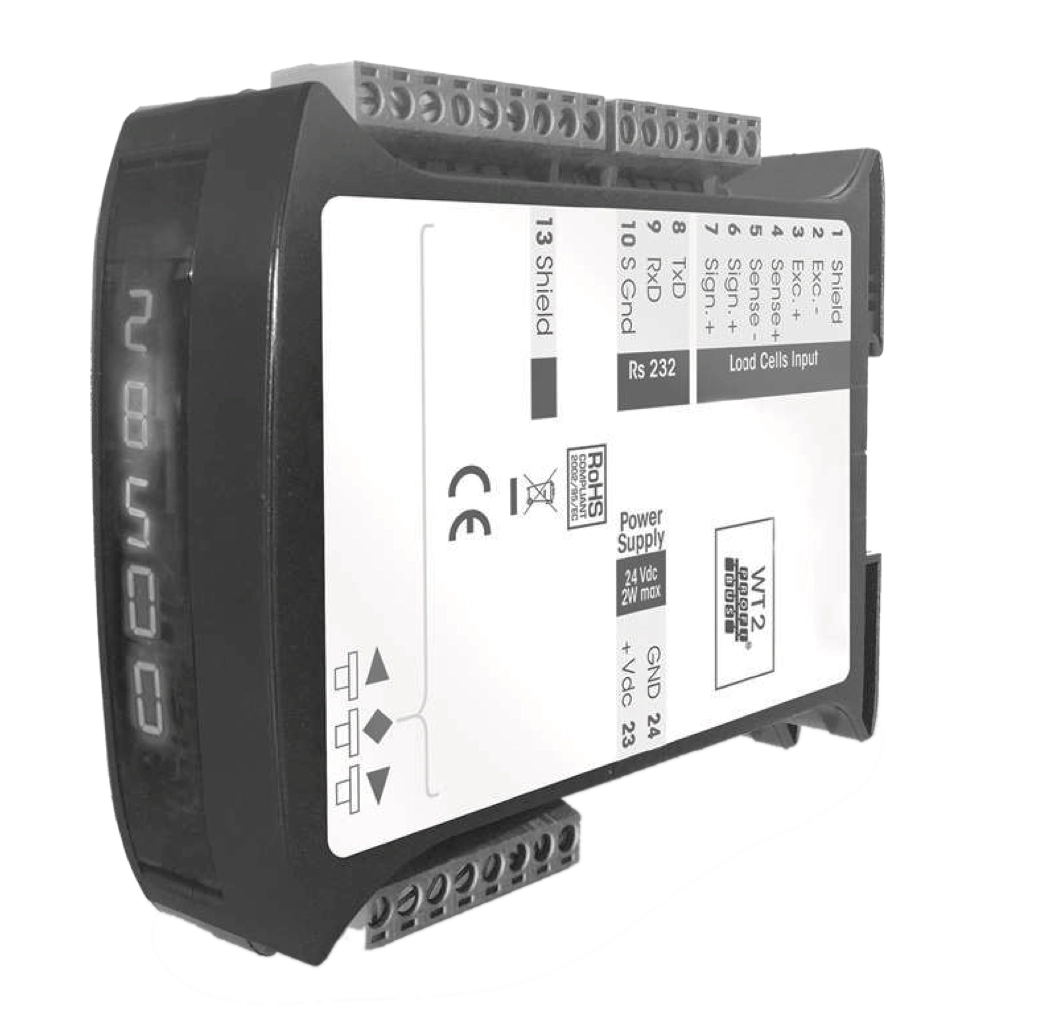

WT2 Weight Transmitter
WT2 Weight Transmitter
Sku: VIS-WT2
The WT2 Weight Transmitter combines accurate weight measurement with enhanced industrial connectivity. Designed for systems using 1–4 load cells, it features a 24-bit converter and PROFIBUS communication as standard. Optional Ethernet connectivity with a 128-byte input/output buffer and PROFINET support enables high-speed communication and integration with complex industrial control systems.
Product Information
The WT2 is a modified version of the WT1 with improved interfacing abilities. It uses the same 24-bit D/A converter and, when connected to a system of 1–4 load cells, the WT2 converts output signals in the same manner as the WT1. The WT2’s strength is in its connectivity. It uses PROFIBUS as its default protocol, which is faster than
the MODBUS protocol and able to control more complex systems. The WT2 also features an optional Ethernet connection with a 128-byte in/out buffer for high-speed PC connections. The Ethernet cable can be augmented with the PROFINET protocol, enabling full integration with systems that support it.
FEATURES
- High performance and long-term reliability
- Assembly “snap-on” DIN rail (certified to EN50022 standards)
- Able to interface with intrinsically safe barriers for use in hazardous areas
OPTIONS
- Ethernet version available
- RS-485 full duplex output available
- PROFINET version available
PERFORMANCE Power Output
4 V
Measuring Range
–4 to +4 mV/V
Input Sensitivity
0.02 μV/division
Linearity
<0.01% of full scale
Gain Drift
<0.001% full scale ̊C
D/A Convertor
24 bit
Internal Resolution
16,000,000 counts
Visible Resolution
60,000 counts (visible on net weight)
Divisions Value (Adjustable)
0.001 to 50
Filter (Adjustable)
0.2 to 25 Hz
ENVIRONMENTAL Operating Temperature
–10 to +50 ̊C
Storage Temperature
–20 to +60 ̊C
DISPLAY AND KEYBOARD Display
5 digit, 7 segment, LED
Digit Height
7 mm
Keyboard
3 key mechanical keyboard
Weight Indicator
ELECTRICAL Voltage
24±10% VDC
Wattage
2W
SERIAL COMMUNICATION Serial Output #1
RS232C half duplex with ASCII protocol,
Baud Rate
2400 to 115200 (adjustable)
Serial Output #2 (optional)
PROFIBUS DP-V1
Baud Rate
9.6 K/sec to 12 Mbit/sec
Serial Output #3 (optional)
PROFINET
Baud Rate
According to PROFINET standards
Serial Output #4 (optional)
Ethernet
Buffer Dimensions
128 bytes in, 128 bytes out
ENCLOSURES Dimensions
119 x 112 x 23 mm, L x H x D
Mounting
DIN rail
Electrical Connections
5.08 mm terminal screw pass,
D-Sub 9 poles female connector (Proibus version), RJ45 connector (Ethernet and Proinet connections)
APPROVALS
EN
EN61000-6-2, EN61000-6-3 for EMC; EN61010-1 for electrical security
