WT1 Weight Transmitter
WT1 Weight Transmitter
Sku: VIS-WT1

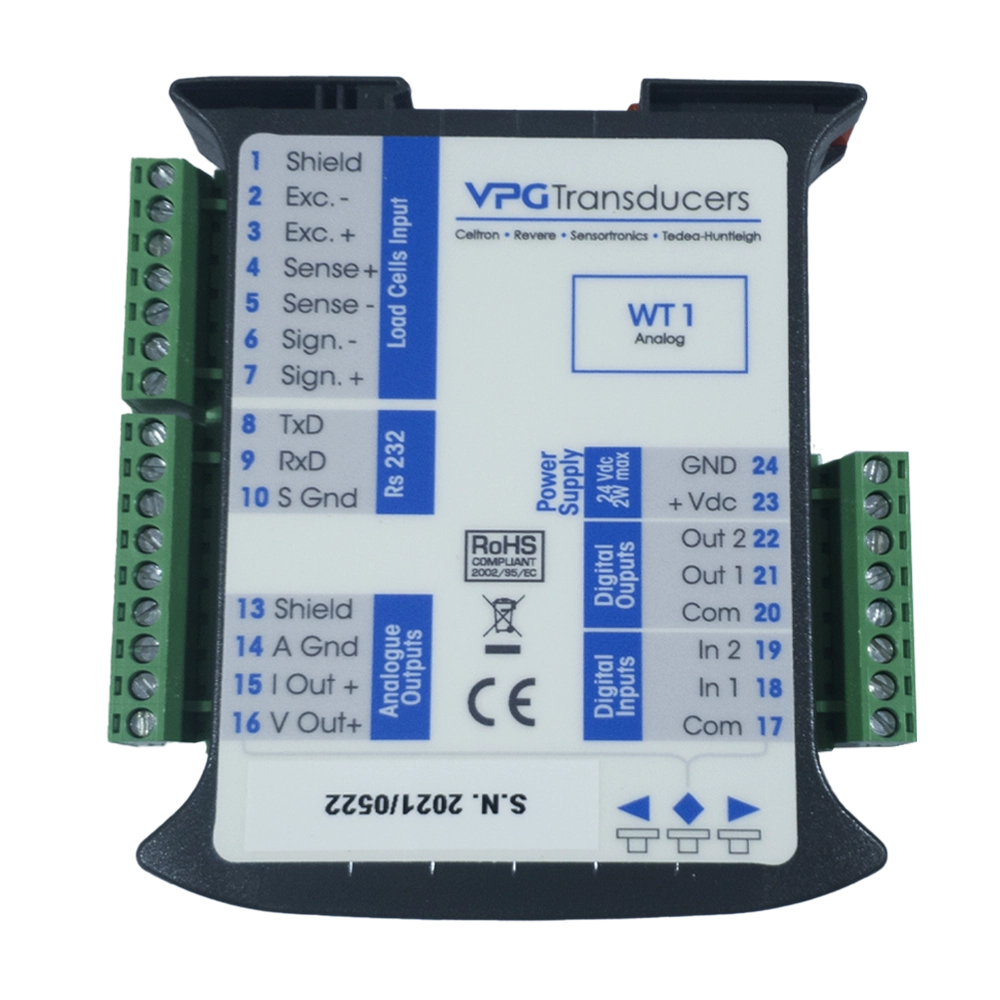

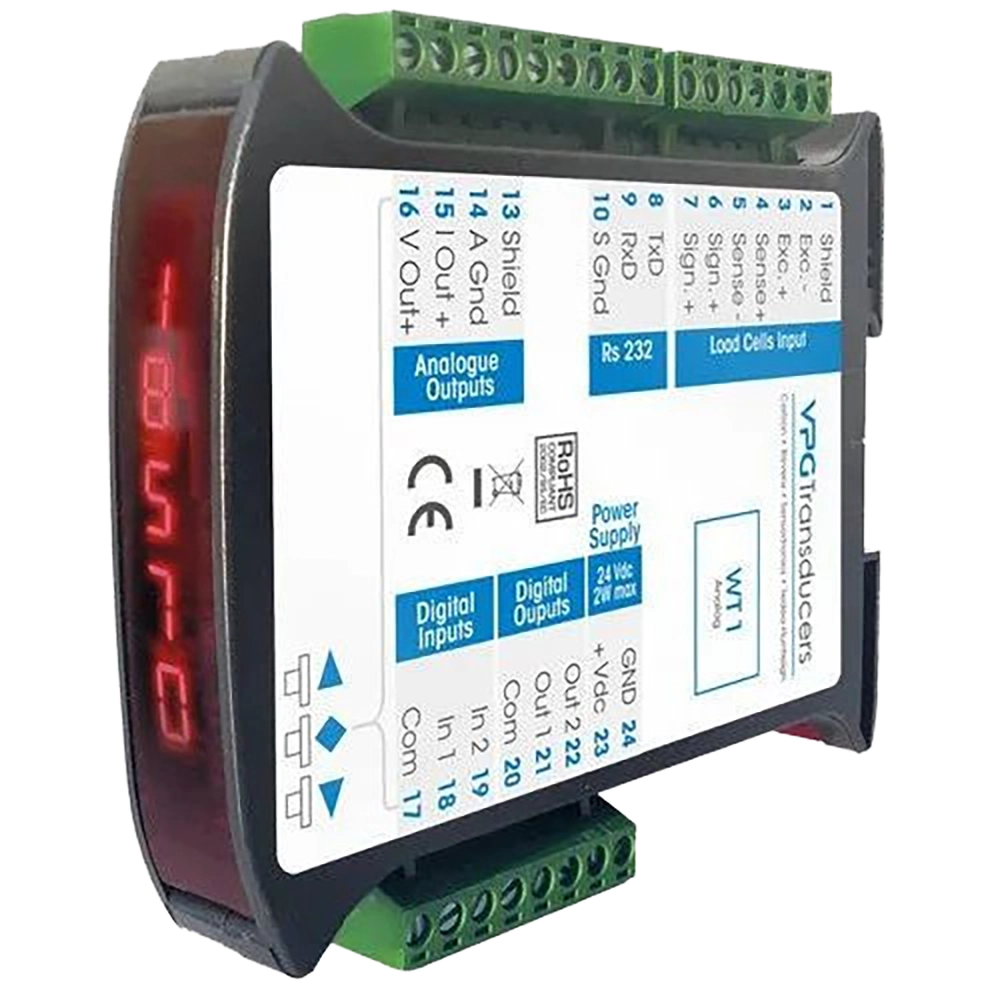

The WT1 Weight Transmitter provides stable, accurate weight measurement for systems using 1–4 load cells. Featuring two logic inputs and two logic outputs as standard, it can also be configured with RS-232C or RS-485 serial communication supporting ASCII or Modbus RTU protocols for integration with PCs and PLCs.
Product Information
The WT1 Weight Transmitter provides accurate readings at an excellent price. When connected to a system of 1–4 load cells, the WT1 will convert output signals into stable, accurate weight values. This model comes with two logic outputs and two logic inputs as standard. The WT1 can be fitted with either an RS-232C half-duplex or RS-485 full duplex serial door; both serial doors can be loaded with ASCII or Modbus RTU protocols to enable communication with a PC or PLC.
FEATURES
- High performance and long-term reliability
- Assembly “snap-on” DIN rail (certified to EN50022 standards)
- Able to interface with intrinsically safe barriers for use in hazardous areas
OPTIONS
- Analogue option available
- RS-485 full duplex output available
PERFORMANCE
Power Output 4 V
Measuring Range –4 to +4 mV/V
Input Sensitivity 0.02 V/division
Linearity <0.01% of full scale
Gain Drift <0.001% of full scale ˚C
D/A Convertor 24 bit
Maximum Load Cells 4 at 350 Ω
Internal Resolution 16,000,000 counts
Visible Resolution 60,000 counts (visible on net weight)
Divisions Value (Adjustable) 0.001 to 50
Filter (Adjustable) 0.2 to 25 Hz
ENVIRONMENTAL
Operating Temperature –10 to +50 ˚C
Storage Temperature –20 to +60 ˚C
DISPLAY AND KEYBOARD
Display 5 digit, 7 segment, LED
Digit Height 7 mm
Keyboard 3 key mechanical keyboard
ELECTRICAL
Voltage 24 ±10% VDC
Wattage 2 W
INPUT AND LOGICS
Logic Input 24 VCC (external voltage), 2 opto-isolated, PNP
Logic Output 2 solid state relays (maximum load 24 VDC/100 mA each)
ANALOG OUTPUT (OPTIONAL)
Output 16 bit, opto-isolated
Tension 0 to 5/10 V, (R Min 10 kΩ)
Current 0/4 to 20 mA (R max 300 Ω)
Linearity <0.03% of full scale
Temperature Drift <0.002% full scale ˚C
SERIAL COMMUNICATION
Serial Output #1 RS-485 full duplex with ASCII or Modbus RTU protocol
Baud Rate 2400 to 115200 (adjustable)
Serial Output #2 (with Analogue Output option) RS-232C half duplex with ASCII or Modbus RTU protocol
Baud Rate 2400 to 115200 (adjustable)
ENCLOSURES
Dimensions 119 x 112 x 23 mm, L x H x D
Mounting DIN rail
Electrical Connections 5.08 mm terminal screw pass
APPROVALS
EN EN61000-6-2, EN61000-6-3 for EMC; EN61010-1 for electrical safety
Various industrial systems
