Universal Load Cell 9363
Product Information

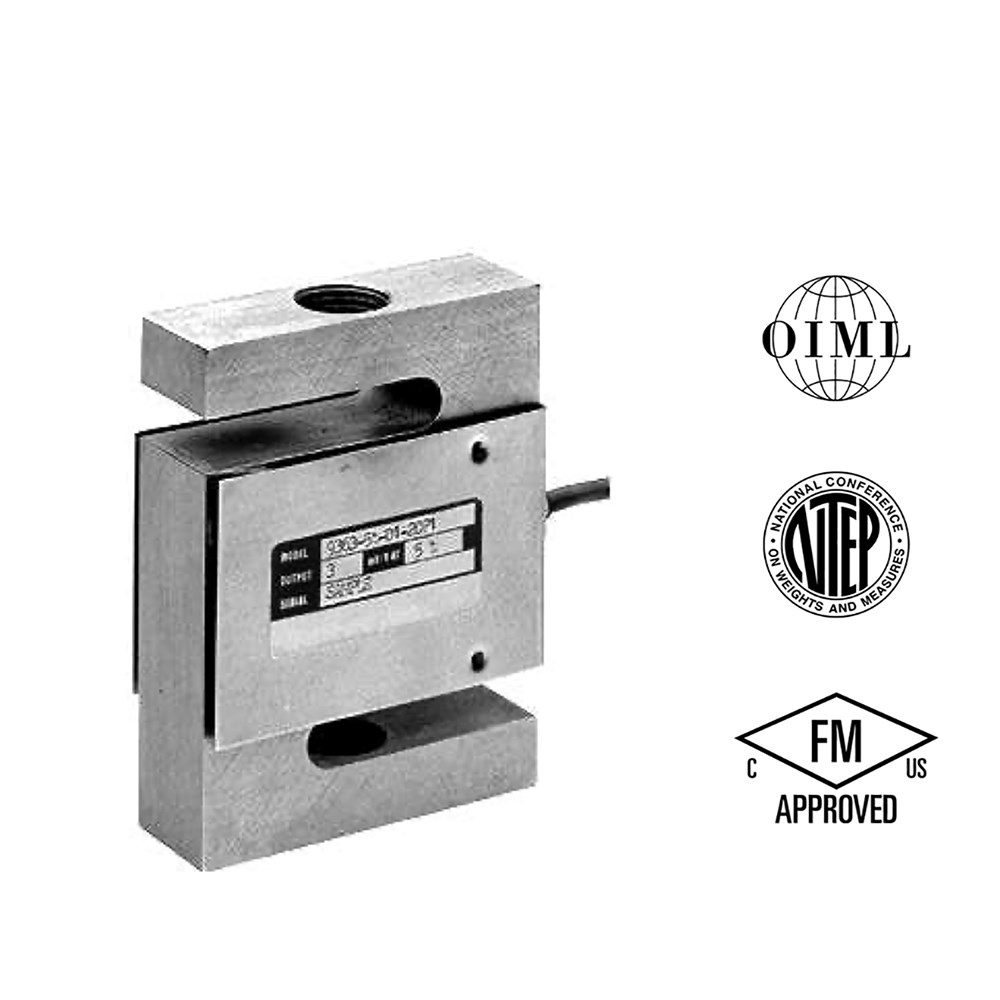

The Load cell 9363 is a multipurpose stainless steel S-type load cell which can be used in tension or compression. This product is suitable for a wide range of hybrid scales, overhead track scales, belt scales, and process weighing applications. Reliable sealing is ensured by the proprietary TRANSEAL potting compound and additional mechanical protection of the strain gage area. This product meets the stringent Weights and Measures requirements throughout Europe and the USA.
- Capacities: 50 to 10,000 kg (50 to 20,000 lbs)
- Stainless steel construction
- Suitable for compression and tension applications
- Trimmed output versions standard
- Sealing: IP67
- Certified to OIML R-60, 3000d, NTEP class IIIL, 10000 divisions
- Optional
- FM approved for use in potentially explosive atmospheres
|
SPECIFICATIONS |
|
|
||
|
PARAMETER |
VALUE |
UNIT |
||
|
Standard capacities (Emax) |
50, 100, 250, 500, 1000, 2500, 5000, 7500, 10000* |
kg |
||
|
Standard capacities (Emax) |
50, 75, 100, 150, 200, 250, 300, 500, 750, 1k, 1.5k, 2k, 3k, 5k, 10k, 15k, 20k |
lbs |
||
|
Accuracy class per OIML R-60 / NTEP |
NTEP IIIL |
Non-Approved |
OIML C3 |
|
|
Maximum no. of verification intervals (n) |
10000 |
D3 |
3000 |
|
|
Minimum verification intervals (Vmin) |
|
|
Emax/9000 |
|
|
Rated output (=FS) |
3.0 |
mV/V |
||
|
Rated output tolerance |
0.0075 |
±mV/V |
||
|
Zero balance |
1.0 |
±% FSO |
||
|
Combined error |
0.0200 |
0.0300 |
0.0200 |
±% FSO |
|
Non-repeatability |
0.0100 |
0.0100 |
0.0100 |
±% FSO |
|
Minimum dead load output return |
|
0.0300 |
0.0165 |
±% applied load |
|
Temp. effect on min. dead load output |
(0.001) |
(0.0015) |
0.0140 |
±% FSO/5°C (/°F) |
|
Temperature effect on sensitivity |
(0.0008) |
(0.0008) |
0.0055 |
±% applied load/5°C (/°F) |
|
Maximum safe overload |
150 |
% Emax |
||
|
Ultimate overload |
250 |
% Emax |
||
|
Excitation voltage |
5 to 12 |
V |
||
|
Maximum excitation voltage |
15 |
V |
||
|
Input resistance |
390±15 |
Ω |
||
|
Output resistance |
350±3.5 |
Ω |
||
|
Insulation resistance |
≥5000 |
MΩ |
||
|
Compensated temperature range |
14 to +104°F |
–10 to +40 |
°C |
|
|
Operating temperature range |
–65 to +200°F |
–40 to +80 |
°C |
|
|
Element material (DIN) |
Stainless steel |
|
||
|
Sealing (DIN 40.050) |
IP67 |
|
||
9363 Datasheet
Applications
- Suspended hoppers
- Overhead track scales
- Force measurement
For more information, click here!
