ToughSonic CHEM 12 Level Sensor
ToughSonic CHEM 12 Level Sensor
Sku: SEN-TOUGHSONIC-CHEM12
Liquids or Solids in Chemically Aggressive Environments
Product Information
Chem series sensors and SenixVIEW software put the power of ultrasonics in your hands. You can quickly adjust, optimize, save, and clone your applications quickly without calibration!

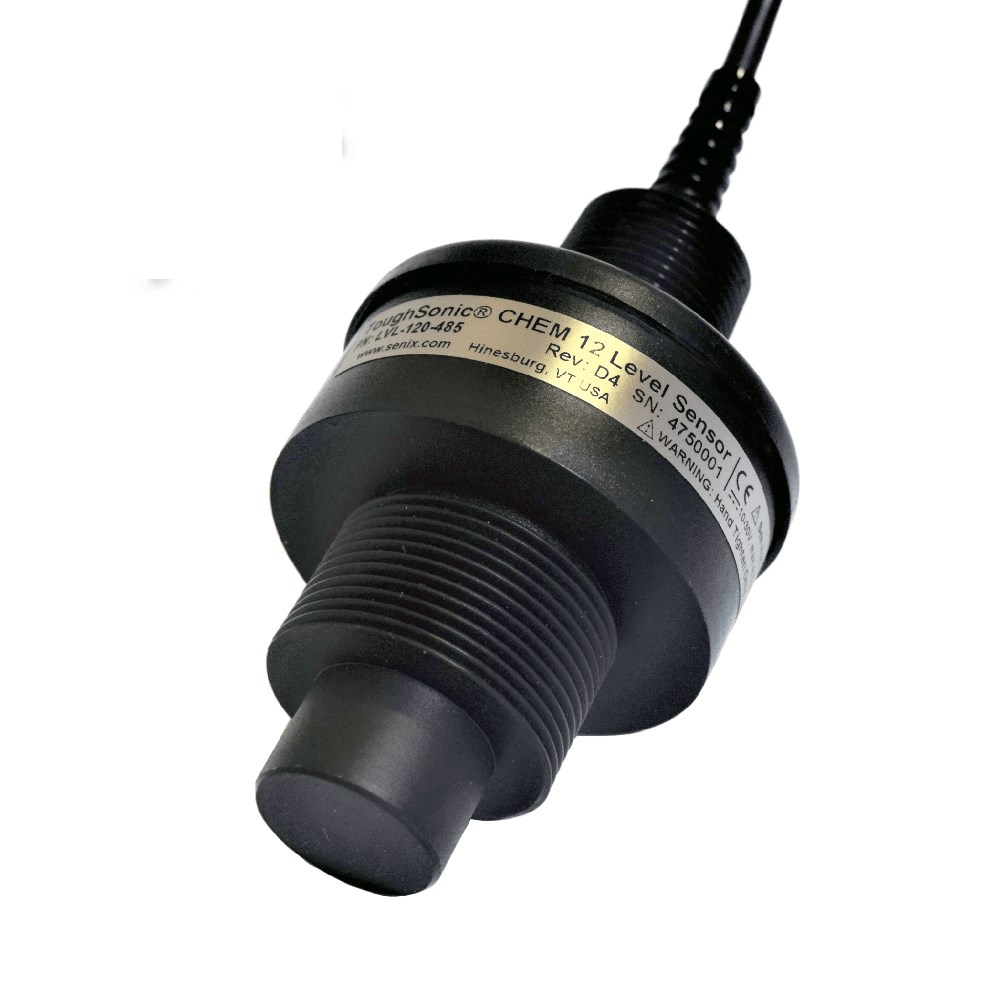

The CHEM 12 is housed in a rugged, chemically inert PVDF sealed housing for long life. A new shorter design and smaller diameter transducer allows for easier installation in tight locations, and measurements closer to the top of a tank. The CHEM 12 also has an improved rugged strain relief design.
Applications include pump control, bulk inventory, batch processing, water management and high/low-level alarms.
Features
- More compact design
- Smaller diameter transducer – easier installation when space is limited
- Shorter design – Measure closer to the top of a tank
- Robust Strain Relief
- Non-contact level measurement
- Rugged construction, IP68 rated
- Indoor or outdoor uses
- Top and bottom mounting threads
- Five outputs plus serial data
- Serial data-only models
- Temperature compensation
- PC configurable
Applications
- Chemical tank levels
- Benign liquid tank levels
- Tanks up to 12-ft (3.66 m) tall
- 1.5 in NPT bottom thread, 1.0 in. NPT top thread
Specifications
| Maximum Range | 12 feet (3.66 meters) |
| Optimum Range | 4 in. to 10 ft (100 mm to 3 meters) |
| Temperature | -40° to 158° F (-40° to 70° C) |
| Humidity | 0 to 100% operating |
| Protection | NEMA-4X, NEMA 6P, IP68 |
| Transducer | Chemically isolated piezoelectric |
| Compensation | Temperature-compensated SenixVIEW selected options |
| Resolution | Serial data: 0.0034 in. (0.086 mm) Analog steps: 4099 (0-10 VDC), 3279 (4-20 mA) |
| Repeatability | Nominal 0.2% of range @ constant temp. Affected by target, distance, environment |
| Update Rate | 20 Hz (50 ms), SenixVIEW adjustable; affected by SenixVIEW filter selections |
Outputs
| Voltage Output | 0-10, 0-5 VDC or SenixVIEW customized Maximum output current 10 mA |
| Current Loops (x 2) |
Two 4-20 mA current loops: Current sourcing and current sinking Max loop resistance 450 ohms each SenixVIEW customized Both share calibration parameters |
| Switches (x 2) |
Two switches, SenixVIEW customized 150 mA max @ 40 VDC max SenixVIEW selected as sinking (NPN) or sourcing (PNP) Adjustable setpoint, polarity, hysteresis, ON timing, OFF timing |
| Serial Data Interface | Modbus & streaming protocols 9600-115200 baud (configurable) 8 data bits, 1 stop, no parity RS-485 permits multi-sensor networks The part number determines the interface |
Mechanical
| Housing | Injection moulded, chemically resistant Polyvinylidene fluoride (PVDF) Also known as Kynar, a registered tradename of Arkema Inc. |
| Mounting | Top mount: 1-inch NPT Bottom: 1-1/2 in. NPT |
| Cable | Potted into the sensor, pigtail termination 6.5 feet (2 meters), PUR jacketed Custom lengths available Standard models: 9-wire shielded + drain Serial data-only models: 4-wire + drain, dual twisted shielded pair |
| Weight | 21.2 oz. (0.60 kg) Weight includes 6.5 ft (2 meter) cable |
Specifications are subject to change without notice.
For more information please click here:
Manual
Data Sheet
Arkema Kynar Chemical Resistance Chart
3D Models
