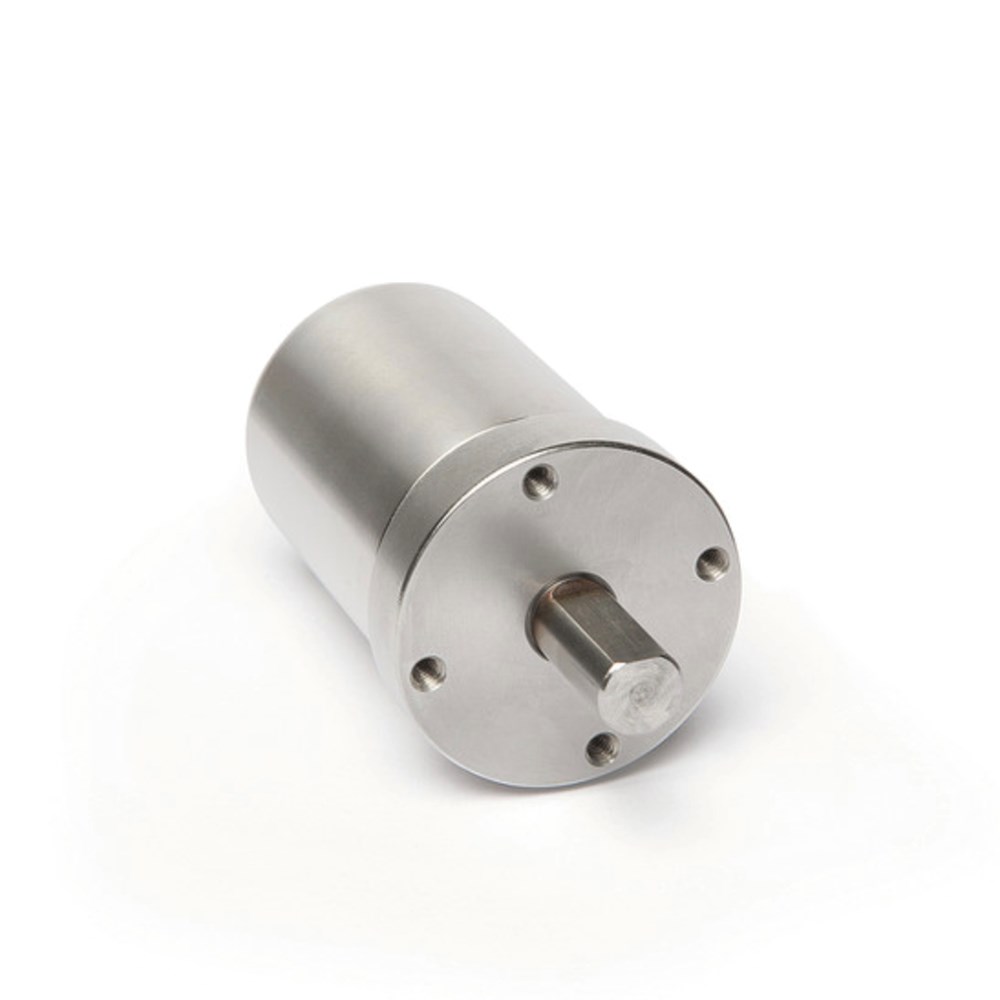

Siko WV42HD Absolute encoder
Product Information
Magnetic absolute multi-turn rotary encoder in heavy-duty stainless-steel design – batteryless, robust and flexible. The WV42HD is predestined for demanding measuring jobs in the heavy-duty area owing to its extremely robust housing, its bearings, which are designed to tolerate high radial and axial loads as well as its high resistance against external impact.
- Heavy-duty design in stainless steel
- Compact design (42 mm diameter)
- IP6K9K, IP68 protection class
- Resistant to salt spray and acids
- CANopen interface, SSI, analog
- Multi-turn without battery
- High shaft loadability of up to 270 N
- 16 bit mult-iturn (65536 revolutions)
- 13 bit single-turn (8192 revolutions)
Mechanical data
| Feature | Technical data | Additional information |
|---|---|---|
| Shaft | stainless steel | |
| Flange | stainless steel | |
| Housing | stainless steel | |
| Speed | ≤12000 rpm | |
| Starting torque | ≤4 Ncm |
at 25 °C |
| Shaft load rating | axial ≤270 N | |
| radial ≤270 N | ||
| Weight | ~0.35 kg |
Electrical data
Transducer, power output
| Feature | Technical data | Additional information |
|---|---|---|
| Operating voltage | 8 … 32 V DC | 4 … 20 mA |
| Current consumption | typical 20 mA@ 24 V (idling) | 4 … 20 mA |
| Linearity | 0.15 % | 4 … 20 mA |
| Load | RL <500 Ω | 4 … 20 mA, load against ground GND |
| Accuracy | ±0.09° | singleturn, 4 … 20 mA |
| Starting time | <500 ms | 4 … 20 mA |
| Settling time | 32 ms | 4 … 20 mA |
Transducer, voltage output
| Feature | Technical data | Additional information |
|---|---|---|
| Operating voltage | 8 … 32 V DC | 0 … 10 V |
| Current consumption | typical 15 mA | 0 … 10 V |
| Linearity | 0.15 % | 0 … 10 V |
| Load | RL >5 kΩ | 0 … 10 V, load against ground GND |
| Accuracy | ±0.09° | singleturn, 0 … 10 V |
| Starting time | <500 ms | 0 … 10 V |
| Settling time | 32 ms | 0 … 10 V |
CANopen interface
| Feature | Technical data | Additional information |
|---|---|---|
| Operating voltage | 9 … 30 V DC | reverse polarity protected |
| Power input | ≤1.2 W | |
| Interface |
according to ISO 11898, galvanically isolated |
CANopen (DS406) |
| Address | adjustable | via SDO or Layer Setting Service (LSS) |
| Baud rate | ≤1 Mbit/s | |
| Cycle time | ≥1 ms |
SSI interface
| Feature | Technical data | Additional information |
|---|---|---|
| Operating voltage | 4.5 … 30 V DC |
reverse polarity protected |
| Power input | ≤1 W | |
| SSI clock speed input | 100 kHz … 2 MHz | |
| Interface |
line driver to RS422 |
|
| Cycle time | ≥25 µs |
System data
| Feature | Technical data | Additional information |
|---|---|---|
| Resolution | 13
bit (analog output) |
over the programmed measuring range |
| 13
bit (singleturn) |
current/voltage output | |
| 12 bit (single turn) | CANopen, SSI | |
| Measuring range | ≥11.5° | |
| ≤1 revolution(s) |
singleturn |
|
| ≤65536 revolution(s) |
multiturn |
|
| 16 revolution(s) |
factory setting (multiturn) |
Ambient conditions
| Feature | Technical data | Additional information |
|---|---|---|
| Ambient temperature | -40 … 85 °C | |
| Storage temperature | -40 … 85 °C | |
| Relative humidity | 98 % | condensation inadmissible |
| EMC | EN 61000-6-2 | interference resistance / immission |
| EN 61000-6-4 |
emitted interference / emission |
|
| Protection category | IP68 | EN 60529 |
| IP6K9K | ISO 20653 | |
| Shock resistance | ≤3000 m/s2, 6 ms | EN 60068-2-27 |
| Vibration resistance | ≤300 m/s2, 10 Hz … 1 kHz | EN 60068-2-6 |
Ordering table
| Feature | Order data | Specifications | Additional information |
|---|---|---|---|
| Interface |
ACAN |
CANopen (DS406) | |
|
MWI |
4 … 20 mA | ||
|
MWU |
0 … 10 V | ||
|
SSI/B |
SSI binary | ||
|
SSI/G |
SSI gray | ||
| Number of revolutions |
B1 |
singleturn | |
|
8192 |
13 bit | only SSI or CAN | |
|
65536 |
16 bit | only MWI or MWU | |
Ordering key
WV42HD-A-B-M12
For more information, click here!
- Data sheet
- User Information
- User manual CANopen
- Setup Package
- 3D-CAD model
- EU-conformity declarations
Pin assignment
MWI/MWU interface
| Signal | PIN |
|---|---|
| Iout/Uout | 1 |
| +UB | 2 |
| GND | 3 |
| Set 2 | 4 |
| Set 1 | 5 |
CAN interface
| Signal | PIN |
|---|---|
| CAN_GND | 1 |
| +UB | 2 |
| GND | 3 |
| CAN_H | 4 |
| CAN_L | 5 |
SSI interface
| Signal | PIN |
|---|---|
| GND | 1 |
| +UB | 2 |
| SSI clock + | 3 |
| SSI clock – | 4 |
| SSI data + | 5 |
| SSI data – | 6 |
| calibration input | 7 |
| sense of rotation | 8 |
Scope of delivery
- WV42HD
