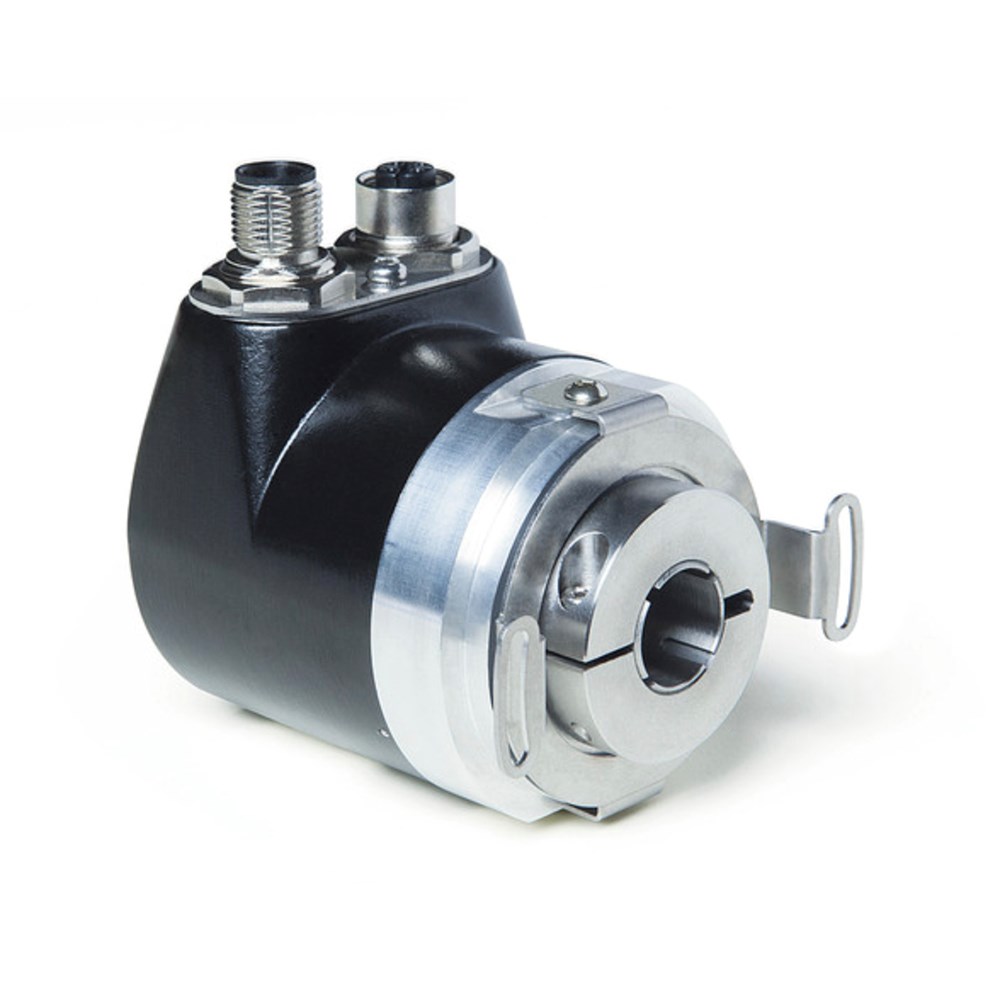

Siko WH58MR Absolute encoder
Product Information
The WH58MR rotary encoder is a magnetic safety rotary encoder with redundant position detection and hollow shaft, which has been specially developed for use in mobile machines. It can be used in safety-critical applications – up to performance level PLd. Thanks to its particularly robust design, an optionally redundant CANopen or CANopen Safety interface, it is ideally suited for tough conditions in mobile machines.
- Absolute redundant safety rotary encoder
- Interface CANopen Safety or CANopen redundant
- Suitable for applications up to Performance Level PLd
- Hollow shaft to ø 15 mm
- Salt-spray resistant housing available
- High electro-magnetic compatibility
- IP67 protection class
- With PURE.MOBILE technology
Mechanical data
| Feature | Technical data | Additional information |
|---|---|---|
| Shaft |
stainless steel |
|
| Flange | aluminum | |
| Housing |
die-cast aluminum |
CDP-coated |
| Speed | ≤3000 rpm | |
| Moment of inertia | ≤110 gcm2 | |
| Starting torque | ≤3 Ncm | at 20° C |
| Shaft load rating | ≤80 N |
radial |
| ≤40 N | axial | |
| Cable sheath | PVC | E1 connection type |
Electrical data
| Feature | Technical data | Additional information |
|---|---|---|
| Operating voltage | 8 … 36 V DC | reverse polarity protected |
| Current consumption | 20 mA | at 36 V, per encoder |
| 28 mA | at 24 V DC, per encoder | |
| 76 mA | at 8 V, per encoder | |
| Power input | ≤800 mW |
without load, per encoder |
| Parameter storage | 105 cycles | also applies to calibration operations |
| Status display |
2x tricolor LEDs (red/green/yellow) |
device status/CAN status |
| Power rating | ±60 V | CAN interface |
| Interface | according to ISO 11898, not galvanically isolated | CANopen, CiA 301, CiA 303, CiA 305, CiA 406 |
| according to ISO 11898-1/2, not galvanically isolated | CANopen Safety, CIA 301, CIA 303, CIA 305, CIA 406, EN 50325-5 | |
| Address | 1 … 127 | Node ID, via SDO or Layer Setting Service (LSS) |
| Baud rate | 20 kbit/s | |
| 50 kbit/s | ||
| 125 kbit/s | ||
| 250 kbit/s | ||
| 500 kbit/s | ||
| 800 kbit/s | ||
| 1 Mbit/s | ||
| Cycle time | typical 1.5 ms | |
| Starting time | <150 ms | |
| Type of connection | 1x M12 connector (A-coded) | 5-pole, 1x pin (E12E connection type), fieldbus and supply internally connected |
| 2x M12 connector (A-coded) | 5-pole, 1x pin; 1x socket (E12 connection type), fieldbus and supply internally connected | |
| 2x M12 connector (A-coded) | 5-pole, 2x pin (E12EE connection type), fieldbus and supply internally separated | |
| open cable end | E1 type of connection, fieldbus and supply internally connected |
System data
| Feature | Technical data | Additional information |
|---|---|---|
| Scanning |
magnetic |
|
| Resolution | 14 bit | singleturn, 16384 steps/revolution |
| Measuring range | 1 revolution(s) | singleturn |
| 4096 revolution(s) | ||
| Failure rate | 206.1 year(s) | at 40° C (MTTF) acc. to SN29500 |
| 580 year(s) |
at 60° C (MTTFd) each channel |
|
| 196 AT | at 60° C (PFH) 1 FIT = 1.0 E – 09 1/h | |
| Error detection | 77 % |
at 60° C (DCavg) according to ISO13849-1, Appendix E.2 |
| Approval | E1 | UN ECE R10 Approval No.: E1*10R05/01*8898*00 |
Ambient conditions
| Feature | Technical data | Additional information |
|---|---|---|
| Ambient temperature | -40 … 85 °C | |
| Storage temperature | -40 … 85 °C | |
| Relative humidity | 100 % |
condensation admissible |
| EMC |
EN 61000-6-2 |
interference resistance / immission |
|
EN 61000-6-4 |
emitted interference / emission |
|
| ISO 7637-1, -2 | transient pulses | |
| ISO / TR 10605 | electrostatic discharge (ESD) | |
| Protection category |
IP67 |
EN 60529 |
| Salt spray test | severity level 3 | EN 60068-2-52 (ambient condition SN) |
| Shock resistance | 500 m/s2, 11 ms |
EN 60068-2-27, half-sine, 3 axes (+/-), each 3 shocks |
| Vibration resistance | 100 m/s2, 10 … 2000 Hz | EN 60068-2-6, 3 axes, each 10 cycles |
Ordering table
| Feature | Order data | Specifications | Additional information |
|---|---|---|---|
| Interface/protocol |
ACAN |
CANopen | |
|
CANs |
CANopen Safety | ||
| Number of revolutions |
B1 |
singleturn | |
|
4096 |
12 bit | ||
| Hollow shaft/diameter |
C… |
10, 12, 15 in mm | |
| Ambient conditions |
DS |
standard | |
|
SN |
salt spray tested housing | ||
| Type of connection |
EE1 |
open cable ends | |
|
E12 |
Bus IN/Bus OUT | 2x M2x M12, 5-pin A-coded, fieldbus and supply internally connected | |
|
E12E |
Bus IN | 1x M12, 5-pin A-coded, fieldbus and supply internally connected | |
|
E12EE |
Bus IN/Bus IN | 2x M12, 5-pin A-coded, fieldbus and supply internally connected | |
| Cable length |
F… |
01.0, 02.0, 03.0, 05.0, 10.0 in m | |
|
OK |
without cable | ||
| Option |
GO |
without | |
|
DIP |
rotary switch, address, baud rate | only with CANopen, CANopen Safety | |
|
IK1 |
inclination sensor, 1 axis | ||
|
IK1R |
redundant inclination sensor, 1 axis | ||
Ordering key
WH58MR-A-16384-B-C-D-IP67-R-E-F-SW-G
For more information, click here!
- Data sheet
- Quick Start Guide
- Installation Instructions
- User manual CANopen
- User manual CANopen-Safety
- Setup Package
- 3D-CAD model
- Certificate E1
- CRC Calculation Encoder
Option, PURE.MOBILE sensor module
inclination sensor
| Feature | Technical data | Additional information |
|---|---|---|
| Resolution | 0.01° | |
| Measurement range | 360° | 1 axis |
| ±180° | 1 axis | |
| Accuracy | ±0.1° | at 20° C |
| ±0.8° | over the entire temperature and max. measurement range | |
| Zero point accuracy drift max. | ±0.02°/K | |
| Zero point accuracy drift typical | ±0.008°/K | |
| Cut-off frequency | 10 Hz |
Pin assignment
E12, E12E, E12EE
| Signal | PIN |
|---|---|
| CAN_GND | 1 |
| +UB | 2 |
| GND | 3 |
| CAN_H | 4 |
| CAN_L | 5 |
E1
| Signal | Cable color E1 |
|---|---|
| CAN_GND | white |
| +UB | brown |
| GND | green |
| CAN_H | yellow |
| CAN_L | gray |
Scope of delivery
- WH58MR
- Quick Start Guide
