Siko Translation module ASA510H
Siko Translation module ASA510H
Sku: SIK-ASA510H

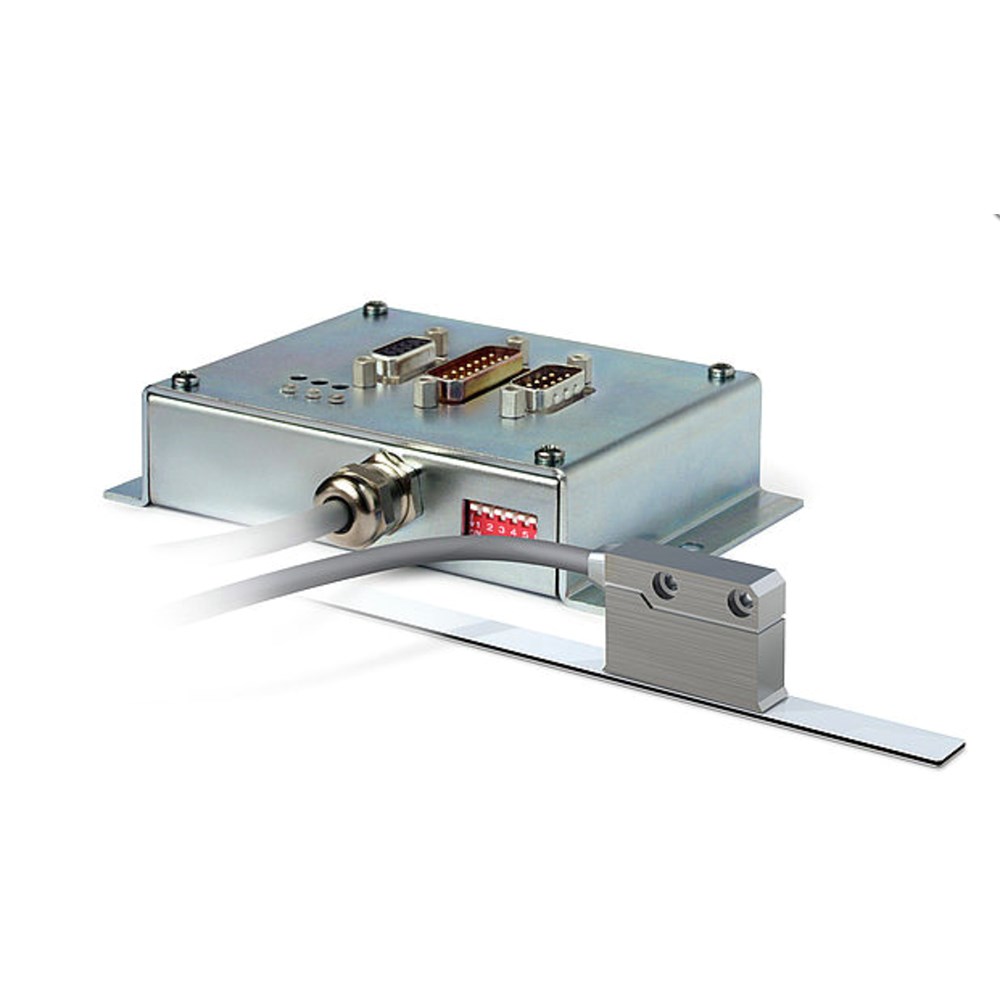

Quasi-absolute, battery-buffered translation module
Product Information
- Max. resolution 1 μm (LD)
- Repeat accuracy ±0.005 mm
- SSI or RS485 interface
- Scale MB500/1
- Reading distance ≤2 mm
- Compact, absolutely measuring unit with hard-wired sensor
- Max. measuring length ±655 m (RS485)
- Maintenance-free backup battery
- Option: digital LD interface
- Option: analog 1 VSS or 2.2 VSS interfaces (5 mm period length)
Mechanical data
| Feature | Technical data | Additional information |
|---|---|---|
| Housing |
steel sheet |
electrogalvanized |
| zinc die-cast |
sensor |
|
| Cable length | ≤6 m | |
| Cable sheath |
PVC suitable for drag-chain use |
≥1.000.000 with bending radius = 8x cable diameter and 20 °C |
Travel speed
| Travel speed Vmax April | ||||||
|---|---|---|---|---|---|---|
| Resolution [µm] | 1 | 4.00 | 1.60 | 0.72 | 0.32 | 0.12 |
| 5 | 8.00 | 8.00 | 3.60 | 1.60 | 0.62 | |
| 10 | 8.00 | 8.00 | 7.20 | 3.20 | 1.25 | |
| 12.5 | 8.00 | 8.00 | 8.00 | 4.00 | 1.60 | |
| Pulse interval [μs] | 0.2 | 0.5 | 1.1 | 2.5 | 6.3 | |
| Counting frequency [kHz] | 1250.00 | 500.00 | 230.00 | 100.00 | 40.00 | |
Electrical data
| Feature | Technical data | Additional information |
|---|---|---|
| Operating voltage | 24 V DC ±20 % |
reverse polarity protected |
| Current consumption | <150 mA | |
| Battery service life | 10 year(s) |
at TU = 20 °C, according to manufacturer specification |
System data
| Feature | Technical data | Additional information |
|---|---|---|
| Resolution | 5 µm or 10 µm |
SSI, selectable via DIP switch |
| ≤1 µm | LD | |
| 5 mm
period length |
1Vss | |
| System accuracy | ±(0.025 + 0.01 x L) mm, L in m |
at TU = 20 °C (L = length per meter or part thereof) |
| Repeat accuracy | ±1 increment(s) | (5 µm / 10 µm) |
| Measuring range | ±655000 mm | |
| Travel speed | ≤5 m/s |
SSI absolute value |
| ≤8 m/s |
Ambient conditions
| Feature | Technical data | Additional information |
|---|---|---|
| Ambient temperature | 0 … 60 °C | |
| Storage temperature | -20 … 70 °C | |
| Relative humidity | ≤95 % |
translation module, condensation inadmissible |
| ≤100 % |
sensor, condensation admissible |
|
| EMC | EN 61000-6-2 | interference resistance / immission |
| EN 61000-6-4 |
emitted interference / emission |
|
| Protection category | IP20 |
EN 60529 (translation module) |
| IP67 |
EN 60529 (sensor) |
Ordering table
| Feature | Order data | Specifications | Additional information |
|---|---|---|---|
| Cable length |
A… |
01.0 … 06.0 m, in intervals of 1 m | |
| Digital interface |
BLD |
Line Driver (RS422) | |
|
O |
without | ||
| Digital resolution |
C… |
1, 10, 12.5, 5 in µm | |
| Pulse interval |
D… |
0.2, 0.5, 1.1, 2.5, 6.3 in µs | |
| Analog interface |
E1Vss |
1 VSS | |
|
2.2Vss |
2.2 VSS | ||
|
O |
without | ||
Ordering key
ASA510H-AM-A-B-C-D-E-S
Pin assignment
Connector X1
| SSI | PIN |
|---|---|
| nc | 1 |
| nc | 2 |
| +24 V DC | 3 |
| 0 V | 4 |
| nc | 5 |
| nc | 6 |
| SSI_DATA | 7 |
| /SSI_DATA | 8 |
| nc | 9 |
| nc | 10 |
| nc | 11 |
| SSI_GND | 12 |
| nc | 13 |
| SSI_CLK | 14 |
| /SSI_CLK | 15 |
Connector X3
| 1 VSS | PIN |
|---|---|
| sin | 1 |
| /sin | 2 |
| cos | 3 |
| nc | 4 |
| nc | 5 |
| nc | 6 |
| ANA_GND | 7 |
| /cos | 8 |
| nc | 9 |
Connector X2
| RS485 | RS485 + LD | PIN |
|---|---|---|
| nc | A | 1 |
| nc | B | 2 |
| nc | nc | 3 |
| +24 V DC | +24 V DC | 4 |
| 0 V | 0 V | 5 |
| nc | /A | 6 |
| nc | /B | 7 |
| DÜA | DÜA | 8 |
| DÜB | DÜB | 9 |
Hint for mounting
| A, Sensor/tape reading distance | ≤2 mm |
| B, Lateral offset | ±1 mm |
| C, Alignment error | ±3° |
| D, Longitudinal inclination | ±2° |
| E, Lateral inclination | ±2° |
Symbolic representation
Scope of delivery
- ASA510H
- User information
- grounding material
- Sensor fastening set
