Siko SGH10L
Siko SGH10L
Sku: SIK-SGH10L

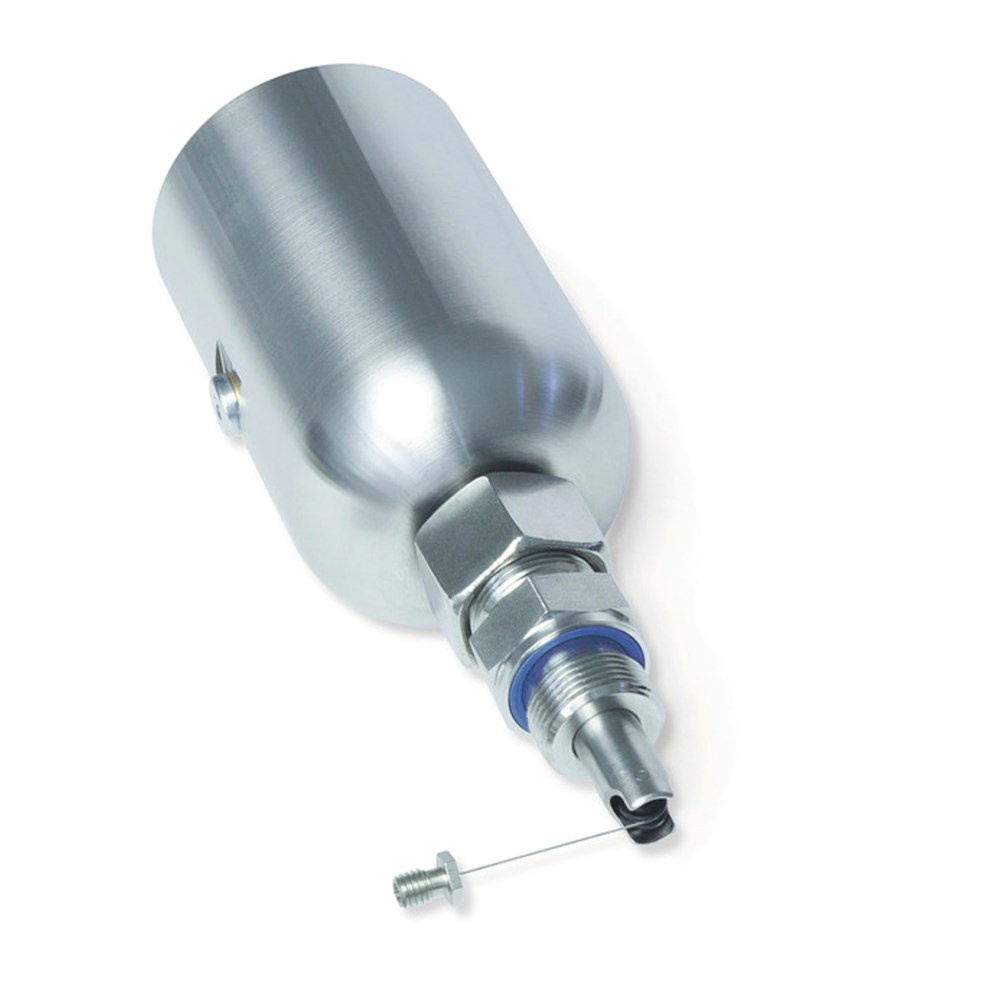

Siko Wire-actuated encoder SGH10L | Position sensor for hydraulic cylinders for lateral mounting
Product Information

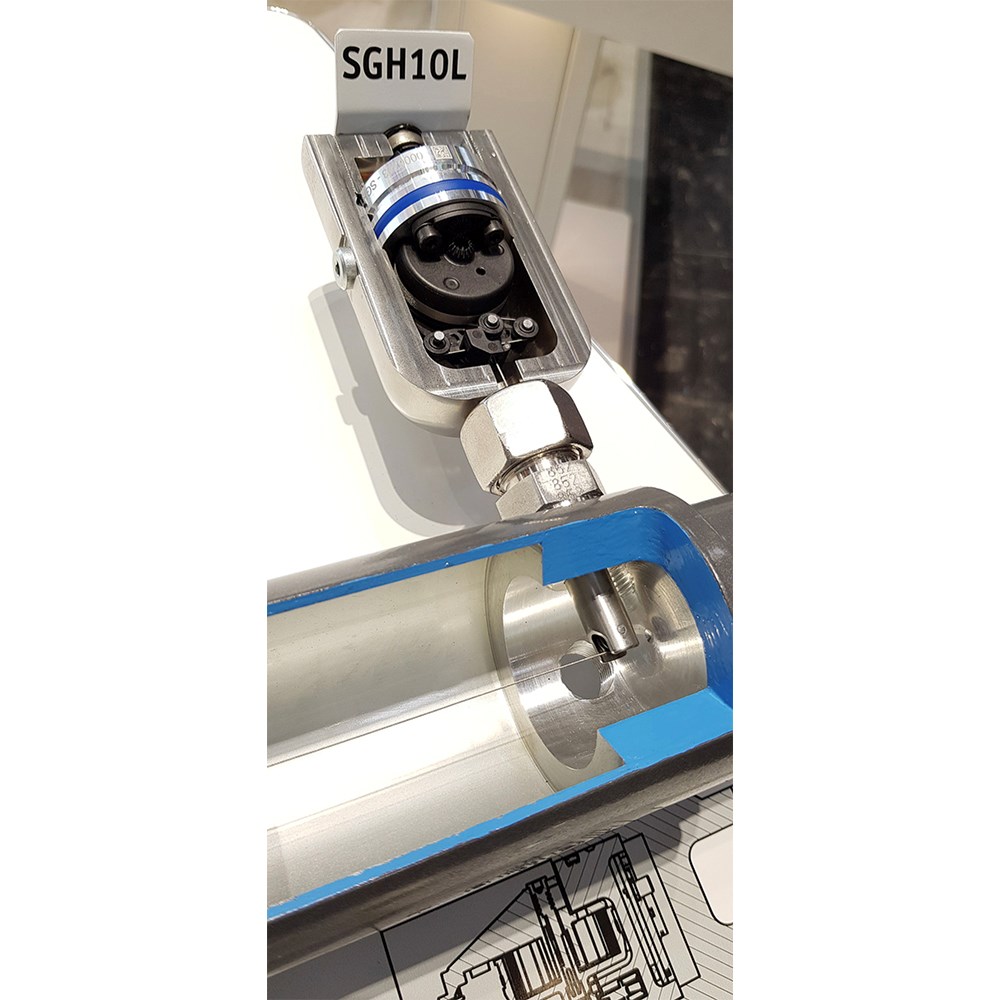

The SGH10 wire-actuated encoder measures the absolute direct cylinder stroke in a hydraulic cylinder. The new measuring system eliminates costly boring of the piston. As a result, integration costs are reduced compared to other measuring systems and a possible weakening of the piston is avoided effectively. The highlight of the SGH10L: Thanks to its unique lateral installation, the SGH10L can also be used in almost unsolvable applications, regardless of whether for applications in which no stoke lost can be accepted, extremely small piston diameters or in the case of cylinders with mechanical end position cushioning.
Profile SGH10L:
- Measuring range 0 … 1000 mm (39.37 inches)
- almost no stoke lost thanks to lateral mounting
- Absolute measuring system
- CANopen interface, analog: Current and voltage
- Operating voltage 9 … 32 VDC
- Pressure-resistant up to 350 bar, pressure peaks up to 450 bar
- High degree of flexibility, adjustable to all measuring lengths thanks to teach-in
- High electro-magnetic compatibility
- High shock and vibration resistance
- With PURE.MOBILE technology
Mechanical data
| Feature | Technical data | Additional information |
|---|---|---|
| Housing | stainless steel | V4A housing, 1.4404 uncoated |
| steel | St housing, 1.7225 not coated | |
| seal | HNBR | Sensor |
| Viton | Screw-in connector housing V4A | |
| NBR | Screw-in connector housing St | |
| Wire design | ø0.45 mm | steel rope (stainless) |
| Extension force | ≥2 N | |
| Acceleration | ≤10 m/s2 | |
| Weight | ~2.1 kg | V4A housing without spacer tube |
| ~2 kg | St housing without spacer tube |
Electrical data
Analog interface
| Feature | Technical data | Additional information |
|---|---|---|
| Operating voltage | 9 … 32 V DC | with output 0 … 5 V, 0.5 … 4.5 V, 0.25 … 4.75 V, 1.0 … 4.9 V, reverse polarity protected |
| 12 … 32 V DC | with output 0 … 10 V, reverse polarity protected | |
| 12 … 32 V DC | with output 0 … 20 mA, but UB > Uload +2.0 V, 4 … 20 mA, reverse polarity protected | |
| Current consumption | <32 mA | without load |
| Power input | <0.5 W |
without load |
| Digital inputs | 2 | limit inputs |
| Input signal level high | >8.4 V | |
| Input signal level low | <2.8 V | |
| Output voltage | 0 … 10 V | load current <10 mA |
| 0 … 5 V | load current <10 mA | |
| 0.5 … 4.5 V | load current <10 mA | |
| 0.25 … 4.75 V | load current <10 mA | |
| 1 … 4.9 V | load current <10 mA | |
| Output current | 0 … 20 mA | load ≤500 Ω |
| 4 … 20 mA |
load ≤500 Ω |
|
| Linearity tolerance | ±0.25 % | 1000 mm measurement length |
| ±0.5 % | 500 mm measurement length | |
| Settling time | <150 ms | |
| Type of connection | 1x M12 plug connector (A-coded) | 5-pole, 1x pin |
CANopen interface
| Feature | Technical data | Additional information |
|---|---|---|
| Operating voltage | 10 … 30 V DC | reverse polarity protected |
| Power input | <0.8 W | |
| Parameter storage | 105 cycles | also applies to calibration operations |
| Linearity tolerance | ±0.25 % | 1000 mm measurement length |
| ±0.5 % | 500 mm measurement length | |
| Interface | according to ISO 11898, not isolated | CANopen, CiA 301, CiA 305, CiA 406 |
| Address | 1 … 127 | Node-ID, per SDO or Layer Setting Service (LSS) |
| Baud rate | ≤1 Mbit/s | |
| Cycle time | typical 1.5 ms | |
| Settling time | <150 ms | |
| Type of connection | 1x M12 plug connector (A-coded) | 5-pole, 1x pin |
System data
| Feature | Technical data | Additional information |
|---|---|---|
| Scanning |
magnetic |
|
| Resolution | 12 bit |
analog output |
| Repeat accuracy | ±0.15 mm | |
| Measuring range | 500 mm | measuring range flexibly usable between 0 … 500 mm |
| 1000 mm | measuring range flexibly usable between 0 … 1000 mm | |
| Travel speed | ≤1 m/s | |
| Failure rate | 235.6 year(s) | analog output, at 60 °C (MTBF) EN/IEC 61709 (SN 29500) |
| 253.3 year(s) | CANopen, at 60 °C (MTBF) EN/IEC 61709 (SN 29500) |
Ambient conditions
| Feature | Technical data | Additional information |
|---|---|---|
| Ambient temperature | -40 … 105 °C |
electronics |
| -30 … 105 °C | mechanics | |
| Storage temperature | -40 … 85 °C | |
| Relative humidity | 100 % | condensation admissible in the mounted and plugged condition |
| Operating pressure | <350 bar | Pn based on ISO19879 |
| Overload pressure | <450 bar | Pmax based on ISO 19879 |
| Test pressure | 650 bar | Pstatic based on ISO 19879 |
| EMC | EN 61326-3.1 |
immunity requirement of industry, class B emission limit |
| ISO 11452-1, -2, -3, -4, -5 | interference radiation ESA | |
| ISO 7637-1, -2 | transient pulses | |
| ISO 10605 | electrostatic discharge (ESD) | |
| Protection category | IP6K9K |
ISO 20653, fitted with suitable mating connector |
| Shock resistance | 1000 m/s2, 11 ms |
EN 60068-2-27, additional support is recommended |
| Vibration resistance | 70 m/s2, 10 Hz … 2 kHz |
EN 60068-2-64, additional support is recommended at >150 Hz |
Ordering table
| Feature | Order data | Specifications | Additional information |
|---|---|---|---|
| Measuring range |
A… |
500, 1000 in mm | |
| installation depth |
B… |
30, 36, 110, 140, 320 in mm | |
| others on request | |||
| Interface |
C0/5V |
0 … 5 V | voltage output |
|
0/10V |
0 … 10 V | voltage output | |
|
0.25/4.75V |
0.25 … 4.75 V | voltage output | |
|
0.5/4.5V |
0.5 … 4.5 V | voltage output | |
|
1.0/4.9V |
1.0 … 4.9 V | voltage output | |
|
0/20mA |
0 … 20 mA | current output | |
|
4/20mA |
4 … 20 mA | current output | |
|
CAN |
CANOpen | ||
| Housing |
DSt |
steel | |
|
V4A |
rustproof stainless steel | ||
Ordering key
SGH10L-A-B-GW6-C-D-DS-S
