Siko SGH10
Siko SGH10
Sku: SIK-SGH10

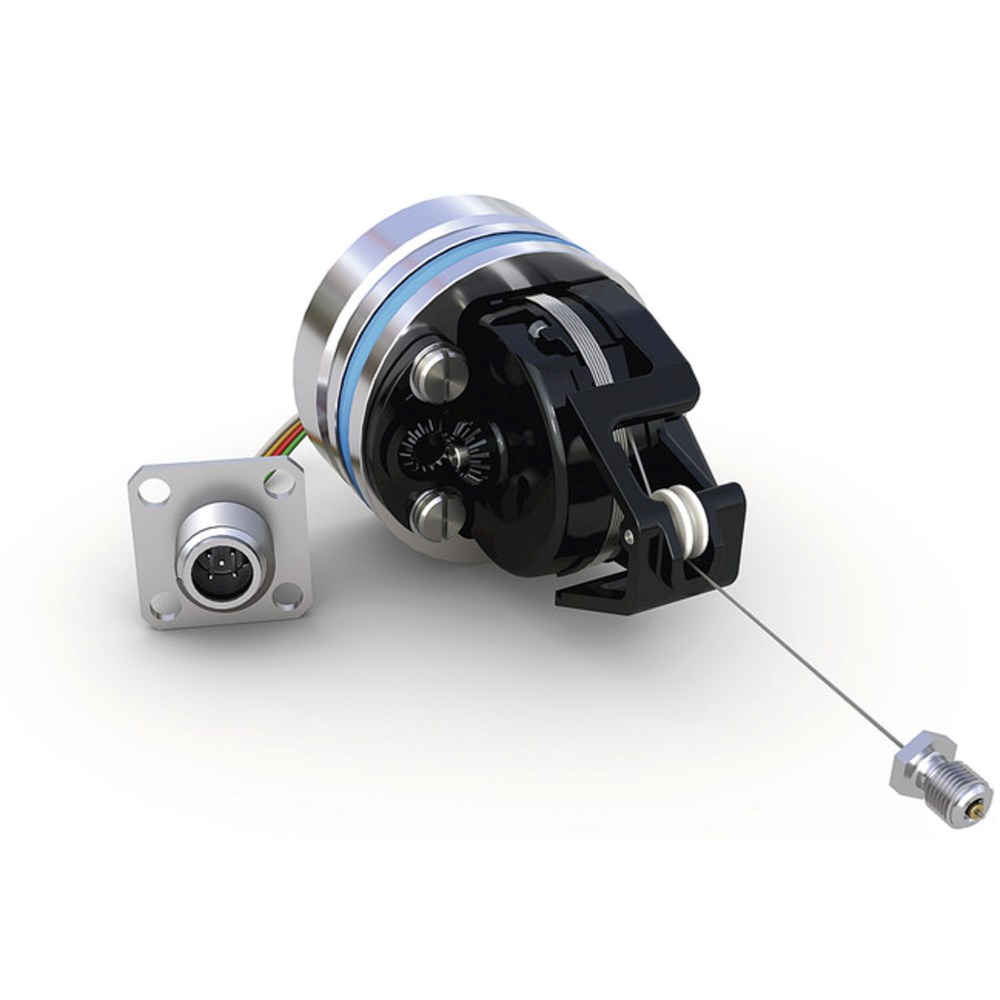

Siko Wire-actuated encoder : Position sensor for hydraulic cylinders with measuring lengths up to 1000 mm
Product Information
The SGH wire-actuated encoder measures the absolute, direct cylinder stroke in the hydraulic cylinder. Cost-intensive drilling of the piston is no longer required thanks to the new measurement system. As a result there are lower integration costs compared with other measurement systems and weakening of the piston is effectively avoided. The highlight: The measurement system can even be used in telescopic cylinders!
In the framework of SPS IPC Drives 2015, exhibition and online visitors nominated the SGH10 as the winner of the DirectIndustry i-NOVO Award in the TECH category.
- Measuring range 0 … 1000 mm (39.37 inches)
- Absolute measuring system
- CANopen interface, analog: Current and voltage
- Operating voltage 9 … 32 VDC
- Pressure-resistant up to 350 bar, pressure peaks up to 450 bar
- High degree of flexibility, adjustable to all measuring lengths thanks to teach-in
- High electro-magnetic compatibility
- High shock and vibration resistance
- With PURE.MOBILE technology
Mechanical data
| Feature | Technical data | Additional information |
|---|---|---|
| Flange | aluminum |
sealing ring (HNBR) |
| Housing |
synthetic |
PA66 |
| Wire design | ø0.45 mm | steel rope (stainless) |
| Extension force | ≥2 N | |
| Acceleration | ≤10 m/s2 | |
| Weight | ~0.15 kg |
Electrical data
Analog interface
| Feature | Technical data | Additional information |
|---|---|---|
| Operating voltage | 9 … 32 V DC | with output 0 … 5 V, 0.5 … 4.5 V, 0.25 … 4.75 V, 1.0 … 4.9 V, reverse polarity protected |
| 12 … 32 V DC | with output 0 … 10 V, reverse polarity protected | |
| 12 … 32 V DC |
with output 0 … 20 mA, 4 … 20 mA, reverse polarity protected |
|
| Current consumption | <32 mA | without load |
| Power input | <0.5 W |
without load |
| Parameter storage | 105 cycles | also applies to calibration operations |
| Digital inputs | 2 | limit inputs |
| Input signal level high | >8.4 V | |
| Input signal level low | <2.8 V | |
| Output voltage | 0 … 10 V | load current <10 mA |
| 0 … 5 V | load current <10 mA | |
| 0.5 … 4.5 V | load current <10 mA | |
| 0.25 … 4.75 V | load current <10 mA | |
| 1 … 4.9 V | load current <10 mA | |
| Output current | 0 … 20 mA | load ≤500 Ω |
| 4 … 20 mA |
load ≤500 Ω |
|
| Linearity tolerance | ±0.25 % | 1000 mm measurement length |
| ±0.5 % | 500 mm measurement length | |
| Settling time | <150 ms | |
| Type of connection | plug connection system | KV1H accessory |
CANopen interface
| Feature | Technical data | Additional information |
|---|---|---|
| Operating voltage | 10 … 30 V DC | reverse polarity protected |
| Power input | <0.8 W | |
| Parameter storage | 105 cycles | also applies to calibration operations |
| Linearity tolerance | ±0.25 % | 1000 mm measurement length |
| ±0.5 % | 500 mm measurement length | |
| Interface |
according to ISO 11898-1/2, not galvanically isolated |
CANopen, CiA 301, CiA 305, CiA 406 |
| Address | 1 … 127 | Node ID, via SDO or Layer Setting Service (LSS) |
| Baud rate | ≤1 Mbit/s | |
| Cycle time | typical 1.5 ms | |
| Settling time | <150 ms | |
| Type of connection | plug connection system | KV1H accessory |
System data
| Feature | Technical data | Additional information |
|---|---|---|
| Scanning |
magnetic |
|
| Resolution | 12 bit |
analog output |
| Repeat accuracy | ±0.15 mm | |
| Measuring range | 500 mm | measuring range flexibly usable between 0…500 mm |
| 1000 mm | measuring range flexibly usable between 0…1000 mm | |
| Travel speed | ≤1 m/s | |
| Failure rate | 235.6 year(s) |
analog output, at 60° C (MTBF) |
| 253.3 year(s) |
CANopen, at 60° C (MTBF) |
|
| Approval | E1 compliant | UN ECE R10 Approval number: E1*10R05/01*8507*00 |
Ambient conditions
| Feature | Technical data | Additional information |
|---|---|---|
| Ambient temperature | -40 … 105 °C |
electronics |
| -30 … 100 °C | Mechanics, optionally to 105° C | |
| Storage temperature | -40 … 85 °C | |
| Relative humidity | 100 % | condensation admissible in the mounted and plugged condition |
| Operating pressure | <350 bar | Pn based on ISO19879 |
| Overload pressure | <450 bar | Pmax based on ISO 19879 |
| Test pressure | 650 bar | Pstatic based on ISO 19879 |
| EMC | EN 61326-3.1 |
immunity requirement of industry, class B emission limit |
| ISO 11452-1, -2, -3, -4, -5 | Interference radiation ESA | |
| ISO 7637-1, -2 | Transient pulses | |
| ISO 10605 | Electrostatic discharge (ESD) | |
| Protection category | IP6K9K |
ISO 20653, fitted with KV1H and suitable mating connector |
| Shock resistance | 1000 m/s2, 11 ms |
EN 60068-2-27 |
| Vibration resistance | 70 m/s2, 10 Hz … 2 kHz |
EN 60068-2-64 |
Ordering table
| Feature | Order data | Specifications | Additional information |
|---|---|---|---|
| Measuring range |
A… |
500, 1000 in mm | |
| Interface |
B0/5V |
0 … 5 V | voltage output |
|
0/10V |
0 … 10 V | voltage output | |
|
0.25/4.75V |
0.25 … 4.75 V | voltage output | |
|
0.5/4.5V |
0.5 … 4.5 V | voltage output | |
|
1.0/4.9V |
1.0 … 4.9 V | voltage output | |
|
0/20mA |
0 … 20 mA | current output | |
|
4/20mA |
4 … 20 mA | current output | |
|
CAN |
CANOpen | ||
Ordering key
SGH10-A-GW6-B-M1-DS-SW
