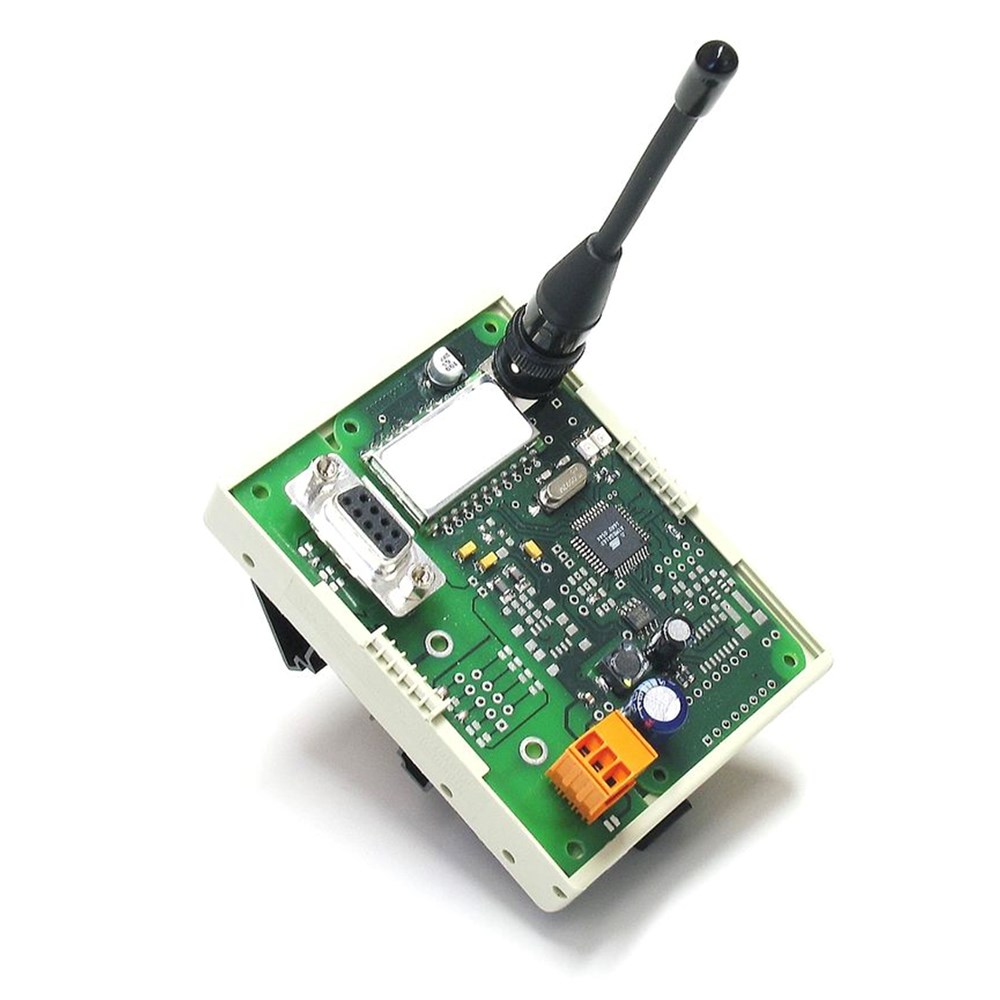

Siko Radio transmitter/receiver RTX500
Product Information
- Works with radio-based magnetic display MA503WL
- Mounting on top-hat rail or as an installation kit
- Pluggable BNC antenna
- 24 V DC supply
- RS232 or RS485 interface with ASCII-protocol
Mechanical data
| Feature | Technical data | Additional information |
|---|---|---|
| Housing |
plastic |
snap modue for top hat rail mounting |
Electrical data
| Feature | Technical data | Additional information |
|---|---|---|
| Operating voltage | 24 V DC ±20 % | |
| Power input | <1 VA | |
| Receive sensitivity | -111 dBm | |
| Interface | RS232, RS485 | |
| Radio frequency | 868 … 870 MHz | |
| 902 … 928 MHz |
USA |
|
| Type of connection |
screw terminal |
3-pole (supply) |
| D-Sub |
9-pole (signal output) |
Ambient conditions
| Feature | Technical data | Additional information |
|---|---|---|
| Ambient temperature | 0 … 60 °C | |
| Storage temperature | -20 … 70 °C | |
| Relative humidity | <95 % | condensation inadmissible |
| EMC | EN 61000-6-2 | interference resistance / immission |
| EN 61000-6-4 |
emitted interference / emission |
|
| Protection category | IP40 |
Ordering table
| Feature | Order data | Specifications | Additional information |
|---|---|---|---|
| Design |
AH |
DIN rail mounting | |
|
ES |
installation kit | ||
| Type of connection |
BBU |
9 poles, D-Sub socket | |
|
BUST |
2 x 9 poles, D-Sub socket + pin | ||
| Operating mode |
CTX |
send | |
|
RX |
receive | ||
| Interface |
DRS232 |
RS232 | |
|
RS485 |
RS485 | ||
| Software |
ES |
standard | |
|
SW03 |
bidirectional communication | ||
| Radio frequency |
F869 |
869 MHz | |
|
915 |
915 MHz | USA | |
Ordering key
RTX500-A-B-C-D-E-BNC-F
For more information, click here!
Pin assignment
Supply
| Signal | PIN |
|---|---|
| +UB | 1 |
| GND | 2 |
| PE | 3 |
RS232, 9-pole D-SUB
| Signal | PIN |
|---|---|
| nc | 1 |
| TXD | 2 |
| RXD | 3 |
| nc | 4 |
| GND | 5 |
| nc | 6 |
| nc | 7 |
| nc | 8 |
| nc | 9 |
RS485, 9-pole D-SUB
| Signal | PIN |
|---|---|
| DÜB (D-) | 1 |
| nc | 2 |
| nc | 3 |
| DÜA (D+) | 4 |
| GND | 5 |
| nc | 6 |
| nc | 7 |
| nc | 8 |
| nc | 9 |
Scope of delivery
- RTX500
- Mounting instructions
