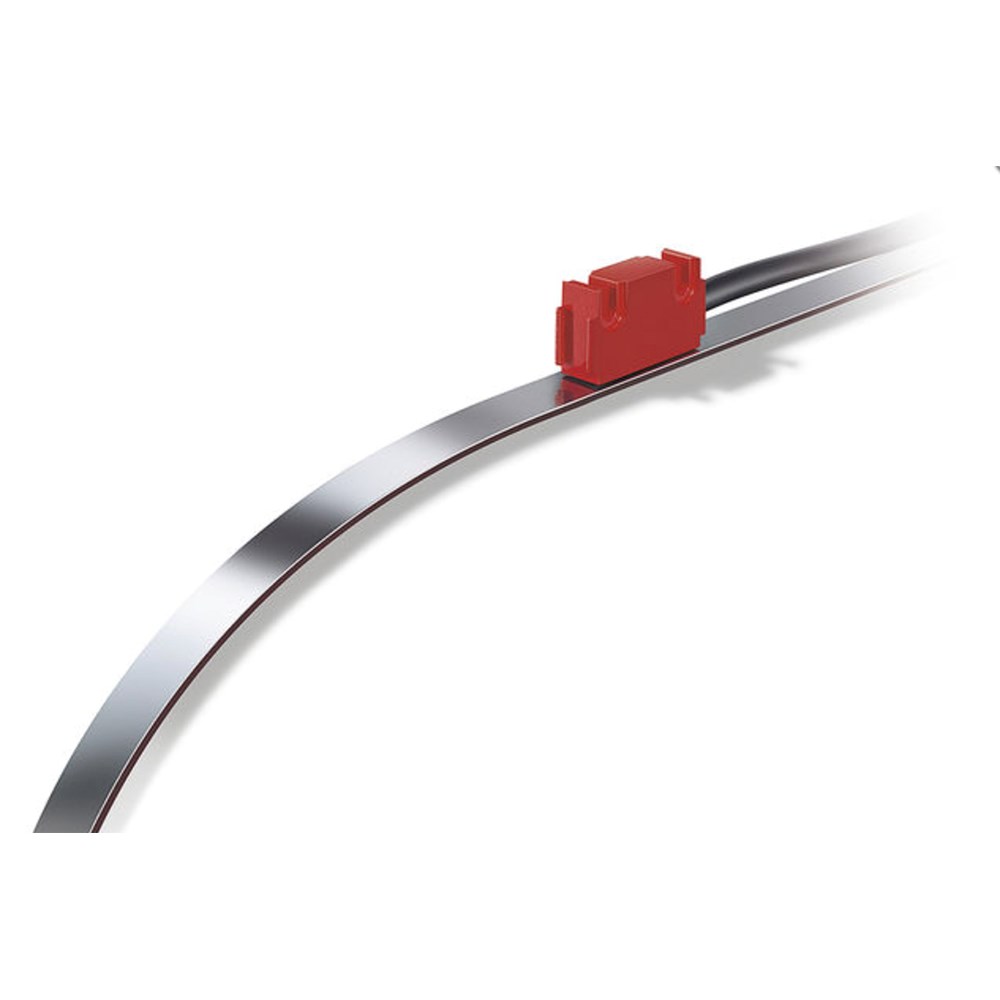

Siko Magnetic sensor MS500H
Product Information
- Compact design of sensor and connector
- To be connected to AP10S or AP20S
- To be connected to MA503/2 or MA504/1
- Works with MB500/1 magnetic tape, MR500 magnetic ring, MBR500 magnetic tape ring
- Reading distance ≤2 mm
Mechanical data
| Feature | Technical data | Additional information |
|---|---|---|
| Housing | aluminum red | L design |
|
steel |
F design |
|
| Sensor/band reading distance | 0.1 … 2 mm | |
| Cable sheath | PVC |
6-wire ø3.55-0.3 mm (E16 type of connection) |
| PUR | 6-wire ø5.2 mm (E15 type of connection) | |
| Cable bending radius | >17 mm (static) | E16 type of connection |
| ≥52 mm (dynamic) | E15 type of connection |
Electrical data
| Feature | Technical data | Additional information |
|---|---|---|
| Operating voltage | supply via measurement display / downstream electronic unit | |
| Current consumption | supply via measurement display / downstream electronic unit | |
| Type of connection | flat connector |
8-pole, 1x pin (E16) |
|
M8 plug connector |
6-pole, 1x pin (E15) |
System data
| Feature | Technical data | Additional information |
|---|---|---|
| System accuracy | depending on downstream electronic unit | |
| Repeat accuracy | depending on downstream electronic unit | |
| Travel speed | depending on downstream electronic unit |
Ambient conditions
| Feature | Technical data | Additional information |
|---|---|---|
| Ambient temperature | 0 … 60 °C | |
| Storage temperature | -20 … 70 °C | |
| Relative humidity | 100 % | Betauung zulässig (Sensorkopf) |
| Protection category | IP67 | EN 60529 (sensor head) |
| Shock resistance | 2000 m/s2, 11 ms |
EN 60068-2-27 |
| Vibration resistance | 200 m/s2, 50 Hz … 2 kHz |
EN 60068-2-6 |
Ordering table
| Feature | Order data | Specifications | Additional information |
|---|---|---|---|
| Design |
AL |
rectangular | |
|
F |
round | only with E16 type of connection | |
| Type of connection |
BE15 |
M8 plug | for AP10S and AP20S |
|
E16 |
tab connector | for MA503/2 and MA504/1 | |
| Cable length |
C… |
00.2 … 10.0 in m | only with connection type E16 |
|
… |
00.5 … 02.5 m, in intervals of 0.5 m | only with connection type E15 | |
Ordering key
MS500H-A-B-C
For more information, click here!
Hint for mounting
| A, Sensor/tape reading distance | ≤2 mm |
| B, Lateral offset | ±2 mm |
| C, Alignment error | ±3° |
| D, Longitudinal inclination | ±1° |
| E, Lateral inclination | ±3° |
The length of the cable between the sensor and connector cannot be subsequently increased or decreased.
Symbolic representation
Scope of delivery
- MS500H
- Mounting instructions
- Fastening set
