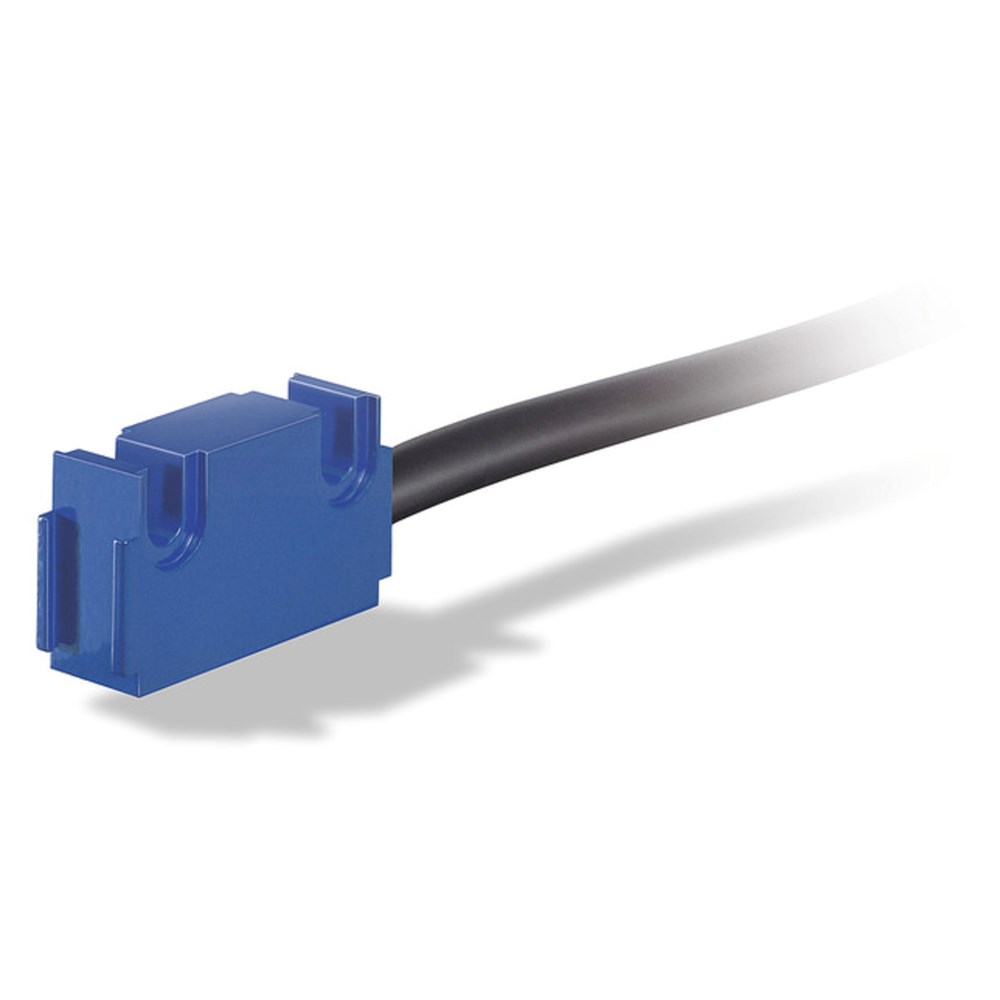

Siko Magnetic sensor MS100/1
Siko Magnetic sensor MS100/1
Sku: SIK-MS100-1
Passive sensor, incremental, for magnetic display MA100/2
Product Information
- Display accuracy max. 1 μm
- Repeat accuracy max. ±1 μm
- High-contrast LCD, 12-digit LCD dot matrix
- Incremental measurement and reset function
- Direct reference/offset value input
- Reference input
- Works with sensor MS100/1
- Option: serial interface RS232/RS485/switching output
- Option: TG01 bench housing
Mechanical data
| Feature | Technical data | Additional information |
|---|---|---|
| Housing design |
built-in housing, plastic |
switchboard cutout 92+0.8 x 45+0.6 IEC 61554 |
Electrical data
| Feature | Technical data | Additional information |
|---|---|---|
| Operating voltage | 24 V DC ±20 % | |
| 115 V AC ±10 % | ||
| 230 V AC ±10 % | ||
| Current consumption | 70 mA |
at 24 V DC |
| 20 mA |
at 115 V AC |
|
| 10 mA |
at 230 V AC |
|
| Display/display range |
12-digit, LCD dot matrix, backlit |
-9999999 … 9999999 |
| Switching outputs |
with or without |
2x 30 V ≤100 mA |
| Interface |
without, RS232, RS485 |
|
| Type of connection |
connector |
9-pole (supply, switching output, interface/reference connection) |
|
mini-DIN |
6-pole, 1x socket (MS100/1 sensor) |
System data
| Feature | Technical data | Additional information |
|---|---|---|
| Resolution | 0.001, 0.01, 0.1, 1, 10 mm |
programmable angle display |
| 0.001, 0.01, 0.1, 1 in | ||
| System accuracy | ±(0.01 + 0.01 x L) mm; L in m |
at TU = 20 °C |
| Repeat accuracy | ±0.001 mm |
±1 increment |
| Travel speed | ≤2 m/s |
Ambient conditions
| Feature | Technical data | Additional information |
|---|---|---|
| Ambient temperature | 0 … 50 °C | |
| Storage temperature | -20 … 80 °C | |
| Relative humidity | ≤95 % | condensation inadmissible |
| EMC | EN 61000-6-2 | interference resistance / immission |
| EN 61000-6-4 |
emitted interference / emission |
|
| Protection category |
IP40 whole device |
EN 60529 |
|
IP60 at the front with switchboard installation |
EN 60529 |
Ordering table
| Feature | Order data | Specifications | Additional information |
|---|---|---|---|
| Operating voltage |
A1 |
230 V AC | |
|
2 |
115 V AC | ||
|
4 |
24 V DC | ||
| Interface/protocol |
BXX/XX |
without | |
|
S1/00 |
RS232 with standard protocol | ||
|
S3/00 |
RS485 with standard protocol | ||
| Switching output |
CSO |
without | |
|
SM |
with | only with XX/XX interface | |
Ordering key
MA100/2-EG-A-RM-B-C-S-BS
For more information, click here!
- Data sheet
- Quick Start Guide
- User Information Hardware
- User Information Standard Software
- EU-conformity declarations
Pin assignment
| Signal | PIN |
|---|---|
| Reset | 1 |
| +24 V DC; ≤50 mA (reference switch) | 2 |
| GND | 3 |
| nc | 4 |
| RS232 (RXD), RS485 (DÜB), actor A2 | 5 |
| RS232 (TXD), RS485 (DÜA), actor A1 | 6 |
| PE | 7 |
| N (230/115 V AC); 0 V (24 V DC) | 8 |
| L (230/115 V AC); +UB (24 V DC) | 9 |
Scope of delivery
- MA100/2
- Mounting instructions
