Siko Electronic position indicator DE10
Siko Electronic position indicator DE10
Sku: SIK-DE10

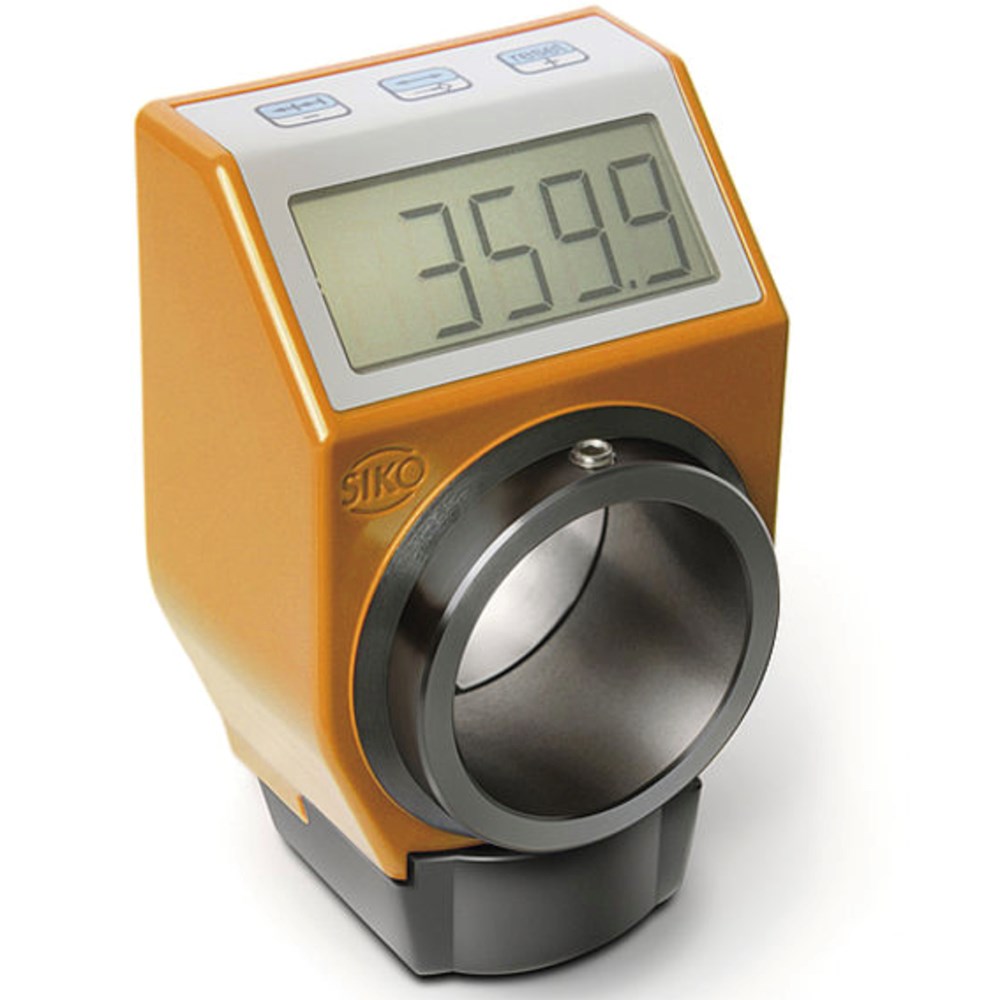

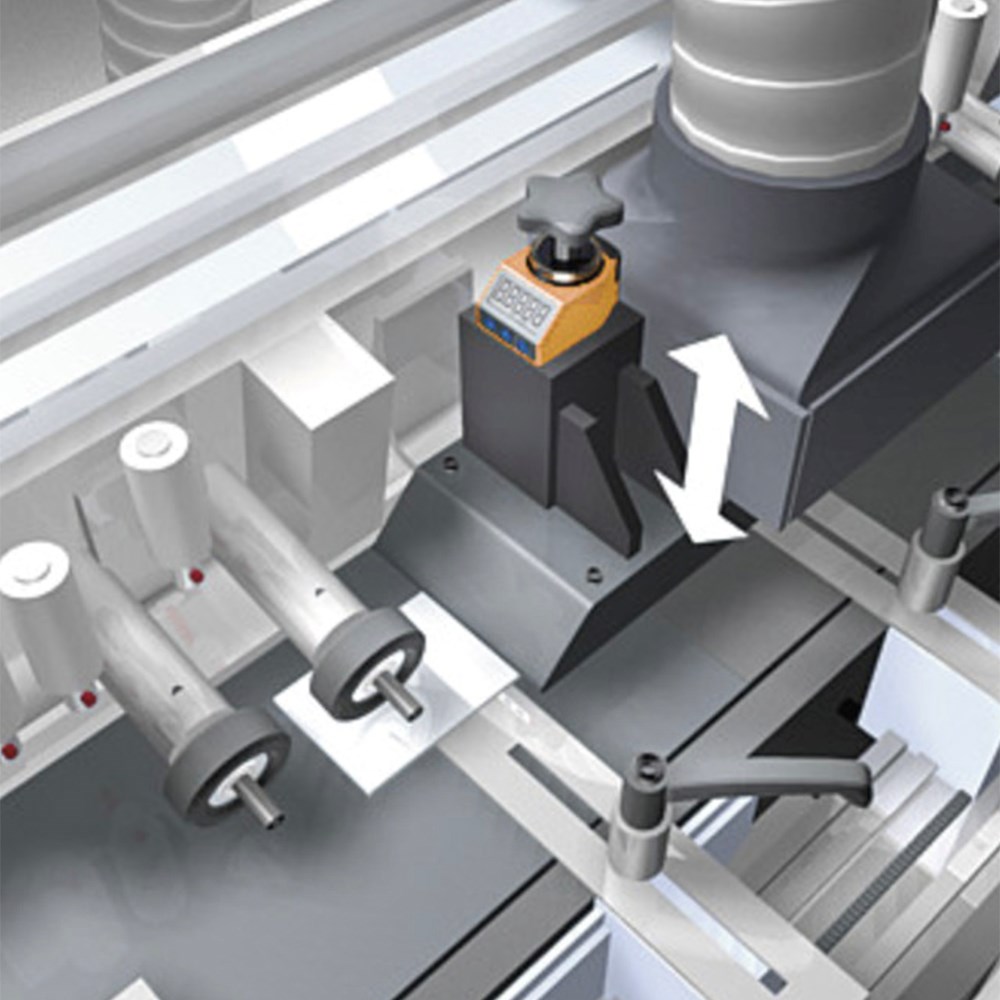

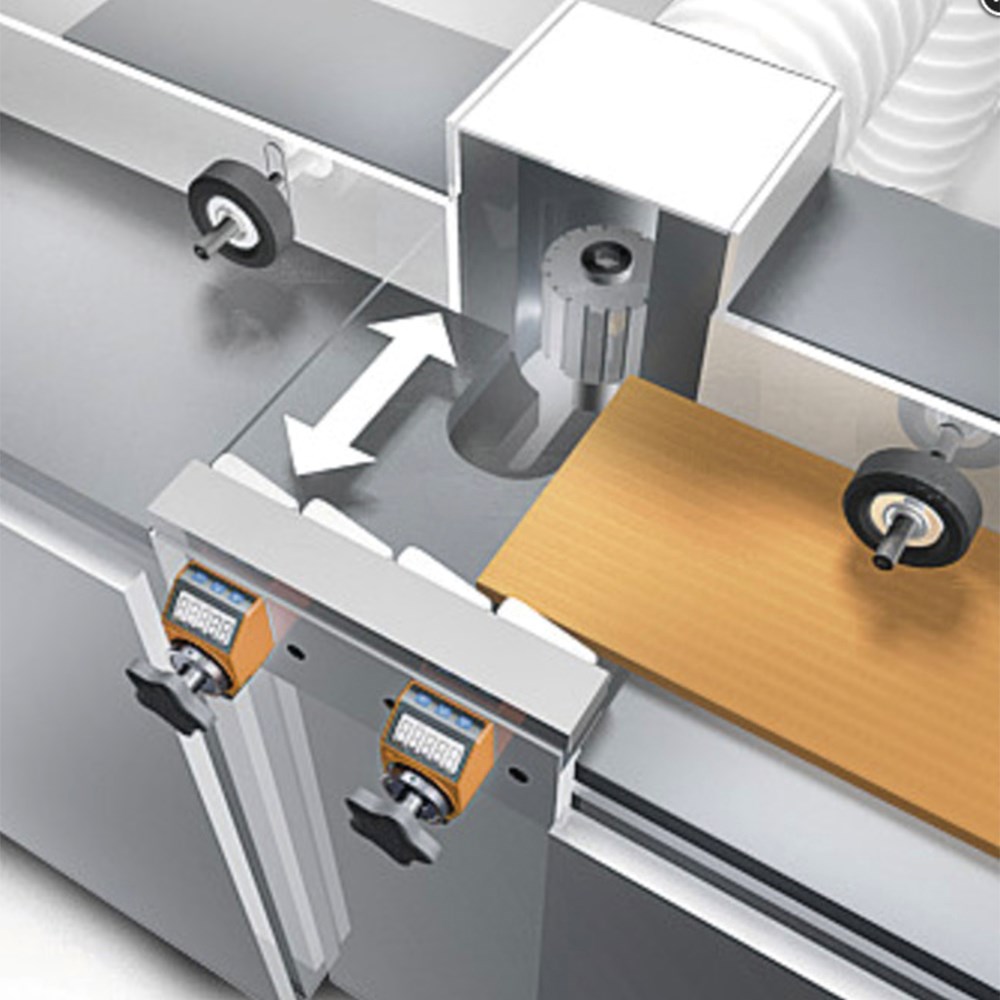

Siko Electronic position indicator DE10-For large shaft diameters
Product Information
The DE10 is a freely programmable and battery-powered position indicator. The position indicator DE04 provides maximum flexibility, since the always same basic device can be parameterized to the desired spindle pitch, display accuracy and reading position in an application-specific manner. Parameterization is conveniently performed via programming software via an external interface.
- Freely programmable electronic digital display for length or angular measurement
- Freely programmable via the ProToolDE programming software
- Hollow shaft, max. Ø 30 mm
- LCD display with 5 digits and special characters
- Digit height approx. 12 mm
- Reset, incremental measurement, offset via keyboard
- Long battery life
- Easy battery change without dismantling of the device
Mechanical data
| Feature | Technical data | Additional information |
|---|---|---|
| Shaft | black-finished steel (supported in friction bearings) | (≤ ø30H7) |
| Housing |
plastic |
|
| Speed | ≤600 rpm | (100 % ED) |
| Weight | ~0.1 kg |
Electrical data
| Feature | Technical data | Additional information |
|---|---|---|
| Battery |
lithium coin cell, 3 V, CR2032 type |
~2-year service life |
|
lithium coin cell, 3 V, CR2477 type |
~8-year service life |
|
| Display/display range |
5-digit LCD 7-segment, ~8 mm height |
-19999 … 99999 |
Ambient conditions
| Feature | Technical data | Additional information |
|---|---|---|
| Ambient temperature | -10 … 60 °C | |
| Storage temperature | -30 … 80 °C | |
| EMC | EN 61000-6-2 | interference resistance / immission |
| EN 61000-6-4 | emitted interference / emission | |
| Protection category | IP51 | EN 60529 |
| Shock resistance | 300 m/s2, 15 ms | EN 60068-2-27 |
| Vibration resistance | 100 m/s2, 5 … 150 Hz | EN 60068-2-6 |
| 200 m/s2, 100 Hz … 2 kHz | EN 60068-2-6 |
Ordering table
Ordering information
Hint: Texts highlighted in orange color are order characteristics.
Please note that the value displayed (=measured value per revolution / display divisor) must be at least 2!
| Feature | Order data | Specifications | Additional information |
|---|---|---|---|
| Mounting position* |
A02 |
horizontal spindle | |
|
04 |
vertical spindle | ||
| Measured value per revolution* |
B… |
00002 … 90000 | see display value calculation |
|
W3600 |
angle mode 0° … 360°, resolution 0.1° | only with comma position "1" | |
|
Z3600 |
angle mode -180° … +180°, resolution 0.1° | only with comma position "1" | |
| Decimal place* |
C0 |
0 = 00000 | |
|
1 |
1 = 0000.0 | ||
|
2 |
2 = 000.00 | ||
|
3 |
3 = 00.000 | ||
| Display divisor* |
D… |
1, 10, 100, 1000 | see display value calculation |
| Counting direction* |
Ei |
clockwise ascending values | |
|
e |
counter-clockwise ascending values | ||
| Key pad operation |
FD |
direct zeroing* | |
|
V |
zeroing delayed by 5 s* | ||
|
K |
only incremental measurement function | ||
|
OF |
without function keys | ||
| Hollow shaft/diameter |
G30 |
ø30 mm | |
|
20 |
ø20 mm | ||
|
… |
RH16, RH22, RH24, RH25, RH25.4, RH26 | reducing bushes | |
| others on request | |||
| Color |
HO |
orange RAL 2004 | |
|
S |
black RAL 9005 | ||
| Battery |
IB2 |
~2 years service life | |
|
B8 |
~8 years service life | observe technical drawing | |
*Programmable via ProTool DE programming software
Ordering key
DE10-A-B-C-D-E-F-G-H-A-BP-I
