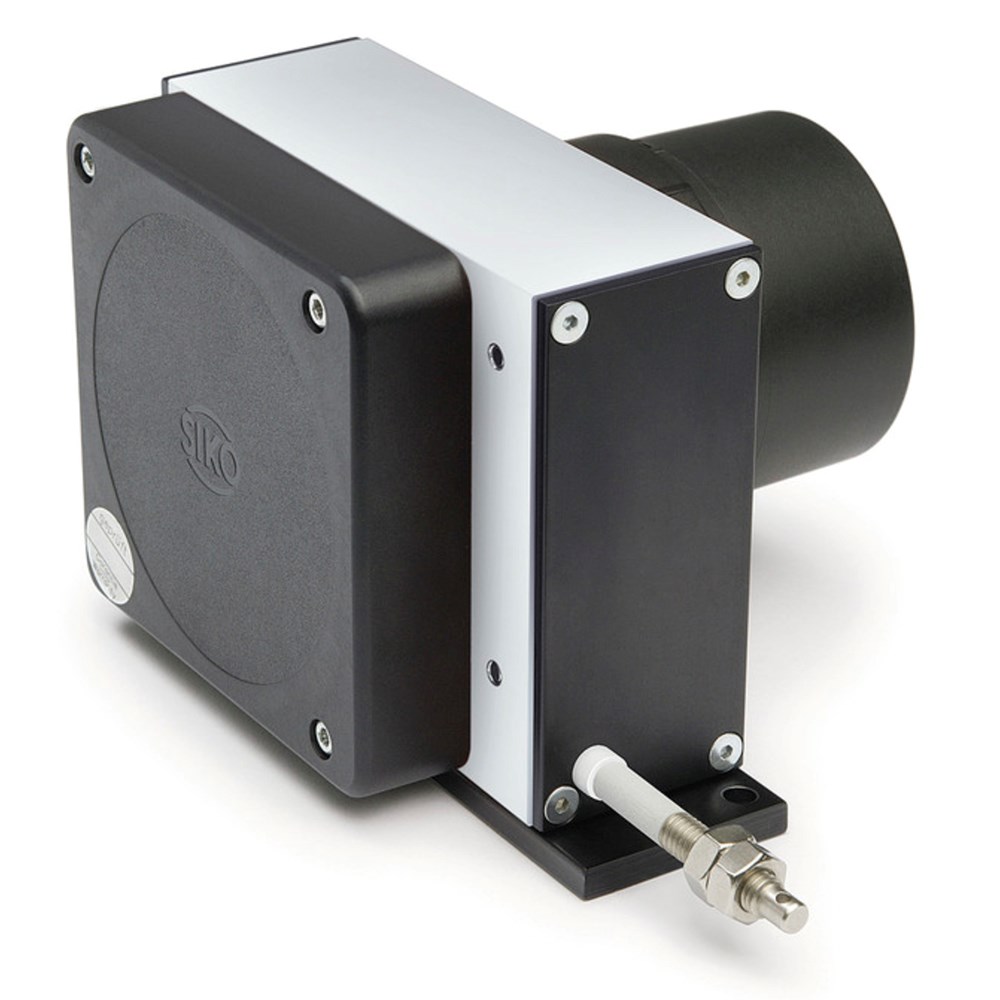

Siko Draw-Wire Encoder SGP/1
Siko Draw-Wire Encoder SGP/1
Sku: SIK-SGP-1
Robust design with analogue output and 6000 mm measurement length
Product Information
Wire-actuated encoder with analog output, potentiometric, current source or voltage output, with a measuring length of up to 6000 mm. Easy adjustment of the output signal to the actual measuring length via an integrated gear mechanism.
- Robust design
- Measurement lengths up to max. 6000 mm
- Potentiometer, voltage or power output
- Housing made of aluminum and plastic
- Potentiometer/resistance range adapted to actual measurement length via an integrated gear
- Various wire types
Mechanical data
| Feature | Technical data | Additional information |
|---|---|---|
| Housing | aluminum/plastic | |
| Wire design | ø0.54 mm |
rustproof stainless steel |
| ø0.87 mm |
rustproof stainless steel, plastic-coated |
|
| ø1.05 mm | para-line | |
| Extension force | ≥8 N | |
| Measured distance/ rope drum revolution | 200 mm | |
| Acceleration | ≤23.5 m/s2 | |
| Weight | ~0.7 kg |
max. travel speed
| Measuring range [mm] | 750 | 1000 | 1250 | 1500 | 1750 | 2000 | 2250 | 2500 | 2750 | 3000 | 3250 | 3500 | 6000 |
| Travel speed [mm/s] | ≤200 | ≤300 | ≤300 | ≤400 | ≤490 | ≤500 | ≤600 | ≤700 | ≤800 | ≤800 | ≤900 | ≤1000 | ≤1000 |
Electrical data
Encoder potentiometer
| Feature | Technical data | Additional information |
|---|---|---|
| Power rating | 2 W at 70 °C | |
| Resistance | 1 kΩ | P01 |
| 5 kΩ | P05 | |
| 10 kΩ | P10 | |
| Resistance tolerance | ±5 % | |
| Linearity tolerance | ±0.25 % |
Transducer, power output
| Feature | Technical data | Additional information |
|---|---|---|
| Operating voltage | 10 … 30 V DC |
between I+ and I-, load ≤500 Ω |
| Output current | 4 … 20 mA |
Transducer, voltage output
| Feature | Technical data | Additional information |
|---|---|---|
| Operating voltage | 15 … 28 V DC |
at 3 mA without load |
| Output voltage | 0 … 10 V DC | |
| Resistance | 2 … 10 kΩ |
against GND |
| Load | ≤15 mA |
*
Measurement transducers permit optimum adjustment of the output current and output voltage to the measuring range. The measurement transducer is pre-set at the works so that an output signal of 4 … 20 mA (MWI) or 0 … 10 V DC (MWU) is available.
System data
| Feature | Technical data | Additional information |
|---|---|---|
| Repeat accuracy | ~0.5 mm |
per direction of approach |
| Travel speed |
see table |
Ambient conditions
| Feature | Technical data | Additional information |
|---|---|---|
| Ambient temperature | -20 … 80 °C | T1 |
| -40 … 80 °C |
T2 (draw-in speed ≤800 mm/s) |
|
| Protection category |
IP65 (potentiometer part) |
EN 60529 |
Ordering table
| Feature | Order data | Specifications | Additional information |
|---|---|---|---|
| A – Measuring range |
A… |
750 … 6000 mm, in steps of 250 mm | |
| B – Rope fixture |
BGW |
wire suspension with thread | |
|
HK |
wire suspension with hook | ||
| C – Wire design |
CS |
stainless steel rope | measuring range ≤ 6000 mm |
|
SK |
stainless steel rope, plastic-coated | measuring range ≤ 4000 mm | |
|
P |
para-line, non-conducting, signal color | measuring range ≤ 2800 mm | |
|
S/FLEX |
stainless steel rope, flexible rope outlet | measuring range ≤ 6000 mm | |
|
SK/FLEX |
stainless steel rope, plastic-coated, flexible rope outlet | measuring range ≤ 4000 mm | |
| D – Type of connection |
DE1 |
cable gland PG7 | cable ø 3-6.5 mm |
|
EX |
for M12 connector | ||
| E – Potentiometer type |
E02 |
10 helices/wire | (P01, P05, P10) |
|
03 |
10 helices/hybride | (P01, P05, P10) | |
| F – Analog output |
FMWI |
4 … 20 mA transducer | |
|
MWU |
0 … 10 V transducer | ||
|
P01 |
potentiometer 1 kΩ | ||
|
P05 |
potentiometer 5 kΩ | ||
|
P10 |
potentiometer 10 kΩ | ||
| G – Operating temperature |
GT1 |
-20 … +80 °C | |
|
T2 |
-40 … +80 °C | ≤ feed speed 800 mm/s | |
Ordering key
SGP/1-A-B-C-D-E-F-G
