Siko Draw-Wire Encoder SG5
Siko Draw-Wire Encoder SG5
Sku: SIK-SG5

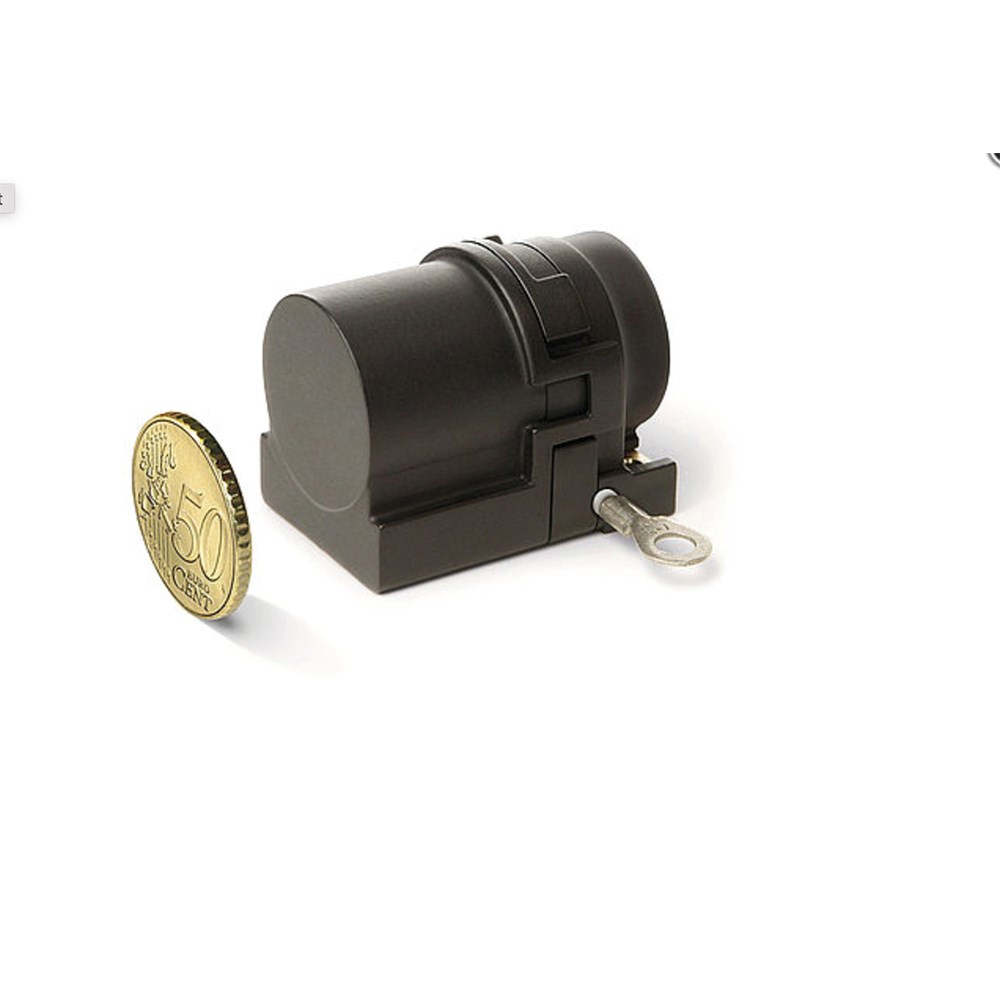

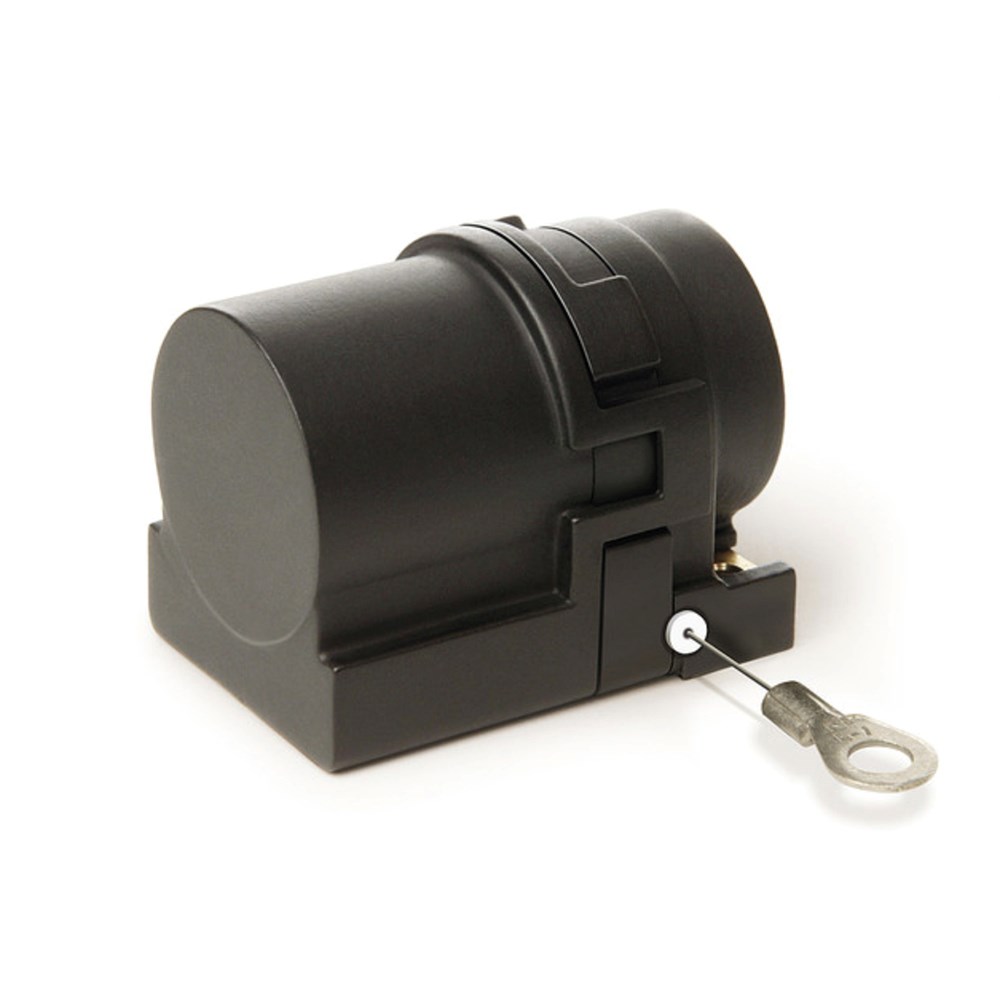

Miniature wire-actuated encoder with 600 mm measurement length
Product Information
Miniature wire-actuated encoder designed to capture linear measurement distances. Its measuring length of 600 mm is very long considering its small size. SG5 is universally usable thanks to its standardized interfaces.
- Very small design
- Universally applicable thanks to standardized interfaces
- Easy mounting
- Measurement lengths up to max. 600 mm
- Potentiometer, voltage or power output
- Housing made of reinforced plastic
Mechanical data
| Feature | Technical data | Additional information |
|---|---|---|
| Housing | reinforced plastic | |
| Wire design | ø0.36 mm |
rustproof stainless steel, plastic-coated |
| Extension force | ≥3 N | |
| Absolute accuracy | ±0.35 %
(potentiometer) |
relating to measuring length (mm) |
| Cable length | ≤15 m |
P10 encoder type |
| ≤30 m |
MWI encoder type |
|
| ≤20 m |
MWU encoder type |
|
| Weight | ~0.06 kg |
Electrical data
Encoder potentiometer
| Feature | Technical data | Additional information |
|---|---|---|
| Power rating | 2 W at 70 °C | |
| Resistance | 10 kΩ | |
| Resistance tolerance | ±5 % | |
| Linearity tolerance | ±0.25 % |
Transducer, power output
| Feature | Technical data | Additional information |
|---|---|---|
| Operating voltage | 24 V DC ±20 % |
at ≤500 Ω load |
| Output current | 4 … 20 mA |
Transducer, voltage output
| Feature | Technical data | Additional information |
|---|---|---|
| Operating voltage | 15 … 28 V DC |
at 3 mA, no load |
| Output voltage | 0 … 10 V DC |
ILoad ≤10 mA |
| Load | ≤10 mA |
*Measurement transducers permit optimum adjustment of the output current and output voltage to the measuring range. The measurement transducer is pre-set at the works so that an output signal of 4 … 20 mA (MWI) or 0 … 10 V DC (MWU) is available.
System data
| Feature | Technical data | Additional information |
|---|---|---|
| Repeat accuracy | ±0.15 mm | |
| Travel speed | ≤800 mm/s |
Ambient conditions
| Feature | Technical data | Additional information |
|---|---|---|
| Ambient temperature | -10 … 80 °C | |
| Relative humidity | condensation inadmissible | |
| Protection category |
IP50 (encoder part) |
EN 60529; with cable connected in the factory |
Ordering table
| Feature | Order data | Specifications | Additional information |
|---|---|---|---|
| Measuring range |
A300M |
300 mm | Transducer setting, only with MWI or MWU encoder types |
|
600 |
600 mm | ||
| Encoder type |
BP10 |
potentiometer with 10 kΩ | |
|
MWI |
transducer 4 … 20 mA | ||
|
MWU |
transducer 0 … 10 V | ||
| others on request | |||
| Cable length |
COK |
without cable | |
|
0.5 |
0.5 m | ||
|
… |
1 … 15 m, in steps of 1 m | ||
Ordering key
SG5-A-B-C
