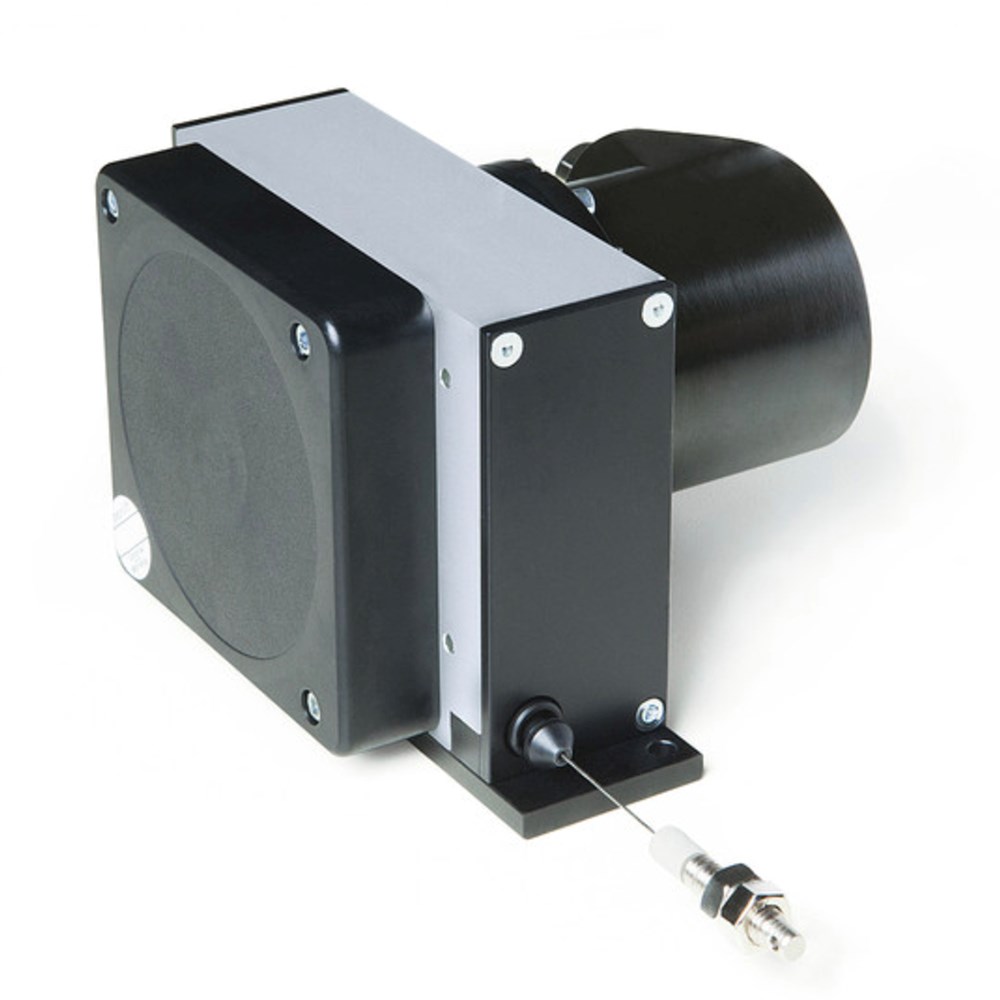

Siko Draw-Wire Encoder SG121
Product Information
Universally usable wire-actuated encoder with measuring lengths of max. 12000 mm, robust design as well as precise and safe wire guidance; prepared for the attachment of various types of rotary encoders with 58 mm standard flange. In combination with a safety encoder from the PURE.MOBILE sensor platform, the wire-actuated encoder can also be used in safety-critical applications up to Performance Level PLd. Furthermore, the wire-actuated encoder can also be used in safety-critical applications up to Performance Level Pld for easy parameterization.
- Robust design
- Easy mounting
- Measurement lengths up to max. 12000 mm
- Flexible wire outlet thanks to Wire-Flex technology
- Incremental or absolute encoder
- Also available as a safety version in combination with WV58MR rotary encoder
- High flexibility thanks to free choice of rotary encoders with 58 mm standard flange
- Various wire types
- With PURE.MOBILE technology
Mechanical data
| Feature | Technical data | Additional information |
|---|---|---|
| Housing | aluminum/plastic | |
| Wire design | ø0.6 mm | rustproof stainless steel |
| ø0.6 mm | rustproof stainless steel, plastic-coated | |
| ø0.6 mm | para-line | |
| Extension force | ≥8 N | on the rope |
| Measured distance/ rope drum revolution | 200 mm |
Electrical data
You can find suitable rotary encoders on our website www.siko-global.com. They are suitable …
- for analog outputs such as current or voltage: AV3650M, AV58M
- for incremental outputs: IV5800
- for absolute outputs: WV58MR, WV5800M, WV5850, WV3650M, WV36M/CAN
SIKO rotary encoders have the following interfaces, among others: incremental, SSI, CANopen, CANopen Safety, SAE J1939, various fieldbus protocols
The technical specifications for these devices can be found in the respective data sheets. In addition, numerous encoder variants from different manufacturers can be used.
System data
| Feature | Technical data | Additional information |
|---|---|---|
| Repeat accuracy | ±0.15 mm | mechanical, depending on the direction of travel (1st position) |
| Measuring range | ≤12000 mm |
Ambient conditions
| Feature | Technical data | Additional information |
|---|---|---|
| Ambient temperature | -20 … +80 °C | |
| Protection category | depending on the mounted rotary encoder | |
| Shock resistance | 500 m/s2, 11 ms | EN 60068-2-27 |
| Vibration resistance | 100 m/s2, 5 … 150 Hz | EN 60068-2-6 |
Ordering table
| Feature | Order data | Specifications | Additional information |
|---|---|---|---|
| A – Measuring range |
A… |
7000, 8000, 9000, 10000, 11000, 12000 in mm | |
| B – Rope fixture |
BGW |
wire suspension with thread | |
|
HK |
wire suspension with hook | ||
|
RI |
wire suspension with ring | ||
| C – Wire design |
CS |
stainless steel wire | |
|
SK |
steel wire, plastic-sheathed | ||
|
P |
para-leine | ||
| D – Encoder type |
DOG6 |
without encoder | |
|
S6 |
great number of encoders possible | ||
| E – Position of electrical connection |
E1 |
direction or wire outlet or axially | depending on installed encoder |
|
2 |
upward | ||
|
3 |
opposite the wire outlet | ||
|
4 |
downward | ||
|
O |
without encoder | ||
Ordering key
SG121-A-B-C-D-E
