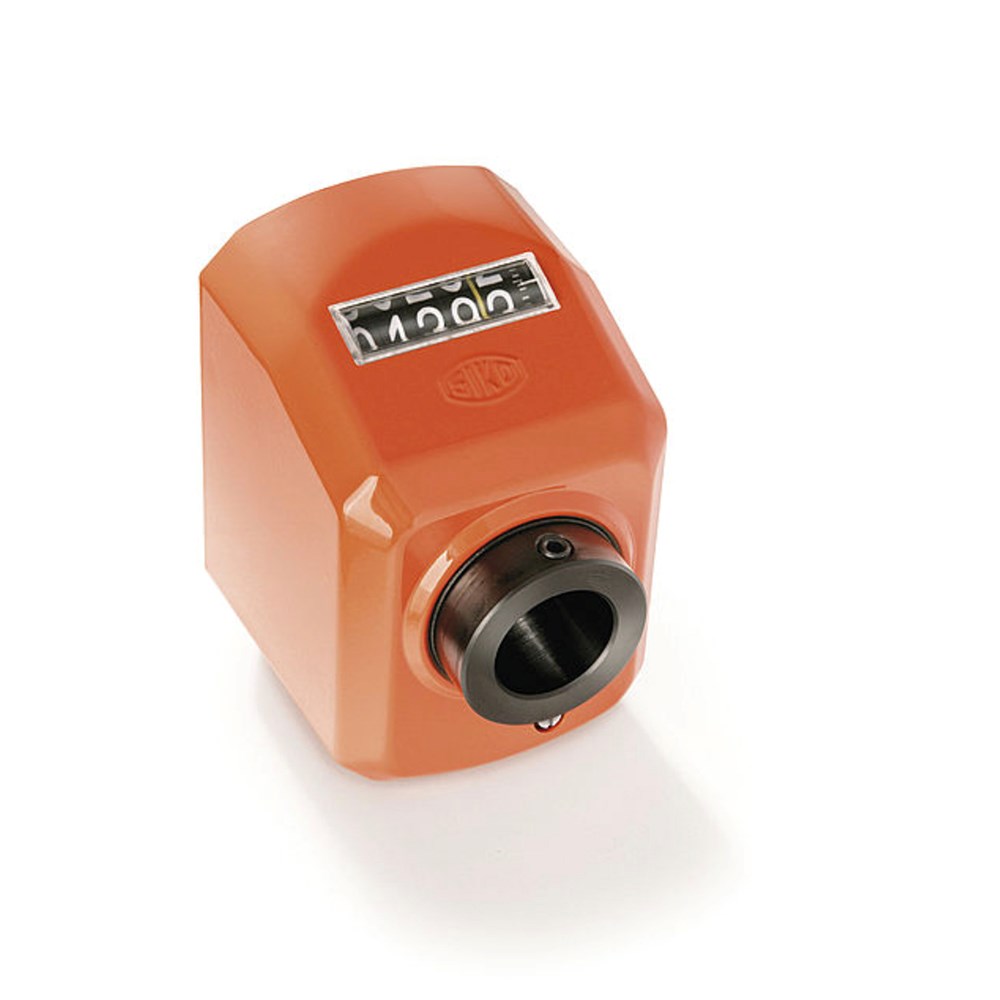

Siko Digital position indicator DA05/1
Product Information
- Robust design in a metal housing
- Hollow shaft, max. Ø 20 mm
- Counter with 5 decades and fine reading
- Display can be designed for “mm” or “inch”
- Attenuated counter system
- Fine setting for correction of dimensions
- Reversible counting direction
-
Mechanical data
Feature Technical data Additional information Housing zinc die-cast Counter 5 decades, fine reading Digit height ~7 mm Weight 0.5 kg max. speed
Display (after 1st revolution) max. speed [rpm] 00010 500 (1500) 00015 500 (1000)? 00020 500 (750)? 00025 500 (600)? 00030 500 00040 375 00050 300 00060 250 00080 180 00100 150 Speeds >500 rpm must only be run for short periods.
Ambient conditions
Feature Technical data Additional information Ambient temperature 0 … 80 °C
Ordering information
| Feature | Order data | Specifications | Additional information |
|---|---|---|---|
| Mounting position |
A… |
02, 04 | see the icons illustrating the mounting positions |
| Indication after 1st revolution |
B… |
10, 15, 20, 25, 30, 40, 50, 60, 80, 100 | |
| others on request | |||
| Decimal place |
C0 |
0 = 00000 | |
|
1 |
1 = 0000.0 | ||
|
2 |
2 = 000.00 | ||
|
3 |
3 = 00.000 | ||
|
4 |
4 = 0.0000 | ||
| Counting direction |
Di |
clockwise ascending values | |
|
e |
counter-clockwise ascending values | ||
|
e/i |
can be adjusted by the customer | by opening the housing, see mounting instructions | |
| Hollow shaft/diameter |
E… |
20 in mm | |
|
… |
RH8, RH10, RH12, RH14, RH16, RH18 | reducing bushes | |
| Color |
FO |
orange RAL 2004 | |
|
S |
black RAL 9005 | ||
| Fine adjustment |
GFE |
with fine adjustment | |
|
OFE |
without fine graduation | ||
| Slipping clutch |
HRK |
with sliding clutch | only with fine adjustment "FE" |
|
ORK |
without sliding clutch | only with fine adjustment "OFE" | |
| Labyrinth seal |
IOLD |
without labyrinth seal | |
|
LD |
with labyrinth seal | ||
Ordering key
DA05/1-A-B-C-D-E-F-G-H-A-I
