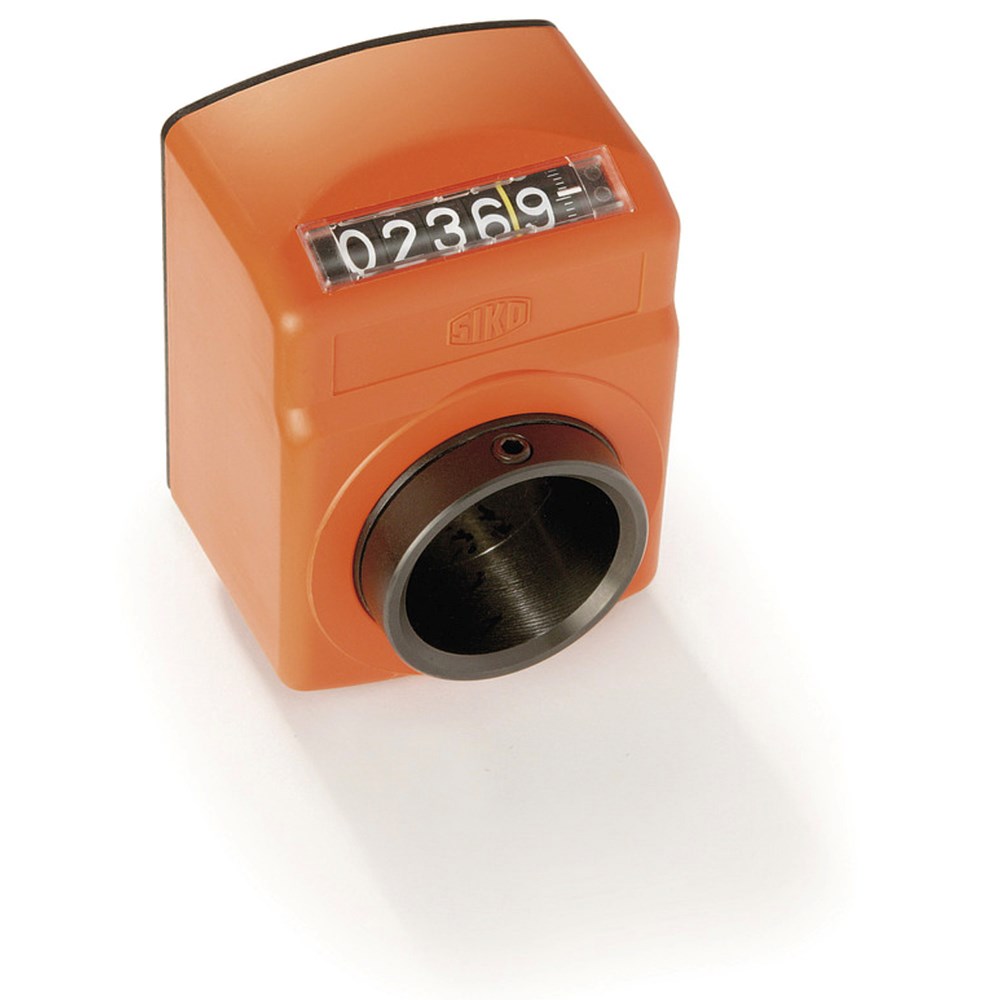

Siko DA10
Product Information
- Designed for large diameters
- Hollow shaft, max. Ø 30 mm
- Counter with 5 decades and fine reading
- Display can be designed for “mm” or “inch”
- Magnifying function for good readability
- Stainless-steel driving shaft as an option
- Axial seal, dustproof and splash-proof
Mechanical data
| Feature | Technical data | Additional information |
|---|---|---|
| Housing |
reinforced plastic |
|
| Sight window |
plastic |
mineral glass as an option |
| Counter | 5 decades, fine reading | |
| Digit height | ~7 mm | |
| Weight | 0.1 kg |
Max. speed
| Display (after 1st revolution) | max. speed [rpm] |
|---|---|
| 00010 | 500 (1500) |
| 00015 | 500 (1000)? |
| 00020 | 500 (750)? |
| 00025 | 500 (600)? |
| 00030 | 500 |
| 00040 | 375 |
| 00050 | 300 |
| 00060 | 250 |
| 00080 | 180 |
| 00100 | 150 |
Ambient conditions
| Feature | Technical data | Additional information |
|---|---|---|
| Ambient temperature | 0 … 80 °C |
| Feature | Order data | Specifications | Additional information |
|---|---|---|---|
| A. Mounting position |
… |
12, 14, 16, 17 | see the icons illustrating the mounting positions |
| B. Indication after 1st revolution |
… |
6/5, 10, 15, 17/5, 20, 25, 30, 39/4, 40, 50, 60, 80, 100 | /5 = arithmetical value not displayed |
| others on request | |||
| C. Decimal place |
0 |
0 = 00000 | |
|
1 |
1 = 0000.0 | ||
|
2 |
2 = 000.00 | ||
|
3 |
3 = 00.000 | ||
|
4 |
4 = 0.0000 | ||
| D. Counting direction |
i |
clockwise ascending values | |
|
e |
counter-clockwise ascending values | ||
| E. Hollow shaft/diameter |
… |
30, 25 | |
|
… |
VA30 | stainless steel | |
|
… |
RH10, RH12, RH14, RH16, RH20, RH25 | reducing bushes | |
| F. Hollow shaft/design |
WK |
hollow shaft short | not with hollow shaft/diameter "25" |
|
WL |
hollow shaft long | only with hollow shaft/diameter "25" | |
| G. Torque pin/position |
I |
position I | |
|
II |
position II | ||
| H. Colour |
O |
orange RAL 2004 | |
|
S |
black RAL 9005 | ||
| I. Axial seal |
OAD |
without axial seal | |
|
AD |
with axial seal | ||
Ordering key
DA10-A-B-C-D-E-F-A-G-H-K-I-BP
