Siko AV58M Absolute encoder
Product Information

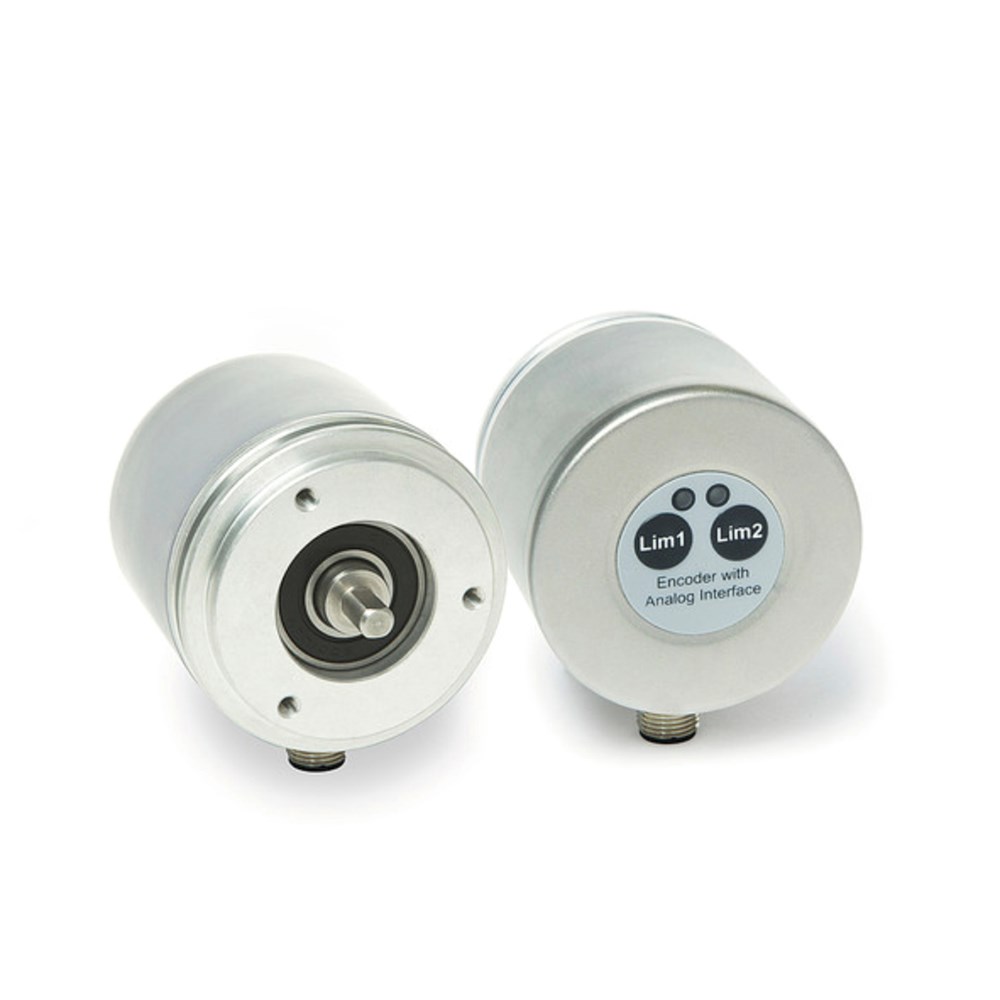

The AV58M rotary encoder with teach-in function is a magnetic absolute value encoder with analog output. The user himself can set the rotary encoder's desired measurement range via two buttons on the rear as well as two external inputs. The device features a batteryless multi-turn technology.
- Absolute analog encoder
- 13 Bit (8192) resolution over the measuring range
- Operating tmperature until -40 °C
- Voltage (0 … 10 V, 0.5 … 4.5 V), current (0 … 20 mA) outputs
- Programmable measuring range via teach-in function with key funkcion or external inputs
Mechanical data
| Feature | Technical data | Additional information |
|---|---|---|
| Shaft | stainless steel | |
| Housing |
nickel-plated steel |
|
| Speed | ≤12000 rpm | |
| Moment of inertia | ≤20 gcm2 | |
| Starting torque | ≤2 Ncm |
at 25 °C |
| Shaft load rating | axial 20 N | |
| radial 80 N | ||
| Weight | ~0.15 kg |
Electrical data
Transducer, power output
| Feature | Technical data | Additional information |
|---|---|---|
| Operating voltage | 8 … 32 V DC | 4 … 20 mA |
| Current consumption |
typical 20 mA@ 24 V (idling) |
without load |
| Linearity | 0.15 % | |
| Load | RL <500 Ω at UB ≥15 V DC | 4 … 20 mA |
| Accuracy | ±0.09° | |
| Starting time | <500 ms | |
| Settling time | 32 ms | |
| Type of connection | 1x M12 plug connector (A-coded) | 5-pole, 1x pin |
Transducer, voltage output
| Feature | Technical data | Additional information |
|---|---|---|
| Operating voltage | 8 … 32 V DC | 0 … 10 V |
| 8 … 32 V DC | 0.5 … 4.5 V | |
| Current consumption | typically 15 mA | without load |
| Linearity | 0.15 % | |
| Load | RL >10 kΩ at UB ≥12 V DC | 0 … 10 V, 0.5 … 4.5 V |
| Accuracy | ±0.09° | |
| Starting time | <500 ms | |
| Settling time | 32 ms | |
| Type of connection |
1x M12-plug connector (A-coded) |
5-pole, 1x pin |
System data
| Feature | Technical data | Additional information |
|---|---|---|
| Resolution | 13
bit (output) |
over the programmed measuring range |
| Measuring range | ≥11.5° | |
| 65536 revolution(s) | ||
| 16 revolution(s) |
factory setting |
Ambient conditions
| Feature | Technical data | Additional information |
|---|---|---|
| Ambient temperature | -40 … 85 °C | |
| Storage temperature | -40 … 85 °C | |
| Relative humidity | 98 % | condensation inadmissible |
| EMC | EN 61000-6-2 | interference resistance / immission |
| EN 61000-6-4 |
emitted interference / emission |
|
| Protection category | IP66, IP67 (housing side) | EN 60529 |
| IP65 | EN 60529 | |
| Shock resistance | ≤1000 m/s2, 6 ms | EN 60068-2-27 |
| Vibration resistance | ≤100 m/s2, 10 Hz … 1 kHz | EN 60068-2-6 |
Ordering table
| Feature | Order data | Specifications | Additional information |
|---|---|---|---|
| Interface |
A0/10V |
0 … 10 V | |
|
0.5/4.5V |
0.5 … 4.5 V | ||
|
4/20mA |
4 … 20 mA | ||
Ordering key
AV58M-A-6-M12
for more information, click here!
Pin assignment
| Signal | PIN |
|---|---|
| Iout/Uout | 1 |
| +UB | 2 |
| GND | 3 |
| Limit 1 | 4 |
| Limit 2 | 5 |
Scope of delivery
-
AV58M
