Siko AV3650M Absolute encoder
Siko AV3650M Absolute encoder
Sku: SIK-AV360M
Compact rotary encoder with solid shaft and analog interface
Product Information

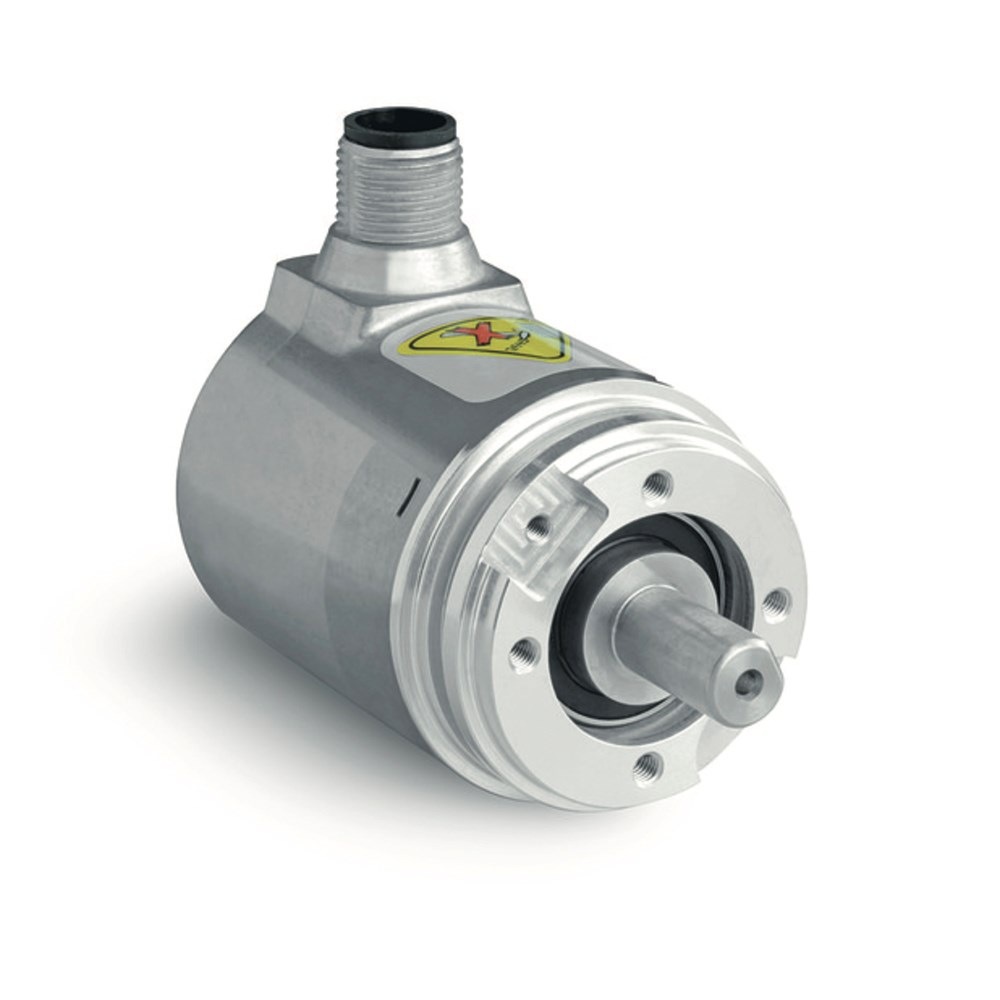

The AV3650M rotary encoder is an absolute magnetic single- and multi-turn rotary encoder, which impresses with its extremely compact design. It is particularly robust and resistant to vibrations. Thanks to its high protection class up to IP67 and a temperature range of -40° C … +85° C, it is also suitable for demanding industrial applications. The particularly small design with a diameter of only 36 mm predestines the rotary encoder for use in applications with limited installation space. The analog current or voltage outputs can be adjusted to any measuring range thanks to the teach-in.
- absolute wear-free magnetic encoder
- Multiturn without gearbox and without battery
- current or voltage output interfaces
- extremely compact and very robust design
- IP67 protection class
- extensive temperature range -40 … 85° C
- optimal price-performance ratio
Mechanical data
| Feature | Technical data | Additional information |
|---|---|---|
| Shaft | rustproof stainless steel | |
| Flange | Aluminum | |
| Housing | zinc die-casting | |
| Speed | 6000 rpm | with protection class IP65 with mounting type M3, M4, transient for ≤10 min |
| 3000 rpm | with protection class IP65 with mounting type M3, M4, continuous operation | |
| 4000 rpm | with protection class IP67 or mounting type M1, M2, transient for ≤10 min | |
| 2000 rpm | with protection class IP67 or mounting type M1, M2, continuous operation | |
| Starting torque | <0.007 Nm | with protection class IP65 with mounting type M3, M4 |
| <0.01 Nm | with protection class IP67 with mounting type M3, M4 | |
| <0.01 Nm | with mounting type M1, M2 | |
| Shaft load rating | 40 N | radial, mounting type M3, M4 |
| 20 N | axial, mounting type M3, M4 | |
| 80 N | radial, mounting type M1, M2 | |
| 40 N | axial, mounting type M1, M2 | |
| Cable sheath | PVC | ø6.2 ±0.2 mm |
| Cable bending radius | 60 mm | static |
| 130 mm | dynamic | |
| Mounting type | clamping flange joint ø58 mm | mounting type M1 |
| servo flange ø58 mm | mounting type M2 | |
| clamping flange joint ø36 mm | mounting type M3 | |
| servo flange ø36 mm | mounting type M4 | |
| Weight | ~0.2 kg |
Electrical data
| Feature | Technical data | Additional information |
|---|---|---|
| Operating voltage | 10 … 30 V DC | at output 0 … 5 V, reverse polarity protected |
| 15 … 30 V DC | at output 0 … 10 V, reverse polarity protected | |
| 10 … 30 V DC | at output 4 … 20 mA, but UB > Uload +2.0 V, reverse polarity protected | |
| Current consumption | ≤30 mA | |
| Power input | ≤300 mW | without load |
| Parameter storage | 104 cycles | also applies to calibration operations |
| Inputs | 2 | limit inputs, high active |
| Input signal level high | +UB | ≥1 s |
| Output voltage | 0 … 5 V | |
| 0 … 10 V | ||
| Output current | 4 … 20 mA | |
| Temperature drift | <100 ppm/K | |
| Cycle time | 1 ms | |
| Starting time | <1 s | |
| Settling time | <1 ms | load = 900 Ω, 25° C |
| Type of connection | 1x M12 connector (A-coded) | 5-pole, 1x pin, E12E connection type |
| open cable end | E1 connection type |
System data
| Feature | Technical data | Additional information |
|---|---|---|
| Scanning | magnetic | |
| Resolution | 11 bit | at 0 … 5 V, analog output FS |
| 12 bit | at 0 … 10 V, 4 … 20 mA, analog output FS | |
| System accuracy | ±1° | |
| Repeat accuracy | ±0.2° | |
| Measuring range | 65536 revolution(s) | 16 bit, factory setting 16 rotation(s) |
Ambient conditions
| Feature | Technical data | Additional information |
|---|---|---|
| Ambient temperature | -40 … 85 °C | |
| Storage temperature | -40 … 85 °C | |
| Relative humidity | 93 % | condensation inadmissible |
| EMC | DIN EN 61326-1 | immunity requirement of industry |
| DIN EN 61000-4-2, -3, -6, -8 | interference resistance / immission | |
| DIN EN 61000-4-4, -5 | burst / surge | |
| DIN EN 61000-6-4 | emitted interference / emission | |
| DIN EN 55011 Class B | radiation emission / radio interference suppression | |
| Protection category | IP65 | EN 60529 |
| IP67 | EN 60529 | |
| Shock resistance | 2500 m/s2, 6 ms | EN 60068-2-27 |
| Vibration resistance | 300 m/s2, 10 … 2000 Hz | EN 60068-2-6 |
Ordering table
| Feature | Order data | Specifications | Additional information |
|---|---|---|---|
| Interface |
A0/5V |
0 … 5 V voltage output | |
|
0/10V |
0 … 10 V voltage output | ||
|
4/20mA |
4 … 20 mA current output | ||
| Shaft diameter x length |
B6x12.5 |
ø6 mm x 12.5 mm | |
|
8×15 |
ø8 mm x 15 mm | ||
|
10×20 |
ø10 mm x 20 mm | ||
|
1/4×0.492 |
ø1/4 in x 0.492 in | ||
| Mounting type |
CM1 |
clamping flange joint ø58 mm | |
|
M2 |
servo flange ø58 mm | ||
|
M3 |
clamping flange joint ø36 mm | ||
|
M4 |
servo flange ø36 mm | ||
| Protection category |
DIP65 |
IP65 | |
|
IP67 |
IP67 | ||
| Position of electrical connection |
EA |
axial | |
|
R |
radial | ||
| Type of connection |
FE1 |
open cable end | |
|
E12E |
plug | ||
| Cable length |
G… |
01.0, 02.0, 03.0, 05.0, 10.0 in m | only with connection type E1 |
|
OK |
without cable | only with connection type E12E | |
Ordering key
AV3650M-A-65536-B-C-D-E-F-G-S
For more information, click here!
Pin assignment
E12E
| Signal | PIN |
|---|---|
| Iout/Uout | 1 |
| +UB | 2 |
| GND | 3 |
| Lim 2 | 4 |
| Lim 1 | 5 |
E1
| Signal | Color |
|---|---|
| Iout/Uout | green |
| +UB | brown |
| GND | white |
| Lim 2 | pink |
| Lim 1 | gray |
Scope of delivery
- Quick Start Guide
- AV3650M
