Siko AP10T
Siko AP10T
Sku: SIK-AP10T

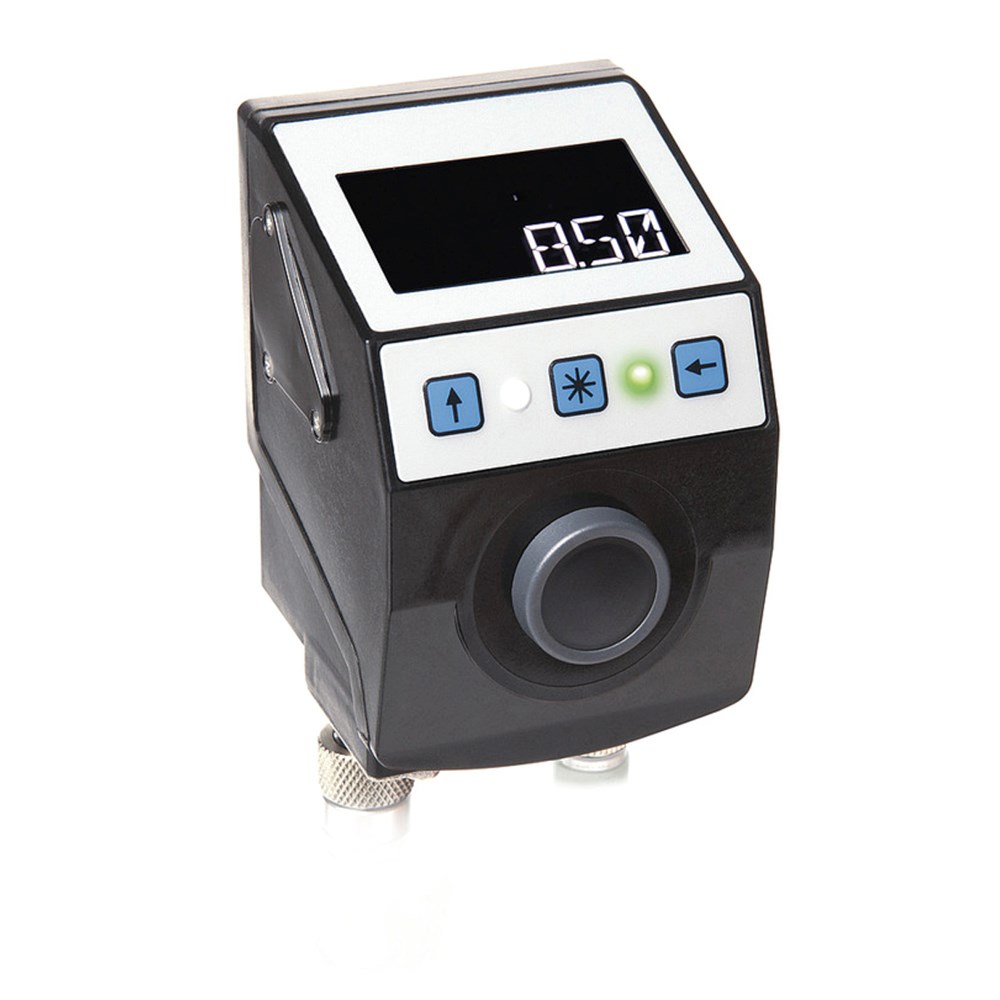

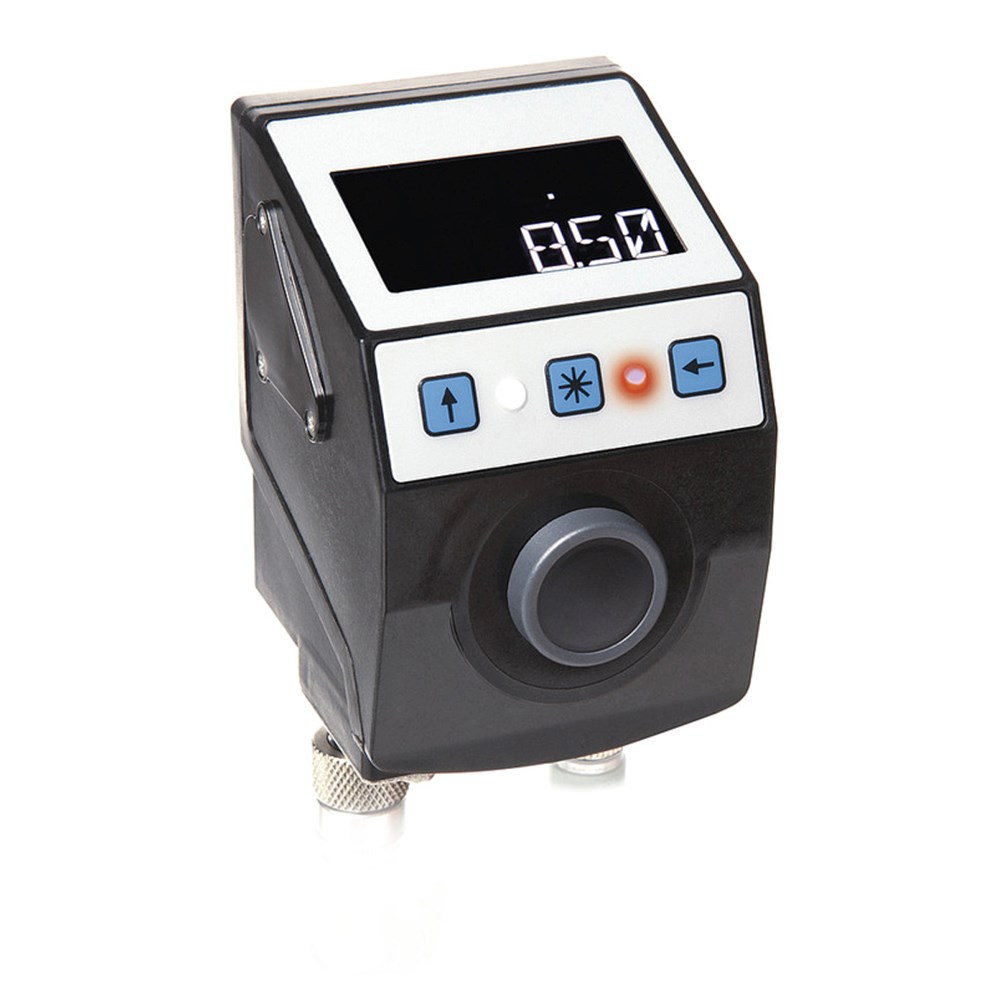

Siko Setpoint display AP10T-with bus interface, for format part or tool change
Product Information
Setpoint display with communication interface visualizes instructions for the operator during product change or format changes. Readability is optimized for intuitive user prompting: The red/green LEDs indicate whether a format part change is required. With the help of the backlit display, designations or setpoint and actual value can be clearly displayed. The operator confirms the changeover using an acknowledgment button.
This means that faulty machine settings with the setpoint display AP10T can be avoided in the future, making flexible production machines more process-reliable.
Profile AP10T:
- Setpoint display with bus interface without measurement of actual value
- Large control key to confirm target value
- Optimally readable backlit display
- Two-line LCD-Display
- Integrated RS485 interface, CAN bus as an option
- User guidance via bicolor status LEDs
- IP53 type of protection, IP65 as an option
Mechanical data
| Feature | Technical data | Additional information |
|---|---|---|
| Housing | reinforced plastic | plug thread, nickel-plated brass/cover, metal ground connection |
| Color |
black, RAL 9005 |
|
| Weight | ~0.09 kg |
Electrical data
| Feature | Technical data | Additional information |
|---|---|---|
| Operating voltage | 24 V DC ±20 % | |
| Current consumption | ~30 mA |
additional ~3 mA per LED when operated with LEDs |
| Power input | ~0.72 VA | Max. power supply of the power supply unit used: 100 VA. The power supply used corresponds to SELV/Limited Energy (IEC 61010-1) or SELV/LPS (IEC 60950-1) or Class 2 (UL 1310). |
| Parameter storage | 105 cycles | also applies to calibration operations |
| Display/display range |
6-digit LCD 14-segment, ~8 mm height |
decimal points, 2 rows, (backlit LED red/white) |
| Status display |
2x two-color LED (red/green) |
acknowledgment status, configurable |
| Keys |
acknowledgment, parameterization |
|
| Bus connection | RS485; CANopen |
no galvanic isolation |
| Type of connection |
2x M8-plug connectors (A-coded) |
4-pole, 1x socket, 1x pin |
|
grounding via flat male tab 6.3 mm or terminal lug |
System data
| Feature | Technical data | Additional information |
|---|---|---|
| Approval | UL | UL 61010-1, File No. E503367 |
Ambient conditions
| Feature | Technical data | Additional information |
|---|---|---|
| Ambient temperature | 0 … 60 °C | |
| Storage temperature | -20 … 80 °C | |
| Relative humidity | condensation inadmissible | |
| EMC | EN 61326-1 | Industry immunity requirement, class B emission limit |
| Safety regulations | DIN EN 61010-1 (VDE 0411-1), UL 61010-1 | Limited power supply according to DIN EN 61010-1 Section 9.4. Protection class II Surge category II Pollution level 2 |
| Protection category | IP53 |
EN 60529, only with mating connector (protection class not examined by UL) |
| IP65 |
EN 60529, only with mating connector (protection class not examined by UL) |
|
| Shock resistance | 500 m/s2, 11 ms |
EN 60068-2-27 |
| Vibration resistance | 100 m/s2, 5 … 150 Hz |
EN 60068-2-6 |
Ordering table
| Feature | Order data | Specifications | Additional information |
|---|---|---|---|
| Interface/protocol |
AS3/09 |
RS485/SIKONETZ5 | |
|
CAN |
CANopen | ||
| Protection category |
BIP53 |
IP53 | |
|
IP65 |
IP65 | ||
| Viewing window |
CSF |
front foil | |
|
K |
plastic | impact protection | |
Ordering key
AP10T-A-B-EX-C-S
