Siko AP10S

Sku: SIK-AP10S

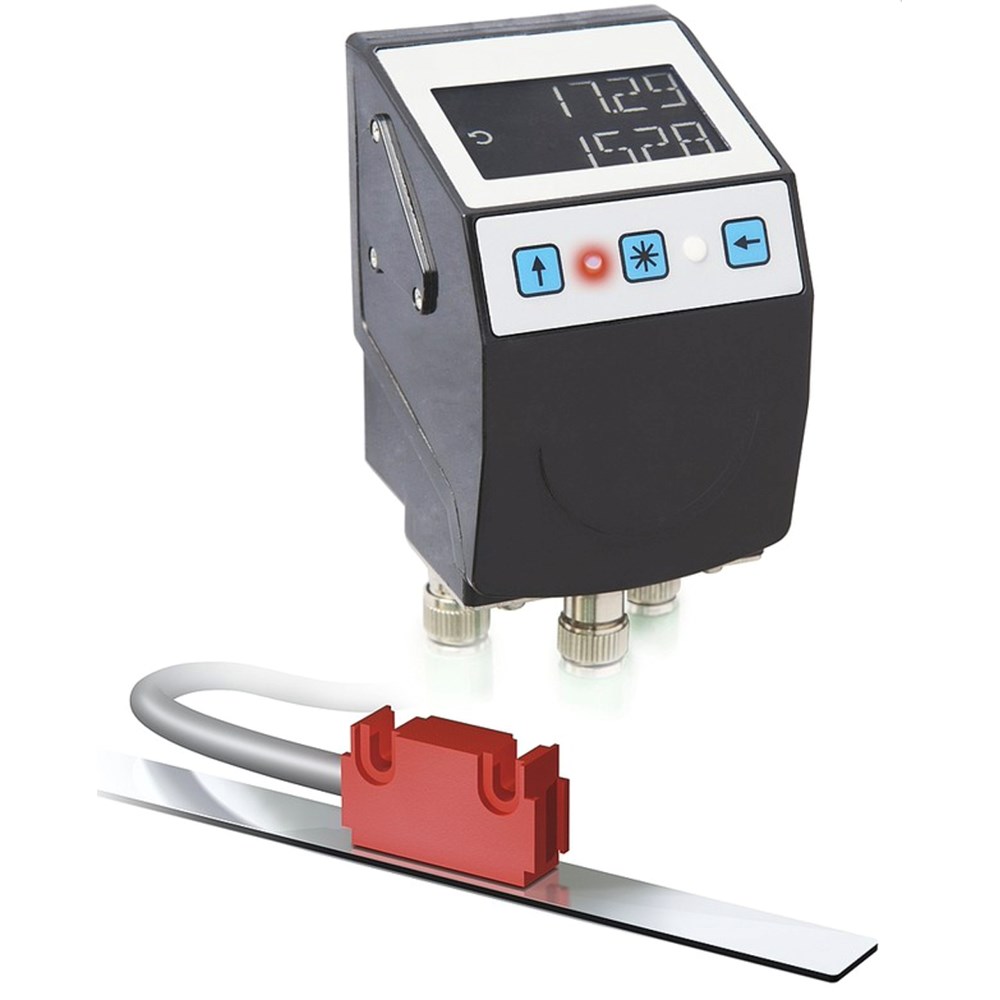

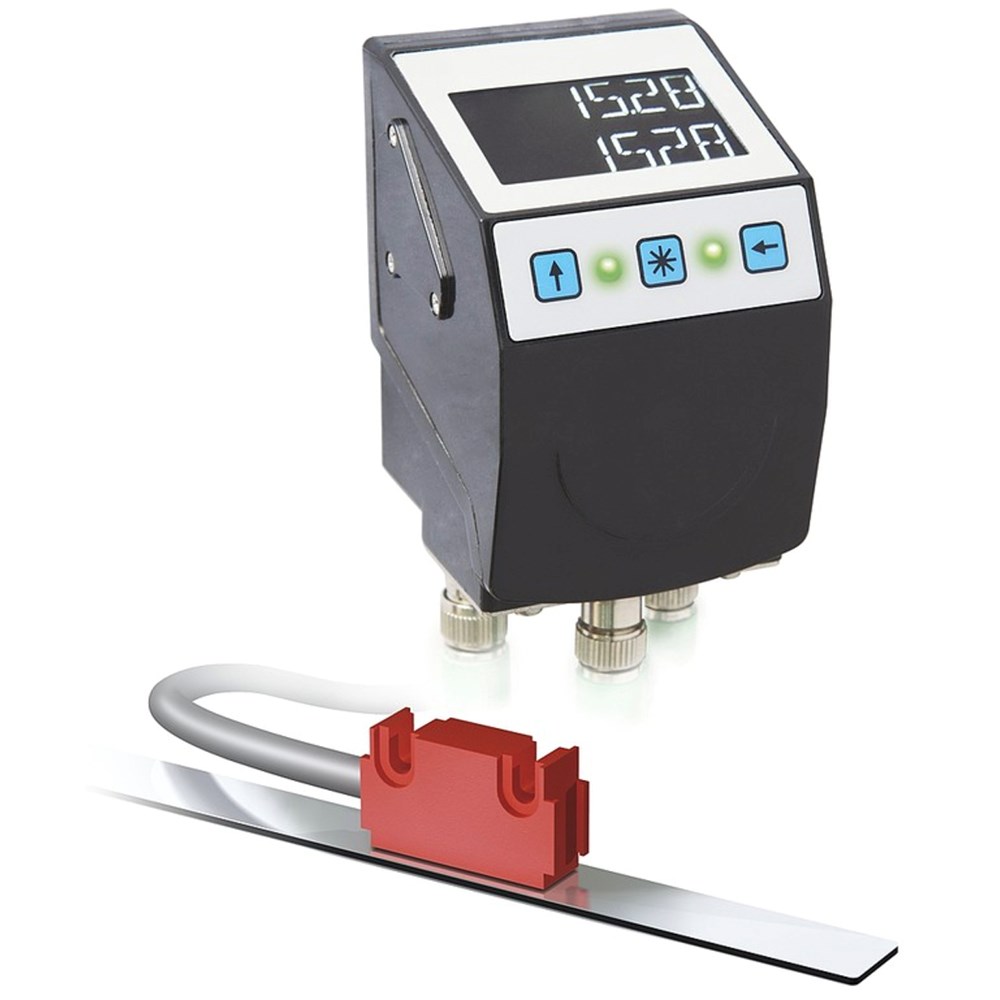

Siko Electronic position indicator AP10S-With interface, for direct linear length measurement

Product Information

Absolute position display with communication interface for linear or slide adjustment intuitively guides the operator to the correct machine setting when changing products or changing formats. Readability is optimized for intuitive user prompting: The backlit display clearly shows the setpoint and actual value, and the two LEDs clearly indicate the direction in which the adjustment must be made. The IO link interface enables easy and reliable integration into modular machines.

Profile AP10S:

Electronic position indicator with plug connection for magnetic sensor
Optimally readable backlit display
Two-line LCD for target and actual values
Reset, incremental measurement, offset via keyboard
Integrated RS485 interface, CAN bus or IO-Link as an option
Display accuracy up to 0.01 mm
Absolute function via internal backup
User guidance via bicolor status LEDs
IP53 type of protection, IP65 as an option
Industry 4.0 ready

Mechanical data

Feature	Technical data	Additional information
Housing	reinforced plastic	plug thread, nickel-plated brass/cover, metal ground connection
Color	black, RAL 9005
Weight	~0.11 kg

Electrical data

Feature	Technical data	Additional information
Operating voltage	24 V DC ±20 %
Current consumption	~30 mA	additional ~3 mA per LED when operated with LEDs
Power input	~0.72 VA	Max. power supply of the power supply unit used: 100 VA. The power supply used corresponds to SELV/Limited Energy (IEC 61010-1) or SELV/LPS (IEC 60950-1) or Class 2 (UL 1310).
Battery service life	~5 year(s)
Parameter storage	10⁵ cycles	also applies to calibration operations
Display/display range	6-digit LCD 14-segment, ~8 mm height	decimal points, 2 rows, special characters (backlit LED red/white)
Special character	cw arrow, ccw arrow, incremental measurement, battery
Status display	2x two-color LED (red/green)	position status, configurable
Keys	incremental measurement function, parameterizing, resetting
Interface	RS485; CANopen; IO Link	no galvanic isolation
Type of connection	2x M8-plug connectors (A-coded)	4-pin, 1x socket, 1x pin (RS485, CANopen)
	1x M8 connector (A-coded)	4-pin, 1x pin (IO-Link)
	1x M8 plug connector (A-coded)	6-pole, 1x socket (sensor)
	grounding via flat male tab 6.3 mm or terminal lug

System data

Feature	Technical data	Additional information
Scanning	external sensor
Resolution	720 increments/revolution	displayed value/rotation freely configurable (use with GS04)
	0.01 mm	use with MS500H
System accuracy	±35 µm	use with MS500H
Measuring range	±655 m	use with MS500H
	≤14562 revolution(s)	use with GS04
Approval	UL	UL 61010-1, File No. E503367

Ambient conditions

Feature	Technical data	Additional information
Ambient temperature	0 … 60 °C
Storage temperature	-20 … 80 °C
Relative humidity		condensation inadmissible
EMC	EN 61326-1	Industry immunity requirement, class B emission limit
Safety regulations	DIN EN 61010-1 (VDE 0411-1), UL 61010-1	Limited power supply according to DIN EN 61010-1 Section 9.4. Protection class II Surge category II Pollution level 2
Protection category	IP53	EN 60529, only with mating connector (protection class not examined by UL)
	IP65	EN 60529, only with mating connector (protection class not examined by UL)
Shock resistance	500 m/s², 11 ms	EN 60068-2-27
Vibration resistance	100 m/s², 5 … 150 Hz	EN 60068-2-6
