Series M5

Series M5

Sku: KEL-M5

Keller Pressure M5 Series

Product Information

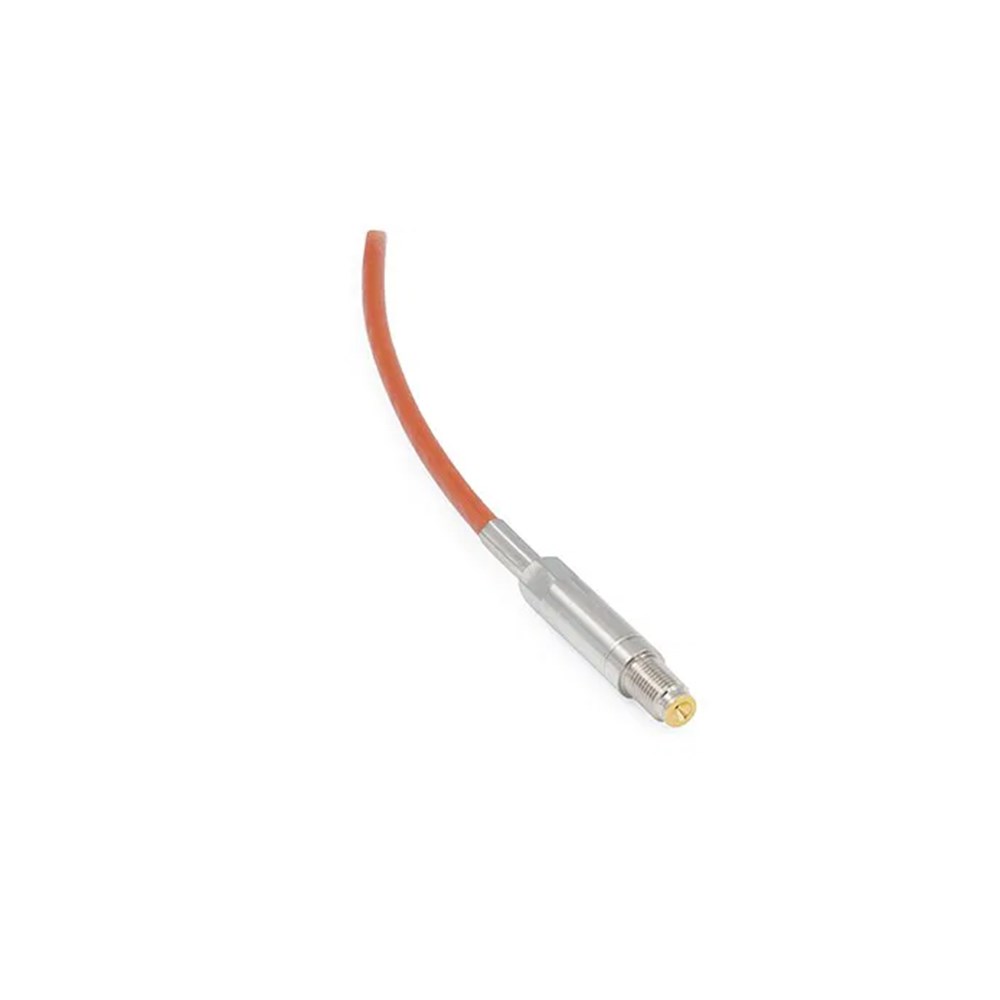

The miniature pressure transducer M5 takes its name from the fine M5 thread at the sensor head that makes it possible to take measurements in places which are difficult to access and in narrow pipelines. Together with its ability to measure media at temperatures of up to 180 °C in a dynamic range from 0 to 50 kHz, this makes it ideally suited to measurements on engine test benches.

Pressure Ranges 0…3 to 0…30 bar
Accuracy ±0,3 %FS
Pressure Connection M5 x 0.5 thread

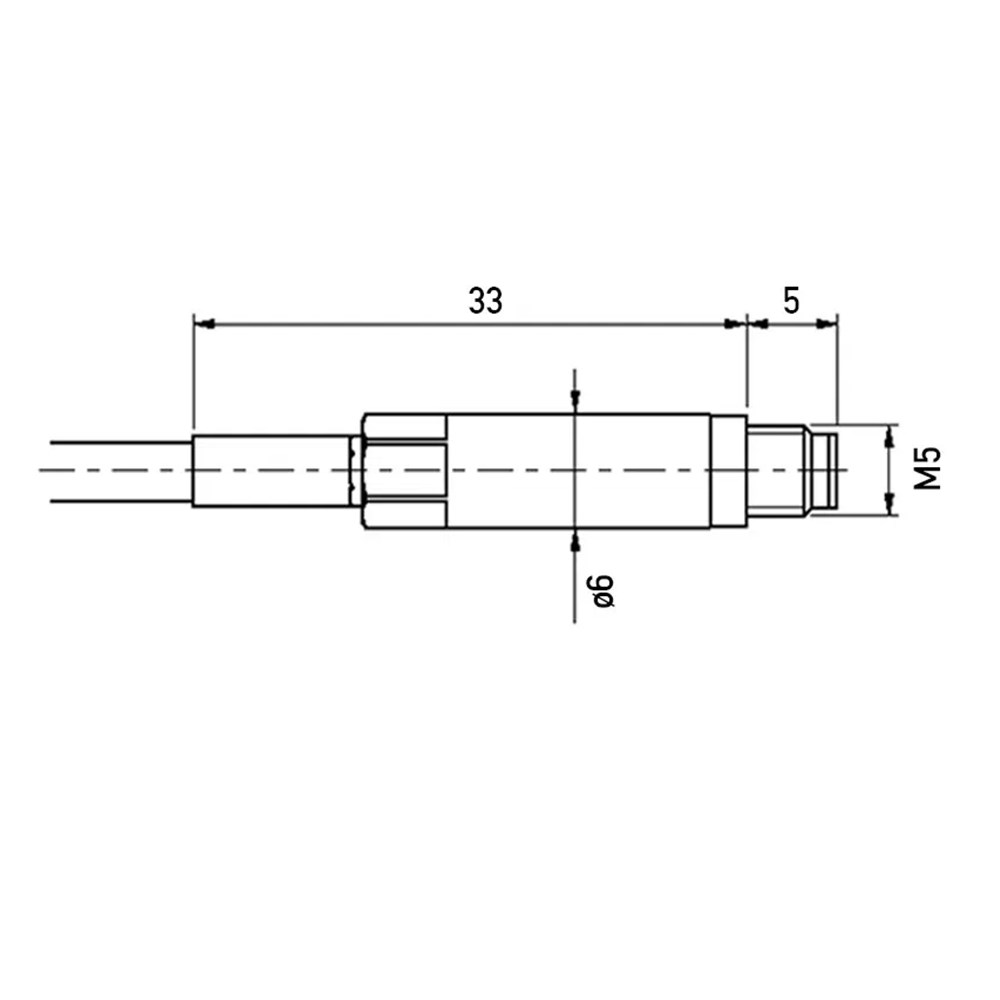

Dimensions ?6,2mm x 40mm
Temperature Range -50…180?



Series M5: Data Sheet

OEM Pressure Transducers: Manual

For more infomation please click here
