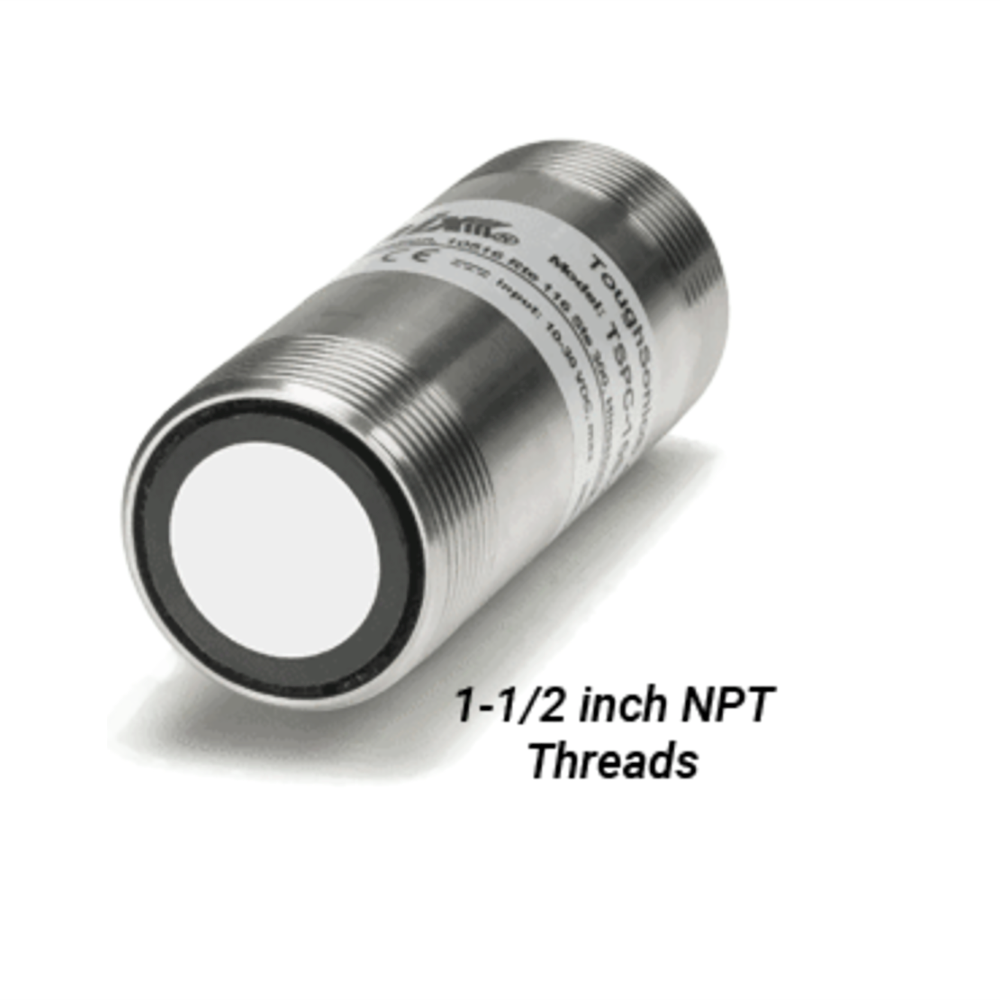

Senix ToughSonic 30
Product Information
These rugged, compact ultrasonic sensors inspired the “ToughSonic” name. They are Senix's flagship products with heavy-duty electronics epoxy potted into type 316 stainless steel housings, with permanently attached cables and ruggedized piezoelectric transducers. ToughSonic sensors are found on remote monitoring stations from the Australian outback to Alaskan oil fields. They are installed on heavy construction and farm equipment and in some of the harshest factory environments. When an ordinary sensor just won’t do, you need a ToughSonic.
- Long range — small housing
- Rugged construction, IP68 rated
- Indoor or outdoor uses
- Front and rear mounting threads
- Five outputs plus serial data
- Serial data-only models
- Temperature compensation
- Push-button or PC configurable
Specifications
| Maximum Range | 30 feet (9.1 meters) |
| Optimum Range | 10 inches – 20 feet (25.4 cm- 6.1m) |
| Temperature | -40° to 158° F (-40° to 70° C) |
| Humidity | 0 to 100% operating |
| Protection | NEMA-4X, NEMA 6P, IP68 |
| Transducer | Ruggedized piezoelectric |
| Compensation | Temperature compensated (selectable in SenixVIEW) |
| Resolution | Serial data: 0.0068 in. (0.172 mm) Analog:4099 steps (0-10 VDC), 3279 steps (4-20 mA) |
| Repeatability | Nominal 0.2% of range @ constant temp. Affected by target, distance, environment |
| Update Rate | 10 Hz (100 ms), SenixVIEW adjustable; affected by SenixVIEW filter selections |
Specifications are subject to change without notice.
Outputs
| Voltage Output | 0-10, 0-5 VDC or SenixVIEW customized; 10 mA max. |
| Current Loop #1 | Current sourcing 4-20 mA or SenixVIEW adjustable, max. loop 450? |
| Current Loop #2 | Current sinking 4-20 mA or SenixVIEW adjustable, max. loop 450? |
| Two Switches | 150 mA max. @ 40 VDC max., SenixVIEW selected as sinking (NPN) or sourcing (PNP), each with adjustable set point, polarity, hysteresis & time delays |
| RS-232, RS-485 | Modbus & streaming protocols, 9600-115200 baud (selectable), 8 data bits, 1 stop, no parity, model number determines interface |
Mechanical
| Housing | 316 stainless steel |
| Mounting | 30 mm threaded: many stainless and nylon mounting accessories 1-in NPT threaded: mates with US NPT female pipe threads |
| Attached Cable | 6.5 feet (2 meters), PUR jacketed, custom lengths available Standard models: 6-wire shielded + drain Serial data only models: 4-wire + drain, dual twisted shielded pair |
| Total Weight | 10.4 oz. (0.29 kg) |
