Senix ToughSonic 12
Product Information
These rugged, compact ultrasonic sensors inspired the “ToughSonic” name. They are Senix flagship products with heavy-duty electronics epoxy potted into type 316 stainless steel housings, with permanently attached cables and ruggedized piezoelectric transducers. ToughSonic sensors are found on remote monitoring stations from the Australian outback to Alaskan oil fields. They are installed on heavy construction and farm equipment and in some of the harshest factory environments. When an ordinary sensor just won’t do, you need a ToughSonic.
- Long range — small housing
- Rugged construction, IP68 rated
- Indoor or outdoor uses
- Straight or tapered thread options
- Two outputs plus serial data
- Serial data-only models
- Temperature compensation controls
- Push-button or PC configurable
Specifications
| Maximum Range | 12 feet (3.7 meters) |
| Optimum Range | 3 inches to 8 feet 76 mm to 2.4 meters |
| Temperature | -40° to 158° F (-40° to 70° C) |
| Humidity | 0 to 100% operating |
| Protection | NEMA-4X, NEMA 6P, IP68 |
| Transducer | Ruggedized piezoelectric |
| Compensation | Temperature compensated (selectable in SenixVIEW) |
| Resolution | Serial data: 0.0034 in. (0.086 mm) Analog steps: 4099 (0-10 VDC), 3279 (4-20 mA) |
| Repeatability | Nominal 0.2% of range @ constant temp. Affected by target, distance, environment |
| Update Rate | 20 Hz (50 ms), SenixVIEW adjustable; affected by SenixVIEW filter selections |
Specifications are subject to change without notice.
Outputs
| Output #1 | Default: Current; SenixVIEW configurable Alternate: Configure it as a switch output |
| Output #2 | Default: Voltage; SenixVIEW configurable Alternate: Configure it as a switch output |
| Voltage Output | 0-10, 0-5 VDC or SenixVIEW configurable 10 mA maximum |
| 4-20 mA Current Loop |
Current sourcing, SenixVIEW configurable Maximum loop resistance 450? |
| Switch Output(s) | Output #1 and/or #2 can be a switch Each can be sinking (NPN) or sourcing (PNP) Max ratings: 150 mA @ 40 VDC Each has adjustable setpoint, polarity, hysteresis, window, time delays and more |
| RS-232 or RS-485 |
Modbus & streaming protocols 9600-115200 baud (configurable) 8 data bits, 1 stop, no parity RS-485 permits multi-sensor networks Part number determines interface |
| SYNC feature | Permits multiple sensors to operate in close proximity without cross-talk Not usable concurrently with serial data |
Mechanical
| Housing | 316 stainless steel |
| Transducer | PVDF |

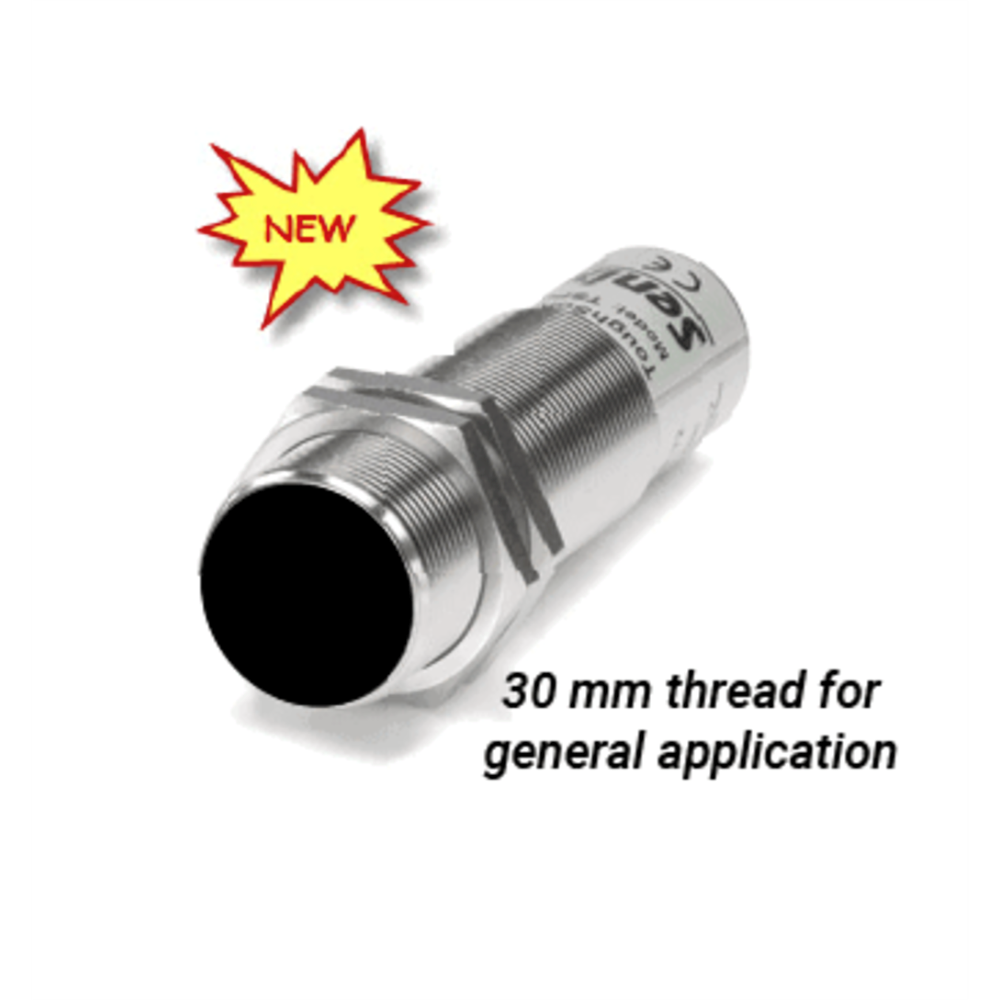

| Mounting (30 mm) |
Through hole in bracket or panel Two jam nuts included Stainless & nylon brackets available Adapters to 1-1/2 in and 2 in NPT available |

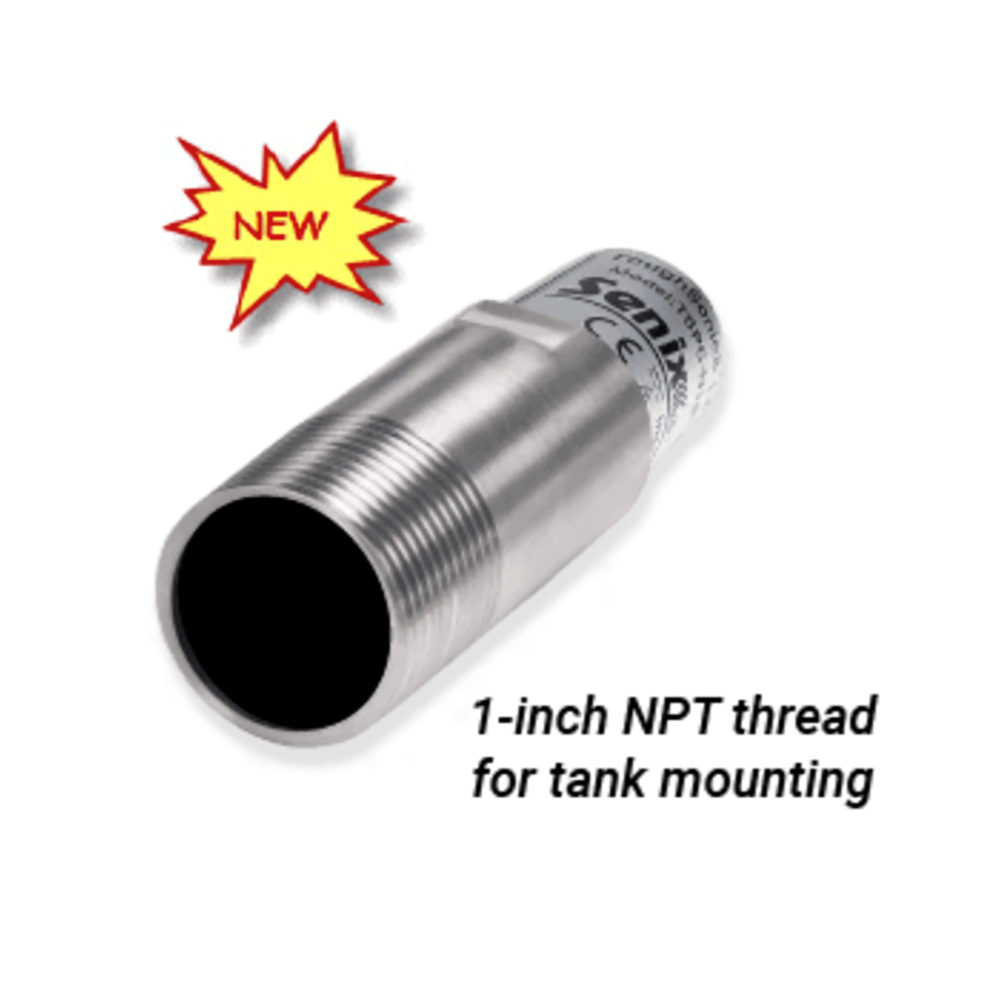

| Mounting (1-in NPT) |
Typically for tank mounting Mates with 1-in NPT female thread |
| Attached Cable | 6.5 feet (2 meters), PUR jacketed Custom lengths available Standard models: 6-wire shielded + drain Serial data only models: 4-wire + drain, dual twisted shielded pair |
| Total Weight | 30 mm: 10.4 oz. (0.29 kg) 1-in NPT: 14.2 oz. (0.40 kg) Weights include 2 meter cable |
