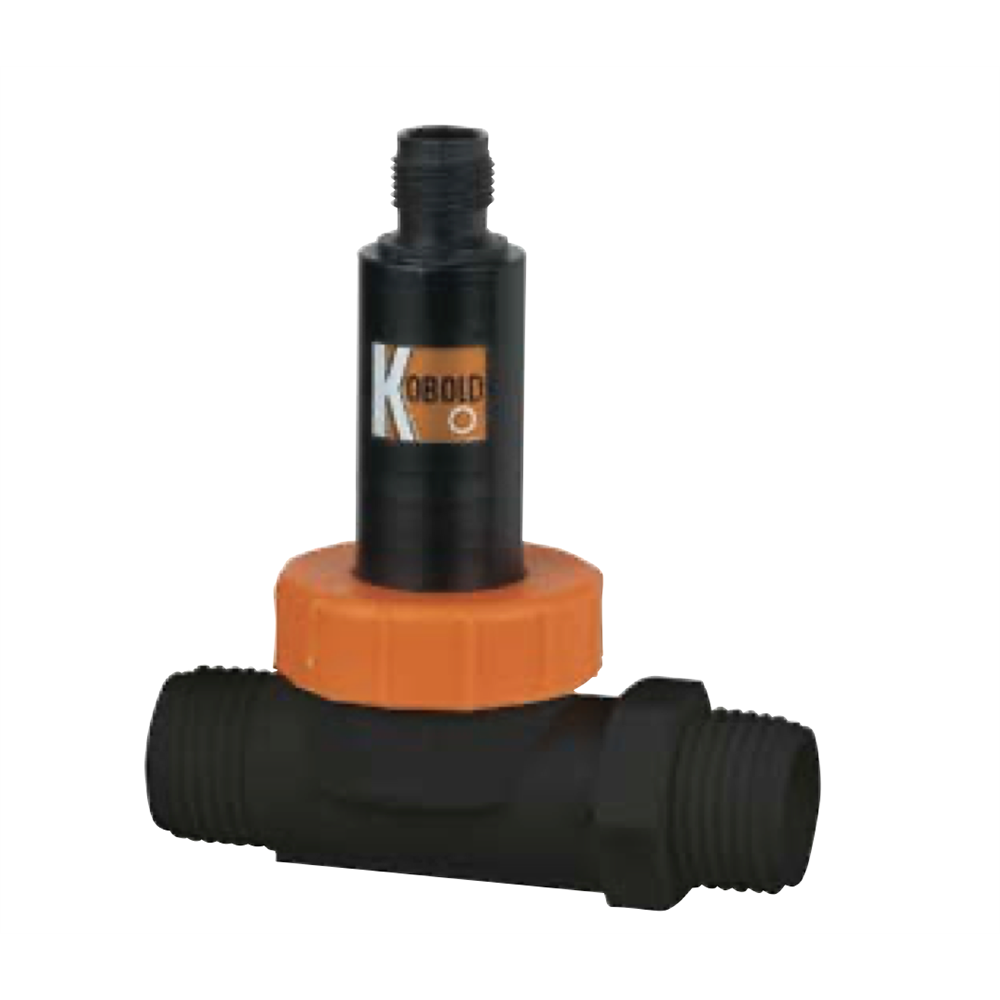

Rotating Vane Flow Meter DPL
Product Information
The KOBOLD flow meter models DPL are used to measure and monitor liquids.
It's compact design allows it to be used in equipment where space is at a premium.
The large number of pulse evaluation options offered means that the system is suited for a wide range of applications.
Measuring range: 0.025 – 0.5 … 1 – 25 l/min water
Connection: G ½ male thread or hose connector
Material: polypropylene
pmax: 10 bar
tmax: 70°C
Linearity: ±1 %
Options: Analogue output, totalizer, contacts, contacts NPN / PNP, digital indicator, pulse output, frequency divider
