Optris CTlaser F2 for Flames

Optris CTlaser F2 for Flames

Sku: OPT-CTlaser-F2

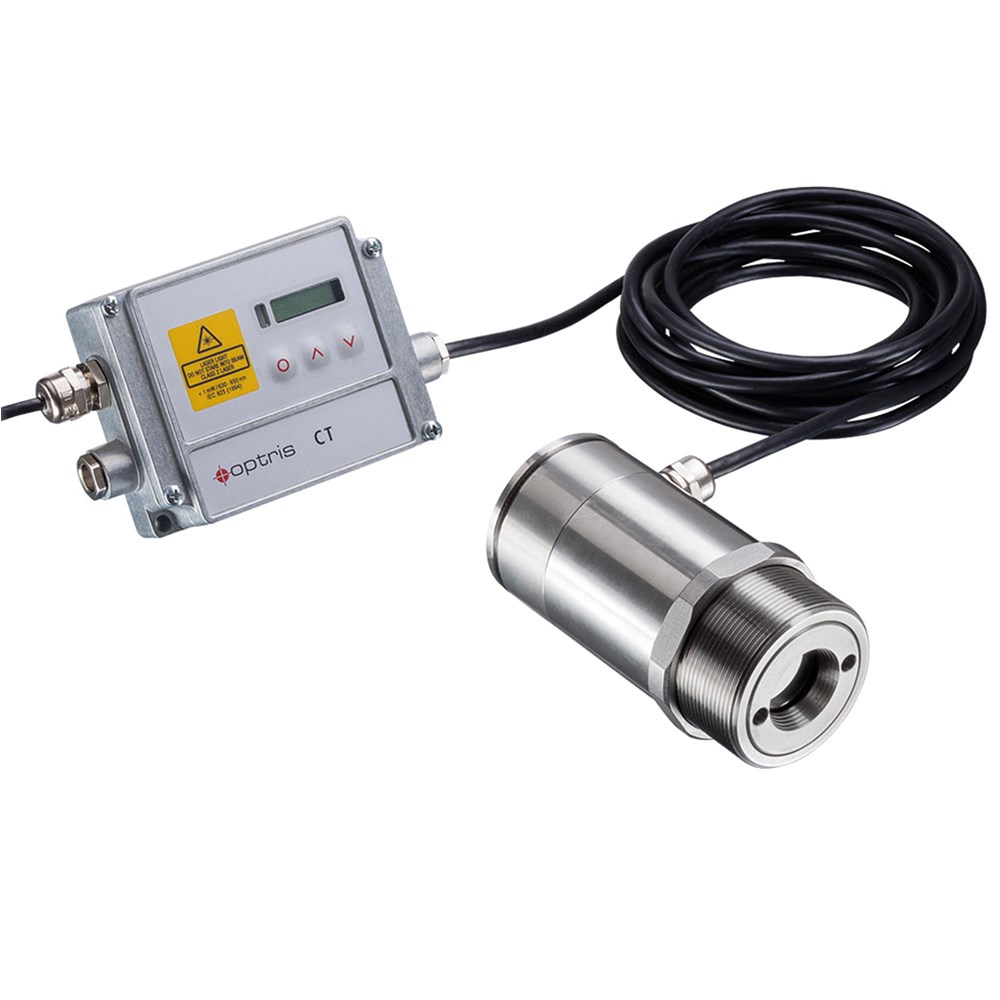

Infrared thermometer optris CTlaser F2 for temperature measurement of CO2 flame gas

Products

Clear

Add to Quote

Product Information

The infrared laser thermometer optris CTlaser F2 offers a special measuring wavelength for temperature measurement of CO2 flame gases. This makes it optimally suited for e.g. combustion processes, garbage incineration, or processes in chemical reactors.

The IR thermometer’s temperature range covers temperatures from 200°C up to 1,650°C, while the stainless steel measuring head is heat-resistant up to 85°C without additional cooling. Optional cooling and protection equipment is available, ensuring exact temperature measurement even in rough surroundings.

Temperature range:
200°C to 1,650°C
Spectral range: 4.24 µm
Response time: 10 ms

Applications

The infrared thermometer optris CTlaser F2 has been specifically designed for temperature measurement of combustion gases. It is capable of measuring CO2 flame gases of up 1,650°C in combustion processes. The device is employed in e.g. garbage incineration or in different processes in chemical reactors.

Software

The temperature analysis software optris Compact Connect has been developed specifically for the extensive documentation and analysis of temperature measurement data of our stationary infrared thermometers. It is license-free and included in every pyrometer shipment.

Measurement Specifications

Temperature range (scalable via programming keys or software):
200°C … 1,450°C (CTlaser F2)
400°C … 1,650°C (CTlaser F2H)
Spectral range: 4.24 µm
Optical resolution (90% energy): 45:1
System accuracy (at T_amb= 23 ± 5°C): ± 1%¹⁾²⁾
Repeatability (at T_amb = 23 ± 5°C): ±0.5% or ±0.5°C²⁾
Temperature resolution (digital): 0.1 K
Exposure time (90% signal)³⁾: 10 ms
Emissivity / Gain (adjustable via programming keys or software): 0.100 – 1.100
Transmissivity / Gain (adjustable via programming keys or software): 0.100 – 1.100
Signal processing (parameter adjustable via programming keys or software, respectively):
peak hold, valley hold, average, extended hold function with threshold and hysteresis

General Specifications

Environmental rating: IP 65 (NEMA-4)
Ambient temperature:
sensing head: -20°C … 85°C (50°C with laser ON)
electronics: -20°C … 85°C
Storage temperature:
sensing head: -40°C … 85°C
electronics: -40°C … 85°C
Relative humidity: 10 – 95%, non condensing
Vibration: IEC 60068-2-6 (sinus shaped), IEC 60068-2-64 (broadband noise)
Shock: IEC 60068-2-27 (25G and 50G)
Weight:
sensing head: 600 g
electronics: 420 g

Electrical Specifications

Outputs / analog: 0/4 – 20 mA, 0 – 5/10 V, thermocouple J, K
Output / alarm: 24 V / 50 mA (open collector)
Optional: relay: 2 x 60 V DC/42 V AC_eff; 0.4 A; optically isolated
Outputs/ digital (optional): USB, RS232, RS485, Modbus RTU, Profibus DP, Ethernet
Output impedances:mA max. 500 Ω (with 5 – 36 V DC)
mV min. 100 kΩ load impedance
thermocouple 20 Ω
Inputs: programmable functional inputs for external emissivity adjustment, ambient temperature compensation, trigger (reset of hold functions)
Cable length: 3 m (standard), 8 m, 15 m
Power supply: 8-36 V DC
Current draw: max. 160 mA
Laser 635 nm: 1mW, ON/OFF via electronic box or software
