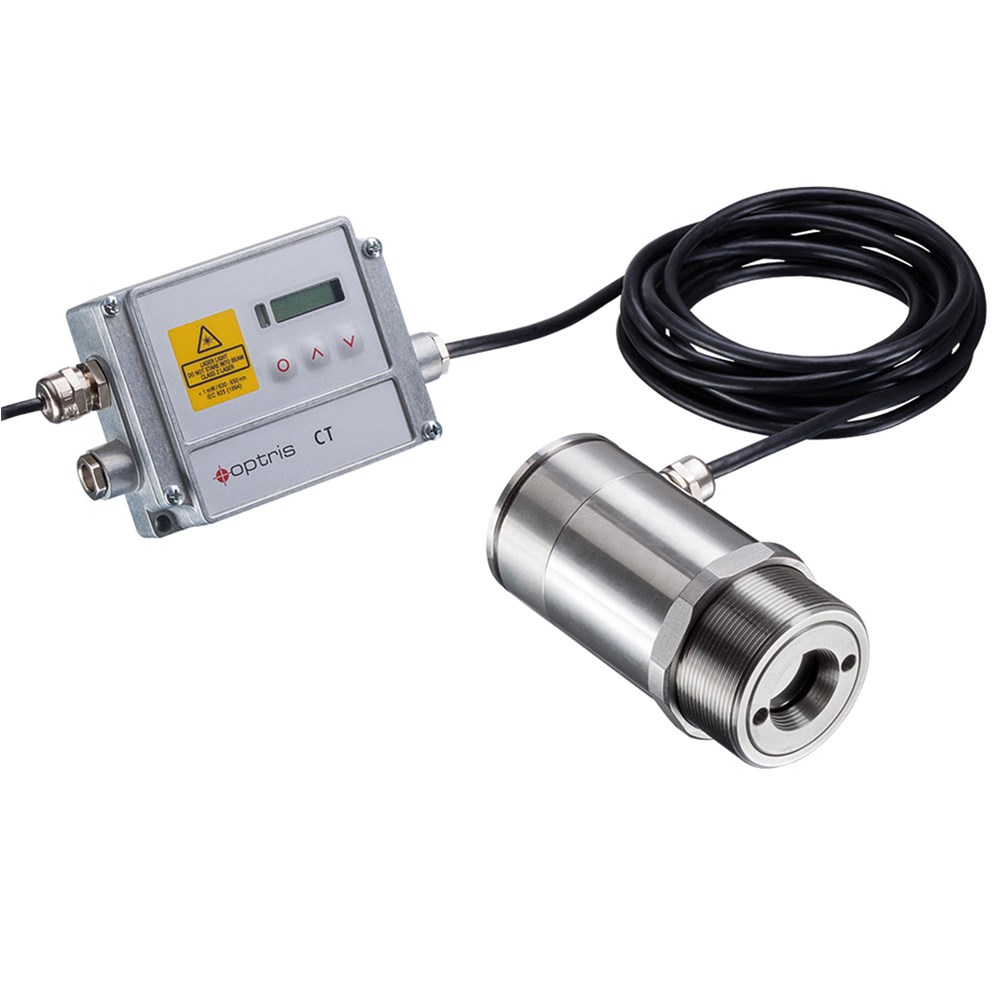

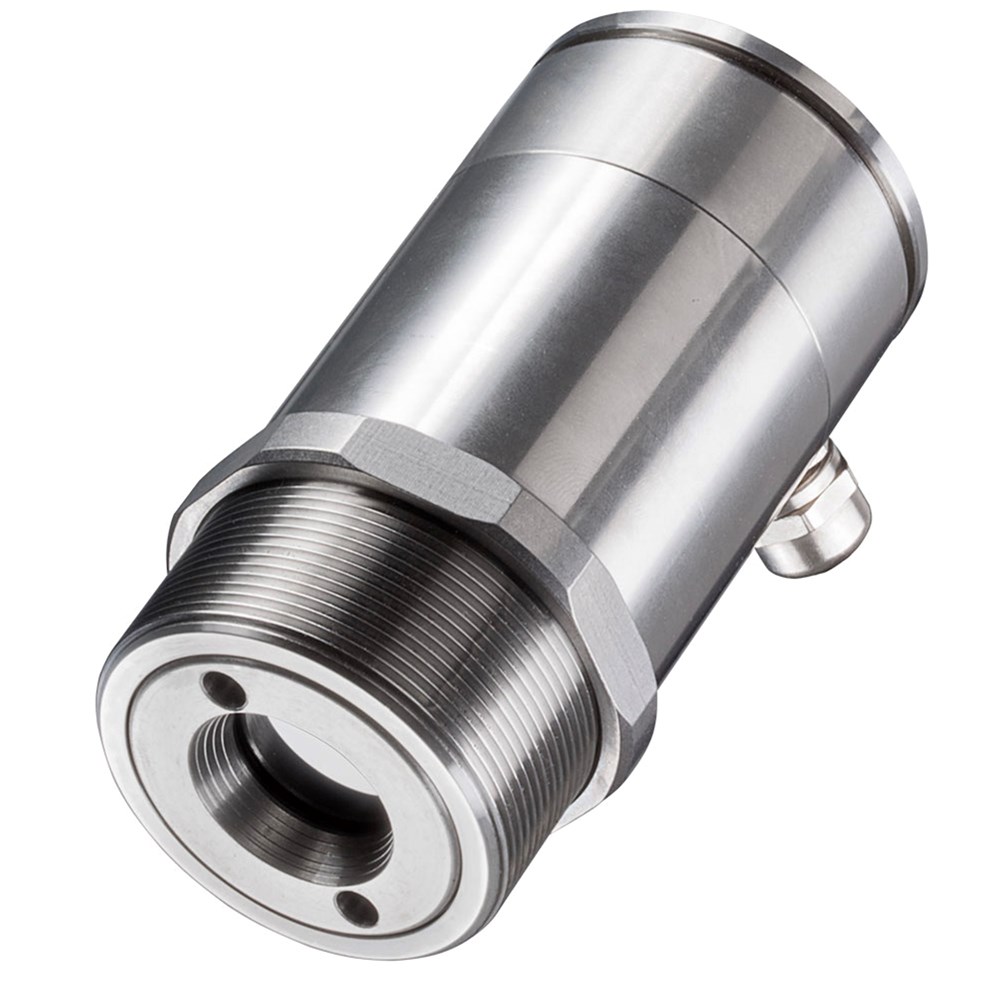

IR thermometer optris CTlaser 3M for measurement of metals with low temperatures
Product Information
The infrared thermometer optris CTlaser 3M is perfectly suited for measurements of low metal temperatures and composite materials. It offers a temperature range between 50°C and 1,800°C and can be employed in up to 85°C without additional cooling.
Due to its extremely short response time of 1 ms, the highly efficient IR thermometer allows the surveillance of fast processes and measures reliably and precisely even on smallest measuring fields of up to 0.7 mm. Selectable outputs and various digital interfaces offer a high variability for the evaluation of the measured data.
- Temperature range:
50°C to 1,800°C - Spectral range: 2.3 µm
- Response time: 1 ms
Applications
The IR thermometer optris CTlaser 3M, like its related pyrometers CTlaser 1M and 2M, has been designed for measurement of metallic surfaces. Temperature controls during welding, soldering, and forging-die forming processes do not pose a problem.
The spectral range of 2.3 µm allows for precise measurement of composite material surfaces made of e.g. carbides, polymeric plastics, or ceramics.
Software
The temperature analysis software optris Compact Connect has been developed specifically for the extensive documentation and analysis of temperature measurement data of our stationary infrared thermometers. It is license-free and included in every pyrometer shipment.
Measurement Specifications
- Temperature range1) (scalable via software):’
50°C … 400°C (3ML)100°C … 600°C (3MH)
150°C … 1000°C (3MH1)
200°C … 1500°C (3MH2)
250°C … 1800°C (3MH3) - Spectral range: 2.3 µm
- Optical resolution (90% energy):60:1 (3ML)
100:1 (3MH)
300:1 (3MH1-H3) - System accuracy2) (at Tamb= 23 ± 5°C): ± (0.3% of reading + 2°C)
- Repeatability (at Tamb = 23 ± 5°C): ± (0.1% of reading + 1°C)
- Temperature resolution (digital): 0.1 K
- Exposure time (90% signal)3): 1 ms
- Emissivity / Gain (adjustable via programming keys or software): 0.100 – 1.100
- Transmissivity / Gain (adjustable via programming keys or software): 0.100 – 1.100
- Signal processing (parameter adjustable via programming keys or software, respectively):
peak hold, valley hold, average, extended hold function with threshold and hysteresis
General Specifications
- Environmental rating: IP 65 (NEMA-4)
- Ambient temperature:
sensing head: -20°C … 85°C (50°C with laser ON)
electronics: -20°C … 85°C - Storage temperature:
sensing head: -40°C … 85°C
electronics: -40°C … 85°C - Relative humidity: 10 – 95%, non condensing
- Vibration: IEC 60068-2-6 (sinus shaped), IEC 60068-2-64 (broadband noise)
- Shock: IEC 60068-2-27 (25G and 50G)
- Weight:
sensing head: 600 g
electronics: 420 g
Electrical Specifications
- Outputs / analog: 0/4 – 20 mA, 0-5/10 V, thermocouple J, K
- Output / alarm: 24 V / 50 mA (open collector)
- Optional: relay: 2 x 60 V DC/42 V ACeff; 0.4 A; optically isolated
- Outputs/ digital (optional): USB, RS232, RS485, Modbus RTU, Profibus DP, Ethernet
- Output impedances:mA max. 500 Ω (with 5 – 36 V DC)
mV min. 100 kΩ load impedance
thermocouple 20 Ω - Inputs: programmable functional inputs for external emissivity adjustment, ambient temperature compensation, trigger (reset of hold functions)
- Cable length: 3 m (standard), 8 m, 15 m
- Power supply: 8-36 V DC
- Current draw: max. 160 mA
- Laser 635 nm: 1mW, ON/OFF via electronic box or software
Versions
Part number: temperature range / spectral range / optics / response time
- OPTCTL3ML: 50-400°C / 2.3 μm / 60:1 / 1 ms
- OPTCTL3MH: 100-600°C / 2.3 μm / 100:1 / 1 ms
- OPTCTL3MH1: 150-1000°C / 2.3 μm / 300:1 / 1 ms
- OPTCTL3MH2: 200-1500°C / 2.3 μm / 300:1 / 1 ms
- OPTCTL3MH3: 250-1800°C / 2.3 μm / 300:1 / 1 ms
