Optris CSvideo 2M
Optris CSvideo 2M
Sku: OPT-CSvideo-2M

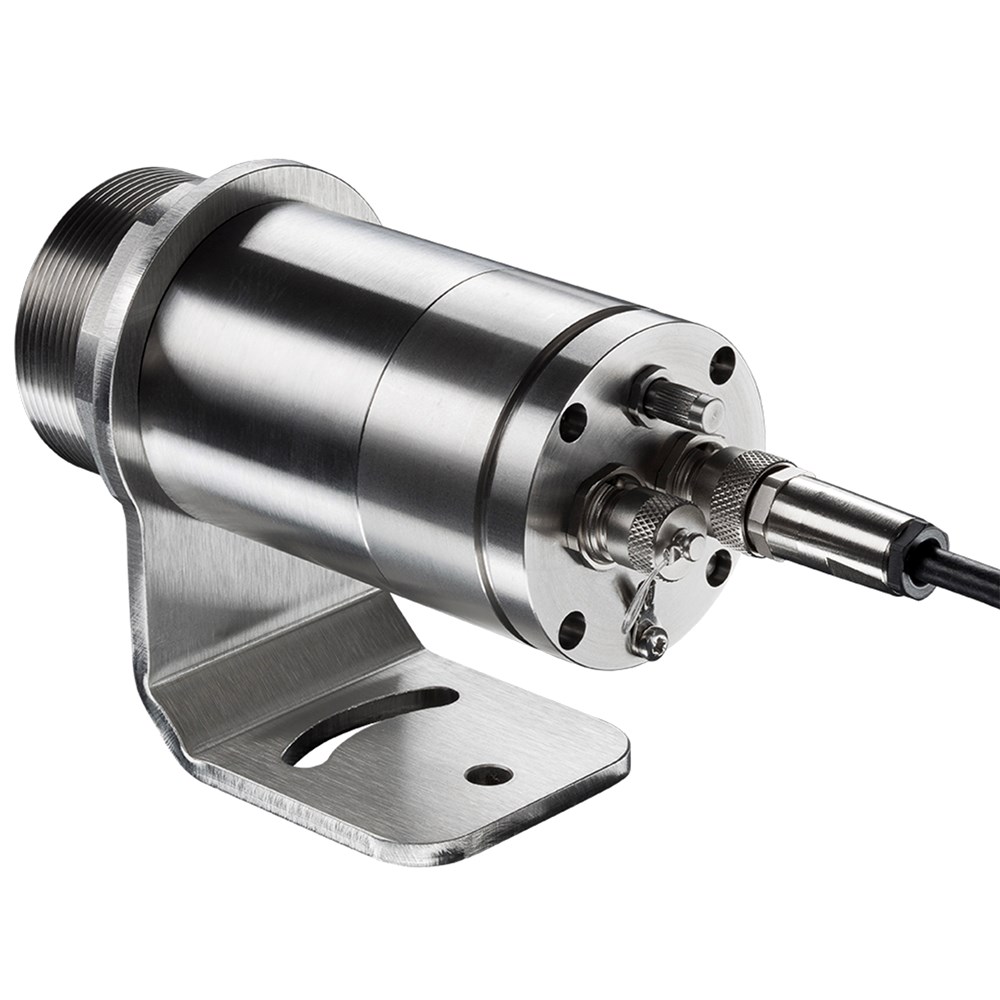

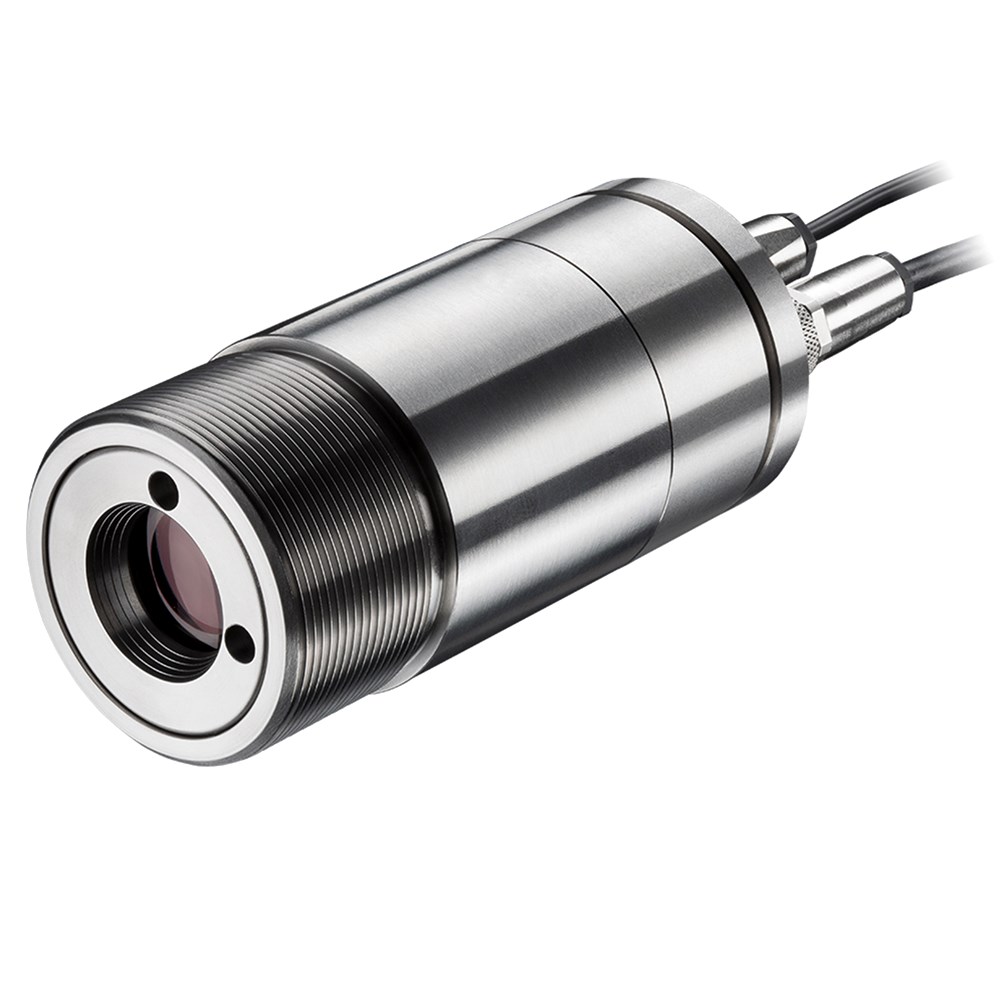

Infrared thermometer for metals with adjustable focus, crosshair laser & video sighting
Product Information
The video pyrometer optris CSvideo 2M, with its integrated video sighting allows for an additional visor assistance. Combined with the innovative and patented crosshair laser, it offers a reliable and precise measuring field adjustment in hard-to-reach areas and in cases of measuring objects being so hot the laser visor is not visible anymore.
- Temperature range:
250°C to 1,600°C - Spectral range: 1.6 µm
- Response time: 10 ms
Applications
The optris CSvideo 2M has been designed with a short-wave spectral range of 1.6 µm and is thus the ideal video pyrometer for metal processing industries. It measures metals and ceramics precisely and reliably.
Software

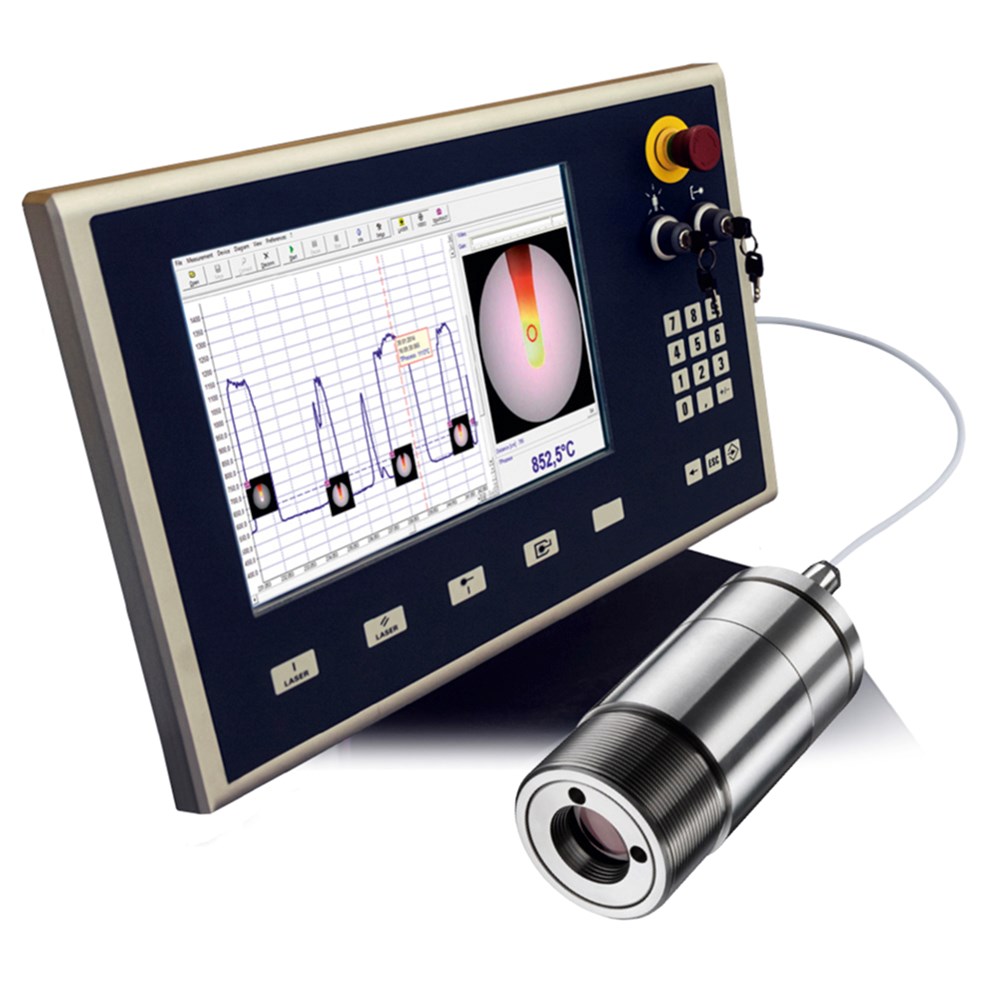

The temperature analysis software optris Compact Connect has been developed specifically for the extensive documentation and analysis of temperature measurement data of our stationary infrared thermometers. It is license-free and included in every pyrometer shipment.
Measurement Specifications
- Temperature range (scalable via software):
250°C … 800°C (2ML)
385°C … 1600°C (2MH) - Spectral range: 1.6 µm
- Optical resolution (90% energy):
150:1 (2ML)
300:1 (2MH) - System accuracy (at Tamb = 23 ± 5°C): ± (0,3% of reading + 2°C)
- Repeatability (at Tamb = 23 ± 5°C): ± (0,1% of reading + 1°C)
- Temperature resolution: 0.1 K
- Response time (90% signal): 10 ms
- Emissivity / Gain (adjustable via sensor or software): 0.100 – 1.100
- IR window correction (adjustable via software): 0.100 – 1.000
- Signal processing (parameter adjustable via software):
peak hold, valley hold, average, extended hold function with threshold and hysteresis
General Specifications
- Environmental rating: IP 65 (NEMA-4) front mountable at vacuum processes (up to 10-3 mbar)
- Ambient temperature: -20°C … 70°C (50°C with laser ON)
- Storage temperature: -40°C … 85°C
- Relative humidity: 10 – 95%, non condensing
- Vibration:IEC 60068-2-6 (sinus shaped), IEC 60068-2-64 (broadband noise)
- Shock: IEC 60068-2-27 (25G and 50G)
- Weight: 600 g
Electrical Specifications
- Output / analog: 4-20 mA
- Loop resistance: max. 1000 Ω1)
- Output / alarm: 0-30 V/500 mA (open collector)
- Output/ digital: USB 2.0
- Video Sighting: digital (USB 2.0), 640 x 480 px, FOV 3.1° x 2.4°
- Cable length (analog + alarm): 3 m, 8 m, 15 m
- Cable length (USB): 5 m (incl.), 10 m, 20 m
- Power supply: 5-28 V DC
- Current draw:
45 mA at 5 V
20 mA at 12 V
12 mA at 24 V
Versions
Part number: temperature range / spectral range / optics
- OPTCSV2ML: 250-800°C / 1.6 μm / 150:1
- OPTCSV2MH: 385-1,600°C / 1.6 μm / 300:1
