Nickel Plated Double-Ended Beam Load Cell
Nickel Plated Double-Ended Beam Load Cell
Sku: LC-5103

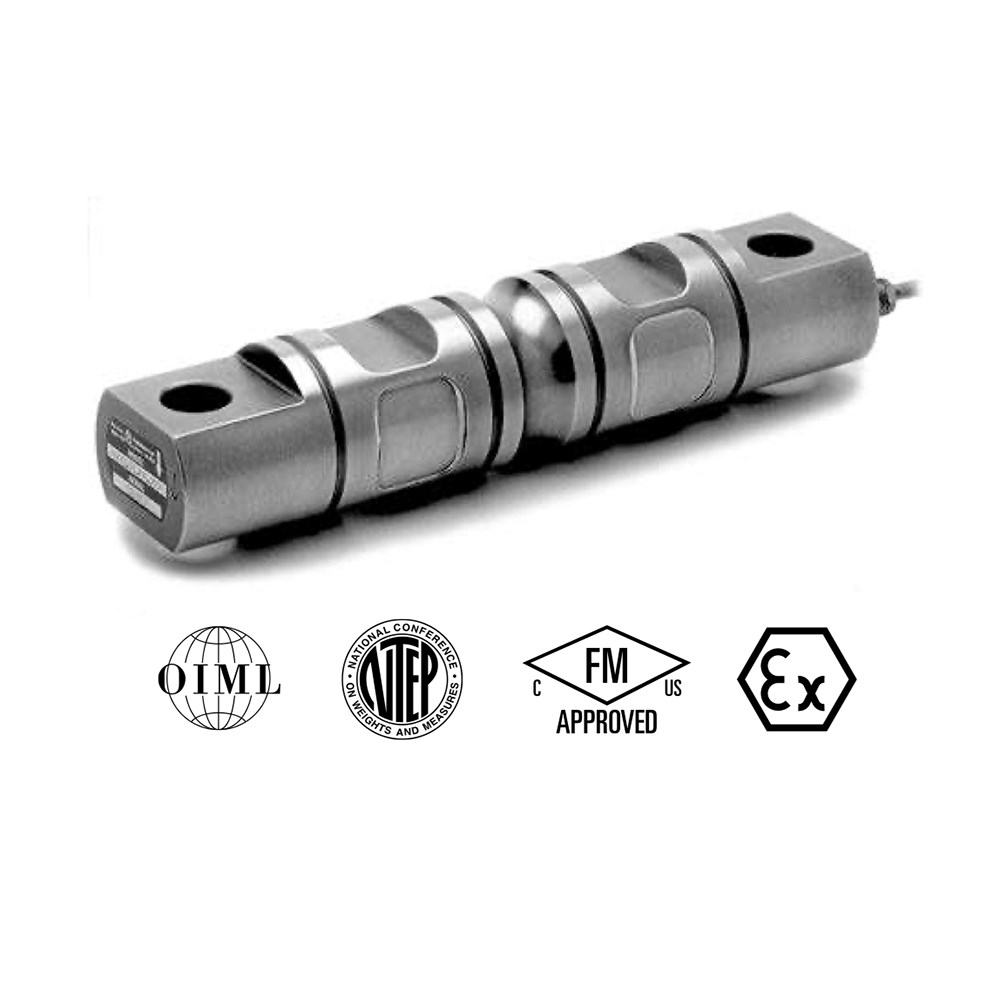

5103 Nickel Plated Double-Ended Beam Load Cell
Product Information
5103 transducers are double-ended, centre-loaded shear beam load cells. The 5103 is constructed of nickel-plated alloy steel. These products are suitable for tank weighing systems, low-cost weighbridges, and axle weighers. A reliable sealing is ensured by the proprietary TRANSEAL potting compound and additional mechanical protection of the strain gage area. A specially designed mounting arrangement is available, providing the ideal solution for vessel/tank weighing.
- Capacities: 5k to 250k lbs
- Low profile construction
- Nickel-plated alloy steel construction
- Certified to OIML R60 3000d, NTEP CoC—10000d
- Sealing: IP67 (DIN 40.050)
- Optional
- FM approved for use in hazardous locations
- ATEX versions are available for use in potentially explosive atmospheres
* Only 20k–100k lbs (9.1–45.4 t) capacities are OIML approved.
FSO—Full-Scale Output
All specifications subject to change without notice.
|
SPECIFICATIONS |
||||
|
PARAMETER |
VALUE |
UNIT |
||
|
Standard capacities (Emax) |
2.3*, 4.5*, 9.1, 13.6, 18.2, 22.7, 27.2, 45.4, 68*, 91*, 113* |
t |
||
|
Standard capacities (Emax) |
5k*, 10k*, 20k, 30k, 40k, 50k, 60k, 100k, 150k*, 200k*, 250k* |
lbs |
||
|
Accuracy class according to OIML / NTEP |
NTEP |
Non-Approved |
C3 |
|
|
Max. number of verification intervals (nlc) |
IIIL 10000 |
D3 |
3000 |
|
|
Minimum verification interval (vmin) |
|
|
Emax/10,000 |
|
|
Rated output (= S) |
3.0 |
mV/V |
||
|
Rated output tolerance |
0.003 |
±mV/V |
||
|
Zero balance |
1.0 |
±% FSO |
||
|
Combined error |
0.0200 |
0.0300 |
0.0200 |
±% FSO |
|
Non-repeatability |
0.0100 |
0.0100 |
0.0100 |
±% FSO |
|
Minimum dead load output return |
0.0250 |
0.0300 |
0.0167 |
±% applied load |
|
Creep error (30 minutes) |
|
0.0300 |
0.0245 |
±% applied load |
|
Creep error (20 minutes) |
0.030 |
0.0450 |
0.0053 |
±% applied load |
|
Temp. effect on min. dead load output |
(0.001) |
0.0140 |
0.0070 |
±% FSO/5°C (/°F) |
|
Temperature effect on sensitivity |
(0.0008) |
0.0070 |
0.0050 |
±% applied load/5°C (/°F) |
|
Minimum dead load |
0 |
% Emax |
||
|
Maximum safe overload |
150 |
% Emax |
||
|
Ultimate overload |
300 |
% Emax |
||
|
Maximum safe side load |
100 |
% Emax |
||
|
Deflection at Emax |
0.5/0.6/1.1/0.5/0.5/0.5/0.6/0.5/0.5/0.9/0.9 |
mm |
||
|
Excitation voltage |
5 to 12 |
V |
||
|
Maximum excitation voltage |
15 |
V |
||
|
Input resistance |
700±7 |
Ω |
||
|
Output resistance |
700±7 |
Ω |
||
|
Insulation resistance |
≥5000 |
MΩ |
||
|
Compensated temperature range |
–10 to +40 |
°C |
||
|
Operating temperature range |
–40 to +80 |
°C |
||
|
Storage temperature range |
–40 to +90 |
°C |
||
|
Element material (DIN) |
Nickel-plated alloy steel |
|
||
|
Sealing (DIN 40.050 / EN 60.529) |
IP67 |
|
||
|
Recommended torque on fixation bolts |
12 to 14 |
N*m |
||
