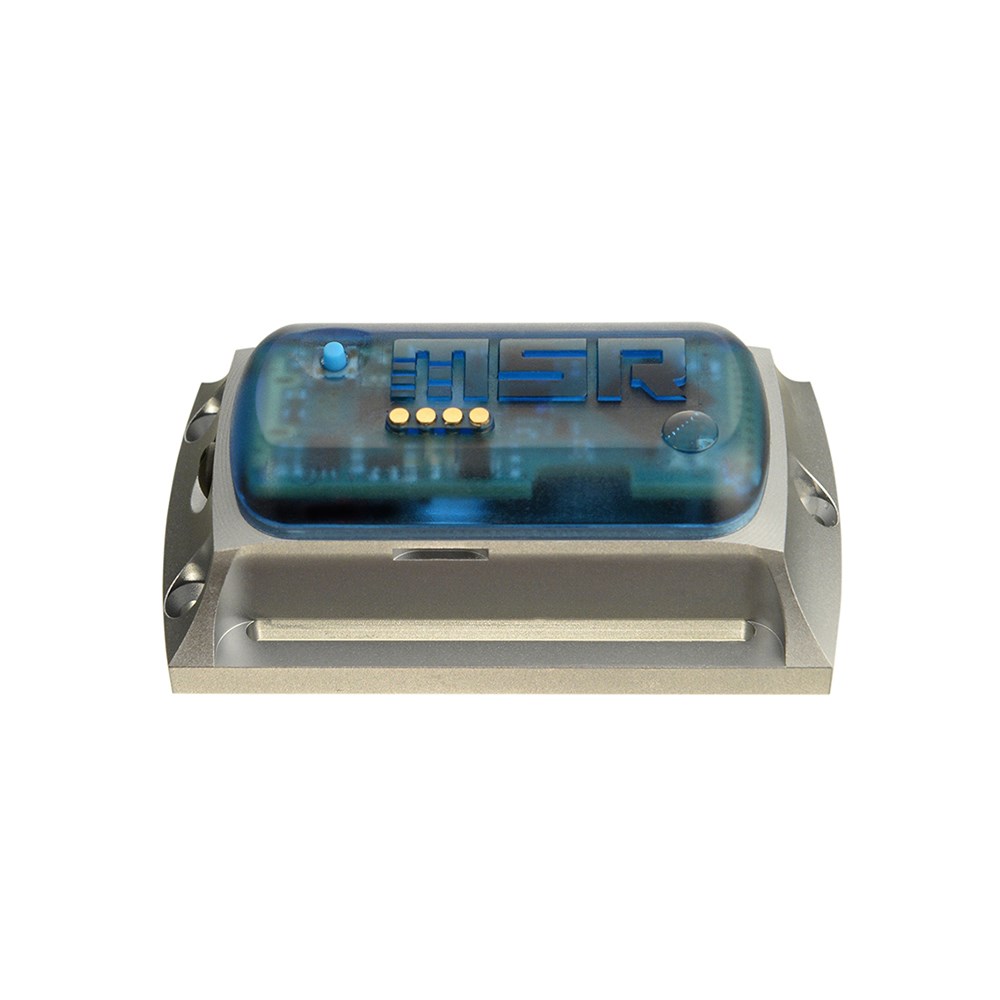

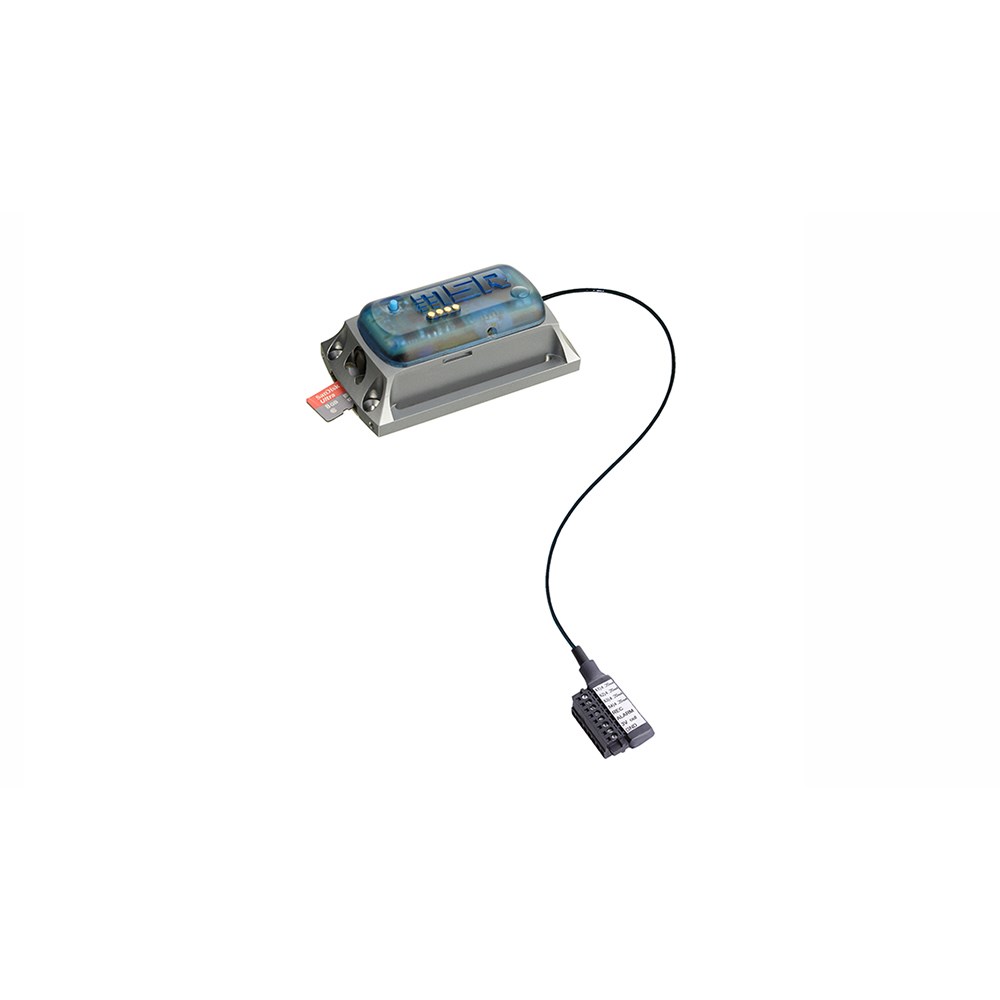

MSR160: High Speed Data Logger with 4 Analogue Inputs and Gigantic Memory Capacity

Sku: MSR-160

Multi-purpose mini data logger with 4 analogue inputs with freely selectable input configuration (see Configurator) for connecting conventional sensors with analogue output
Measuring/storage up to 1000/s per channel
Up to 5 additional internal sensors available for temperature, humidity, air pressure and attitude (see Configurator)
Up to 2 internal sensors can be replaced with external ones (see Configurator)
Stores up to 2 m or 1 bn (SDcard) total readings

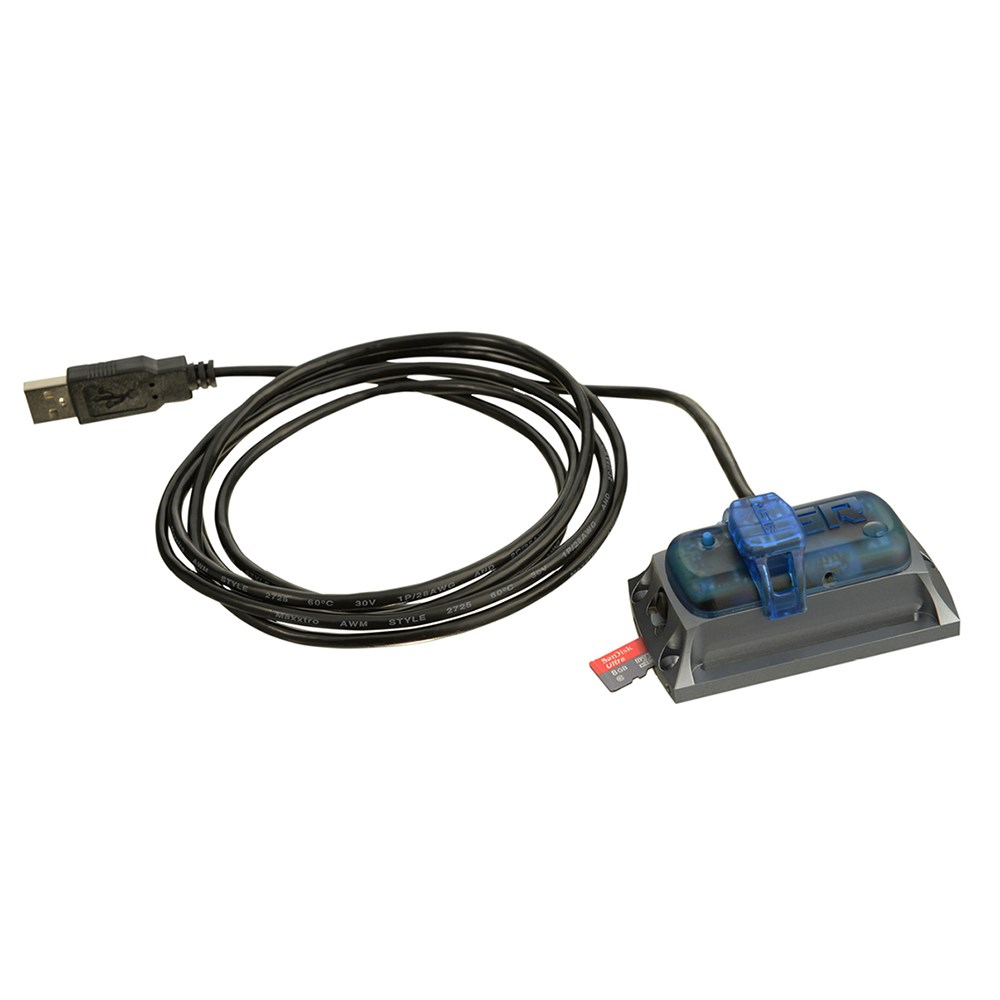

Lithium-polymer battery (1000 mAh), rechargeable via USB port
Small in size, rugged anodised aluminium case, PC
Free MSR PC software: MSR Setup, Reader, Viewer and Online software

Technical details can be found on the Configurator tab.

Memory capacity:	Over 2 million measurement values, with microSD card over 1 billion.
Push-button:	Set bookmark or start and stop recording.
LED:	Blue: Record indicator Red: Alarm indicator Yellow: Battery charge indicator
Power supply:	Lithium-polymer battery (1000 mAh), rechargeable via USB port
Interface:	USB
Operation conditions:	Temperature: -20…+65 °C
Storage conditions:	Temperature: +5…+45 °C (ideal storage conditions for the battery) Humidity: 10…95 % relative humidity, non-condensing
Standards:	The MSR160 complies with EU-Directives RoHS/WEEE.

Our software is scanned for viruses with Microsoft Defender.

MSR pc software (standard) (2024-12-06, v6.10.01, MD5: 37caa7e48daef7a56c03c48ff4604a60)
MSR160 firmware update (2024-12-12, v2.44, MD5: ffc88226227c568a7e75f716471e0f28)

For more infomation click here
