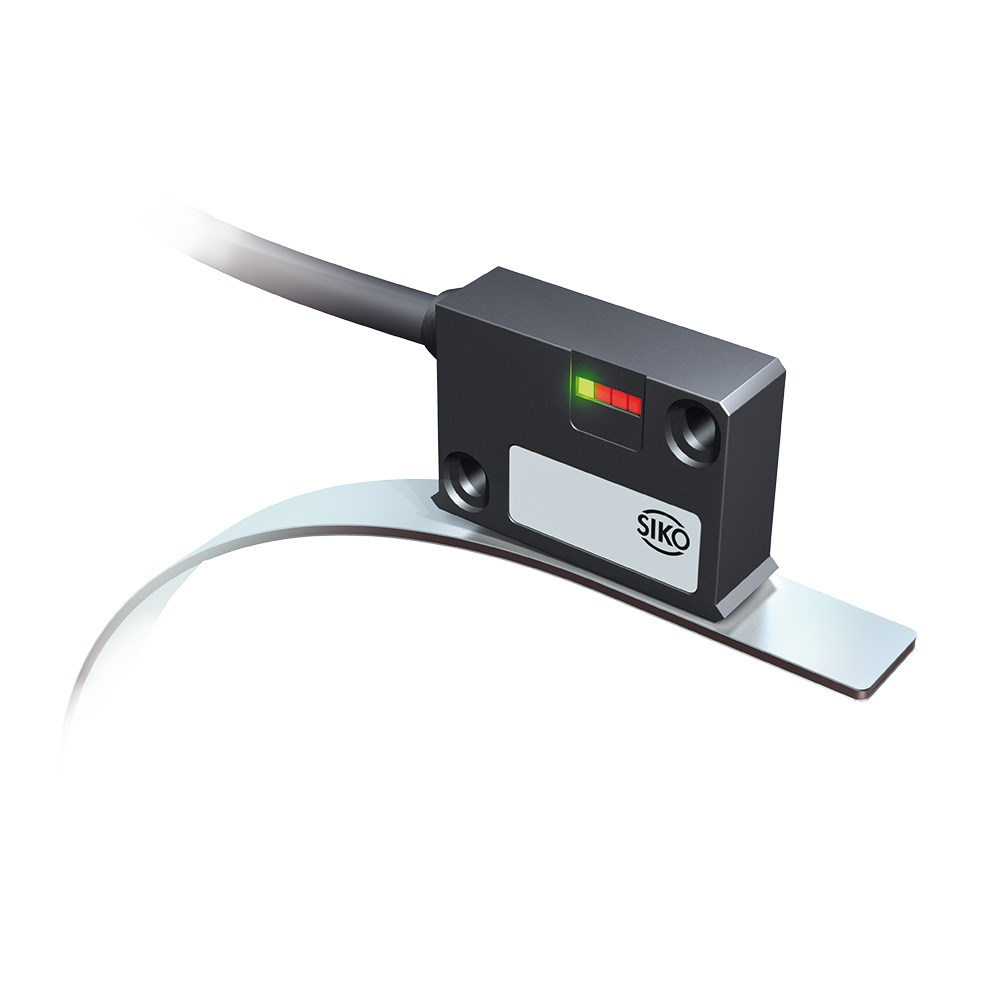

Magnetic sensor MSK5000
Magnetic sensor MSK5000
Sku: SIK-MSK5000
Incremental, digital interface, resolution 1 μm, scaling factor 1250
Product Information
- Max. resolution 1 μm
- Repeat accuracy ±0.01 mm
- Repeat accuracy of ±1 increment
- Status LED display
- Works with MB500/1 magnetic tape, MR500 magnetic ring, MBR500 magnetic tape ring
- Reading distance ≤2 mm
- Max. 200000 pulses/revolution in combination with MR500 or MBR500 (160 poles)
- Optionally with reference point R or flexible reference marks FR
Mechanical data
|
Feature |
Technical data |
Additional information |
|---|---|---|
|
Housing |
synthetic material ABS black |
K design |
|
zinc die-cast/aluminum |
M design, aluminum front cover |
|
|
zinc die-cast |
ZM design |
|
|
Sensor/band reading distance |
0.1 … 2 mm |
O, I reference signals |
|
0.1 … 1.5 mm |
R reference signal |
|
|
0.4 … 1 mm |
FR reference signal |
|
|
Sensor/ring reading distance |
0.1 … 2 mm |
O, I reference signals |
|
0.1 … 1.5 mm |
R reference signal |
|
|
Cable sheath |
PUR, suitable for drag-chain use |
6, 8-wire ø5-0.4 mm |
|
Cable bending radius |
5x cable diameter |
static |
|
7.5x cable diameter |
dynamic |
|
|
Service life of cable |
>5 million cycles |
under the following test conditions: |
Travel/circumferential speed
|
|
|
Travel/circumferential speed Vmax April |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Resolution/ |
0.001/1250 |
4.00 |
3.20 |
1.60 |
0.80 |
0.32 |
0.20 |
0.10 |
0.05 |
0.03 |
0.01 |
|
0.005/250 |
20.00 |
16.00 |
8.00 |
4.00 |
1.60 |
1.00 |
0.50 |
0.25 |
0.13 |
0.06 |
|
|
0.01/125 |
25.00 |
25.00 |
16.00 |
8.00 |
3.20 |
2.00 |
1.00 |
0.50 |
0.25 |
0.12 |
|
|
0.025/50 |
25.00 |
25.00 |
25.00 |
20.00 |
8.00 |
5.00 |
2.50 |
1.25 |
0.63 |
0.30 |
|
|
0.05/25 |
25.00 |
25.00 |
25.00 |
25.00 |
16.00 |
10.00 |
5.00 |
2.50 |
1.25 |
0.61 |
|
|
0.1/12.5 |
25.00 |
25.00 |
25.00 |
25.00 |
25.00 |
20.00 |
10.00 |
5.00 |
2.50 |
1.21 |
|
|
Pulse interval [μs] |
0.20 |
0.25 |
0.50 |
1.00 |
2.50 |
4.00 |
8.00 |
16.00 |
32.00 |
66.00 |
|
|
Counting frequency [kHz] |
1250.00 |
1000.00 |
500.00 |
250.00 |
100.00 |
62.50 |
31.25 |
15.63 |
7.81 |
3.79 |
|
Electrical data
|
Feature |
Technical data |
Additional information |
|---|---|---|
|
Operating voltage |
6.5 … 30 V DC |
reverse polarity protected |
|
4.75 … 6 V DC |
without reverse polarity protection |
|
|
Current consumption |
<25 mA |
at 24 V DC, unloaded |
|
<75 mA |
loaded |
|
|
Output circuit |
PP, LD (RS422) |
|
|
Output signals |
A, /A, B, /B, I, /I, R, /R, FR, /FR |
|
|
Output signal level high |
>UB – 2.5 V |
PP |
|
>2.5 V |
LD |
|
|
Output signal level low |
<0.8 V |
|
|
Latency |
1.5 µs |
|
|
Pulse width of reference signal |
1 or 4 increment(s) |
|
|
Real-time requirement |
speed-proportional signal output |
|
|
Type of connection |
open cable end |
|
|
plug connector |
7/8-pole |
|
|
D-Sub |
9-pole |
Signal pattern
The logical condition of signals A and B is not defined in reference to the index signal I or the reference signal R. It can deviate from the signal form.
Reference or index signal with 4 increments (360°) signal length is only valid from the 5th counting step onwards. A corresponding delay should be taken into consideration after switching on the operating voltage.
Pulse interval
System data
|
Feature |
Technical data |
Additional information |
|---|---|---|
|
Resolution |
0.001, 0.005, 0.01, 0.025, 0.05, 0.1 mm |
|
|
Scaling factor |
12.5, 25, 50, 125, 250, 1250 |
|
|
Linearity deviation |
±20 µm |
at TU = 20° C, reading distance 1 mm |
|
Repeat accuracy |
±10 µm |
|
|
Measuring range |
∞ |
|
|
Circumferential speed |
depending on scaling factor and pulse interval |
see table |
|
Travel speed |
depending on resolution and pulse interval |
see table |
Ambient conditions
|
Feature |
Technical data |
Additional information |
|---|---|---|
|
Ambient temperature |
-10 … 70 °C |
|
|
Storage temperature |
-30 … 80 °C |
|
|
Relative humidity |
100 % |
condensation admissible |
|
EMC |
EN 61000-6-2 |
interference resistance / immission |
|
EN 61000-6-4 |
emitted interference / emission |
|
|
Protection category |
IP67 |
EN 60529 |
|
Shock resistance |
500 m/s2, 11 ms |
EN 60068-2-27 |
|
Vibration resistance |
100 m/s2, 5 … 150 Hz |
EN 60068-2-6 |
Ordering table
|
Ordering Key location |
Feature |
Order data |
Specifications |
Additional information |
|
A |
Operating voltage |
A10 |
6.5 … 30 V DC |
|
|
11 |
4.75 … 6 V DC |
A voltage drop is to be expected with increasing cable length. This must be taken into account in the electrical design. |
||
|
B |
Design |
BK |
plastic housing |
|
|
M |
metal housing with status LEDs |
|||
|
ZM |
metal housing without status LEDs |
not for operating voltage 4 and output circuit LD |
||
|
C |
Type of connection |
CE1 |
open cable end |
|
|
E6X |
bullet connector without mating connector |
|||
|
E8X |
D-SUB 9-pin without mating connector |
|||
|
extension cables on request |
||||
|
D |
Cable length |
D… |
01.0 … 20 m, in steps of 1 m |
|
|
others on request |
||||
|
E |
Output circuit |
EPP |
push-pull |
|
|
LD |
Line Driver |
|||
|
F |
Reference signal |
FO |
without |
|
|
I |
periodic index |
index signal every 5 mm |
||
|
R |
fixed reference |
|||
|
FR |
flexible reference |
only for ZM design and MB500/1 magnetic tape |
||
|
G |
Linear resolution/ radial scaling factor |
G… |
0.001/1250, 0.005/250, 0.010/125, 0.025/50, 0.050/25, 0.1/12.5 |
|
|
others on request |
||||
|
H |
Pulse interval |
H… |
0.2, 0.25, 0.5, 1, 2.5, 4, 8, 16, 32, 64 |
Ordering key
SIK-MSK5000 – A – B – C – D – E – F – G – H
