Load cell HPS
Product Information

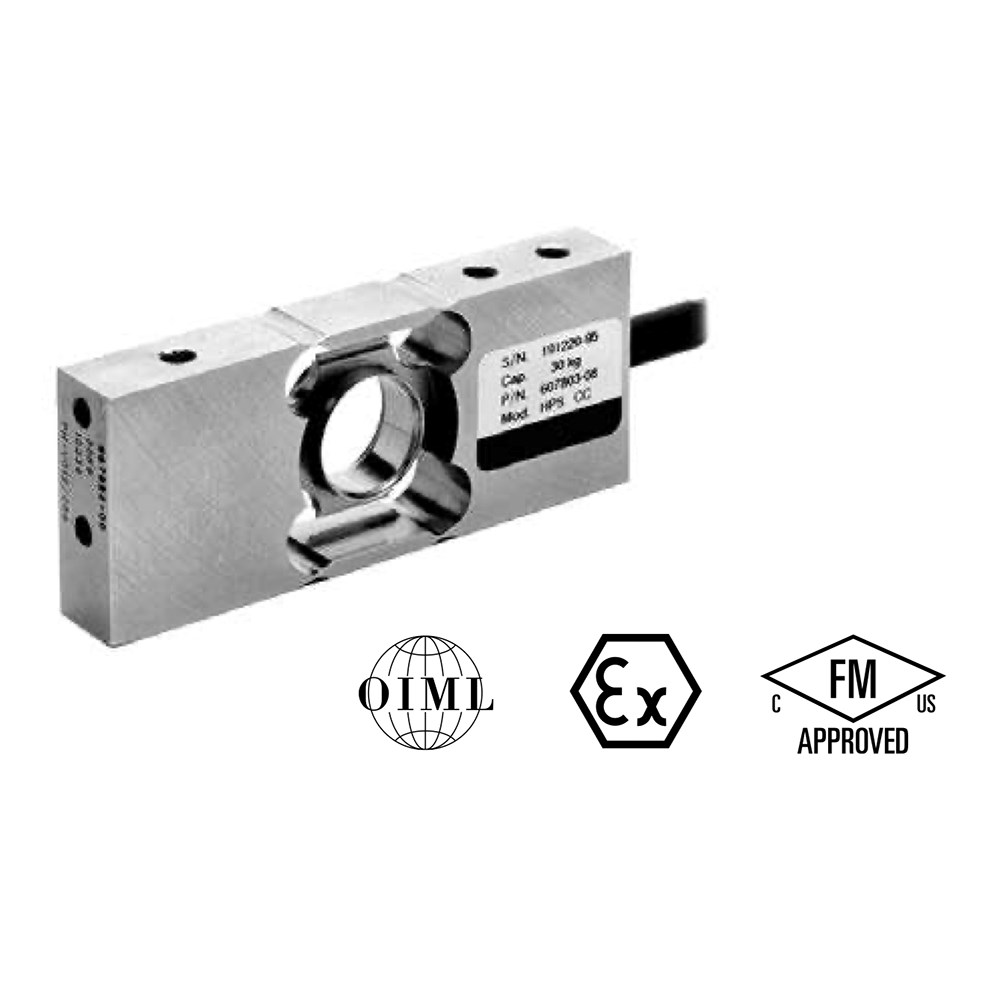

The Load cell HPS is a unique fully welded all stainless steel single point (moment insensitive) load cell. This product is suitable for low capacity platform scales, multi-head packaging machines, check weighers, loss-in-weight feeders, belt scales, and general process weighing applications. The unique construction ensures that this product can be used successfully in harsh environments found in the food, chemical, and allied industries. This product meets the stringent Weights and Measures requirements throughout Europe.
- Capacities: 6–60 kg
- Fully welded, stainless steel construction
- Hermetically sealed, IP66 and IP68
- Certified to OIML R-60, 3000d
- Comprehensive mounting hole facility
- Moment insensitive, platform size to 350 x 350 mm
- Optional
- ATEX and FM certified versions are available for use in potentially explosive atmospheres
- IP69K full hermetic construction with true glass to metal seal
|
SPECIFICATIONS |
|
|
|
|
PARAMETER |
VALUE |
UNIT |
|
|
Standard capacities (Emax) |
6, 12, 30, 60 |
kg |
|
|
Accuracy class according to OIML R-60 |
Non-Approved |
C3 |
|
|
Max. no. of verfication intervals |
|
3000 |
|
|
Min. verification interval (Vmin) |
|
Emax/12000 |
|
|
Rated output (=S) |
2 |
mV/V |
|
|
Rated output tolerance |
0.2 |
±% mV/V |
|
|
Zero balance |
1.0 |
±% FSO |
|
|
Combined error |
0.0500 |
0.0200 |
±% FSO |
|
Non-repeatability |
0.0200 |
0.0100 |
±% FSO |
|
Minimum dead load output return |
0.0500 |
0.0167 |
±% applied load |
|
Creep error (30 minutes) |
0.0600 |
0.0245 |
±% applied load |
|
Temperature effect on min. dead load output |
0.0250 |
0.0058 |
±% FSO/5°C (/°F) |
|
Temperature effect on sensitivity |
0.0250 |
0.0045 |
±% applied load/5°C (/°F) |
|
Eccentric load effect* |
0.03 |
±% FSO |
|
|
Minimum dead load |
0 |
% Emax |
|
|
Maximum safe overload |
150 |
% Emax |
|
|
Ultimate overload |
300 |
% Emax |
|
|
Maximum safe side load |
100 |
% Emax |
|
|
Deflection at Emax |
0.24±0.02 / 0.19±0.01 / 0.15±0.01 / 0.22±0.03 |
mm |
|
|
Excitation voltage |
5 to 12 |
V |
|
|
Maximum excitation voltage |
15 |
V |
|
|
Input resistance |
400±6 |
400±6 |
Ω |
|
Output resistance |
350±7 |
Ω |
|
|
Insulation resistance |
≥5000 |
MΩ |
|
|
Compensated temperature range |
–10 to +40 |
°C |
|
|
Operating temperature range |
–40 to +80 |
°C |
|
|
Storage temperature range |
–40 to +90 |
°C |
|
|
Element material (DIN) |
Stainless steel 1.4542 |
|
|
|
Sealing (DIN 40.050 / EN60.529) |
IP66 and IP68 |
|
|
|
Recommended torque on fixation bolts |
6 |
N*m |
|
HPS Datasheet
Applications
- Food platforms
- Process weighing
- Multi-head packaging machines
- Marine hybrid scales
For more information,click here!
