Kobold KZA
Product Information

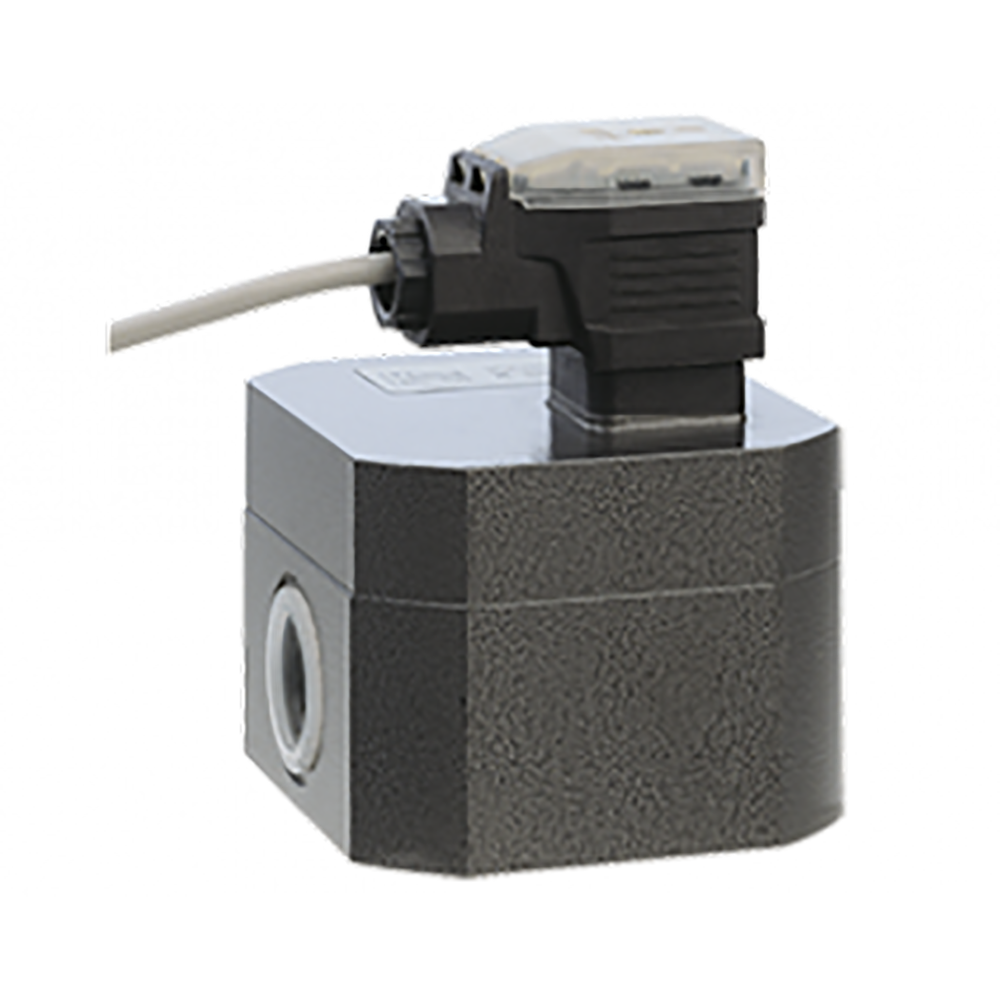

The Kobold gear wheel flow meter model KZA for viscous liquids is a low-cost flow meter. The movement system consists of a gear set propelled by the flow. The instrument movement bearing is designed for the types KZA-1810 and KZA-1865 as radial and axial gliding bearings. The type KZA-1816 has a ball bearing.
The pick-up is separated from the measuring chamber and registrates the gear resolution contactlessly through the housing wall.
Easy maintenance, slight pressure loss, small weight and low noise level are the outstanding features of this flow meter.
Applications
- For all viscose, non-abrasive liquids like petroleum, grease, pastes, etc.
- Mixing and bathcing
- Hydraulics
Measuring range: 0.02 – 4 l/min … 1 – 200 l/min liquid
Viscosity range: max. 4000 mm²/s
Connection: G ¼, G 1 female thread
Material: aluminum
pmax: 160 bar
tmax: 120°C
Linearity: ±0.3 % … ±3 % of reading Pulse output
For more information, please click here.
