KOBOLD-DRG
Product Information

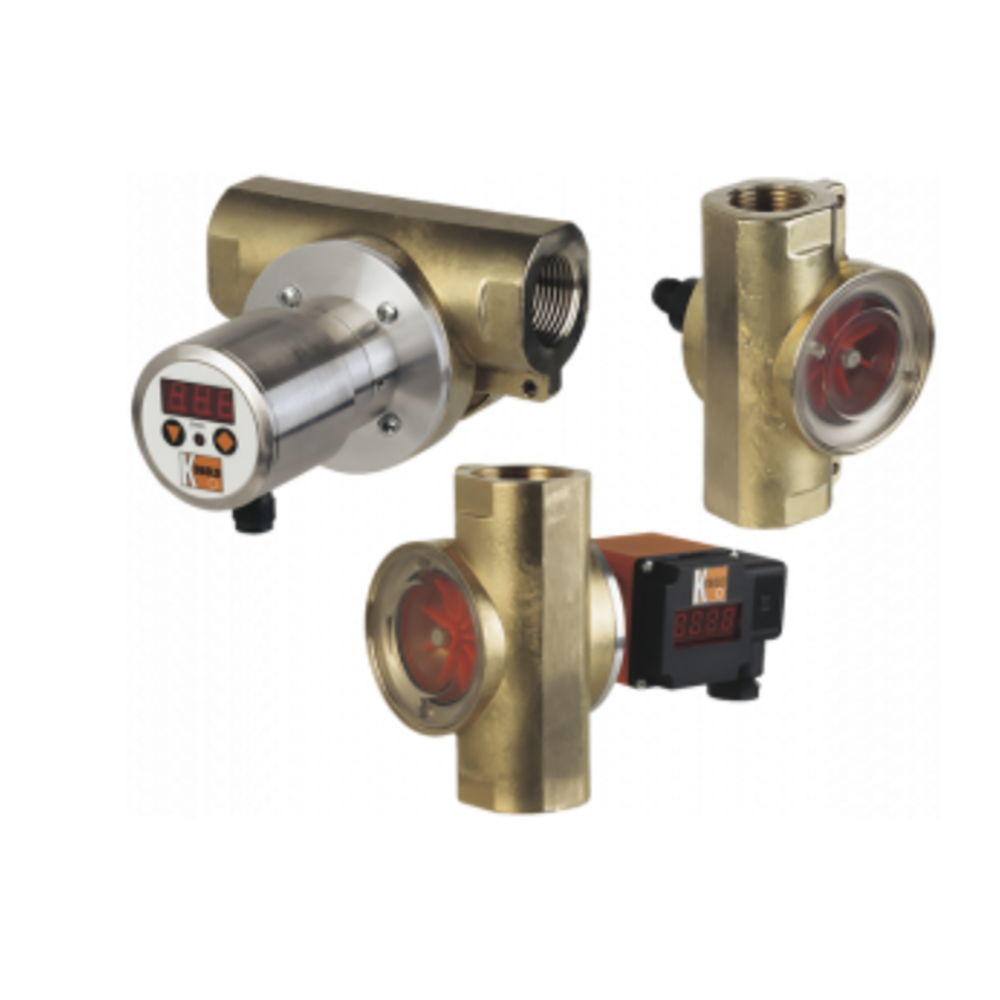

KOBOLD rotating vane flow meters series DRG are used for measuring and monitoring low viscous liquid.
Series DRG flow meters are working according to the well-known rotating vane principle. A magnet fitted in the can and hermetically sealed from the medium transfers the non-contacting rotary motion to a Hall-effect sensor mounted in the housing. The sensor converts the rotary motion proportional to the flow to a frequency signal.
A series connected electronics unit converts the signal to an analogue output, limit contacts or display.
Measuring range: 0.5 – 12 … 10 – 140 l/min water
Connection: G ? … G 1, ? … 1" NPT
Material: brass, stainless steel, polypropylene
pmax: 40 bar
tmax: 80°C
Accuracy: ±3 % of full scale
Options: Pulse output, Analogue output, contacts, contacts NPN / PNP, digital indicator, Relays, batcher
- Cooling water monitoring
- Agricultural Machinery
- PCB board industry
