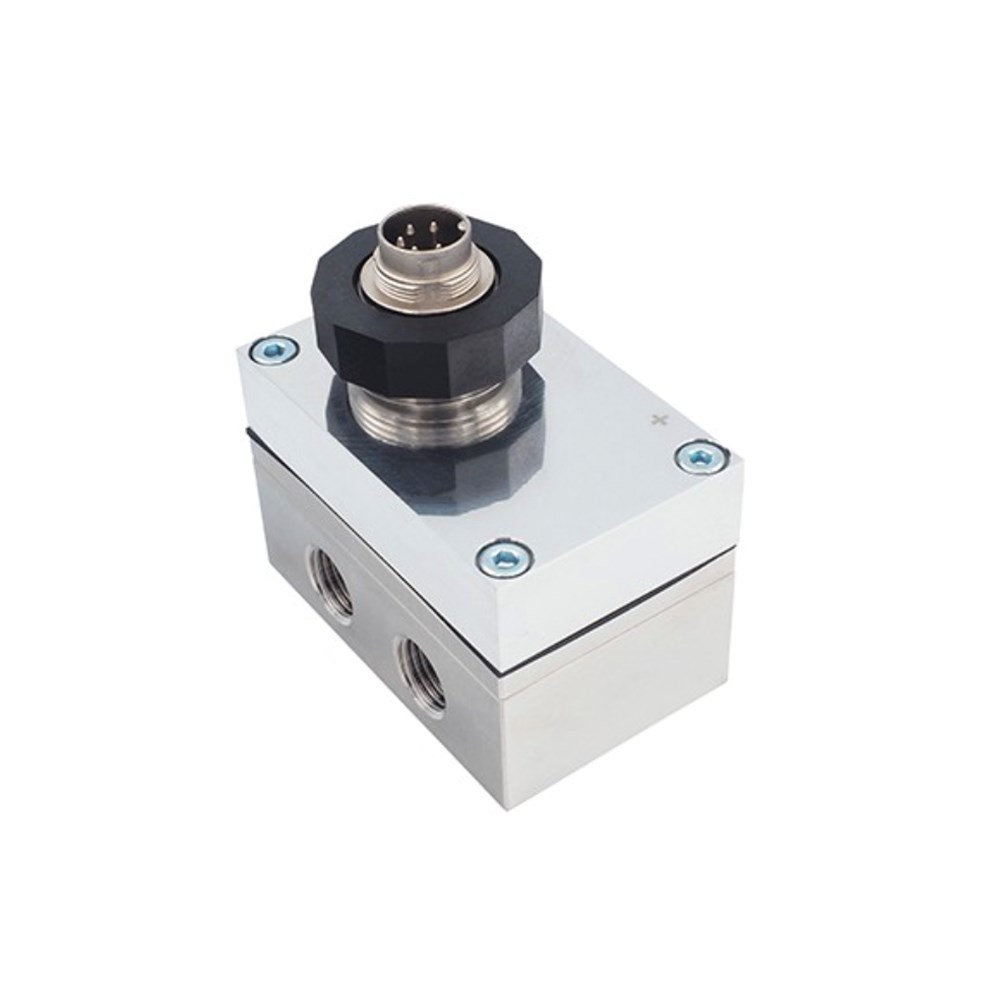

Keller Series PD-39X-Ei
Product Information
The differential pressure transmitters of the PD-39X-Ei series measure the pressure difference indirectly using two absolute pressure sensors. The dual-sensor design with numerical differential formation also outputs the line pressure values via the digital RS485 interface and guarantees a high overload resistance. The additional analog current or voltage output is primarily used to output the differential pressure range, which is freely rangeable within the line pressure range.
Intrinsically safe – suitable for use in explosive atmospheres.
| Pressure Ranges | 0…3 to 0…300 bar |
| Accuracy | ±0,05 %FS |
| Total Error Band | ± 0,1 %FS @ -10…80 °C |
| Temperature Range | -40…90 °C |
| Line Pressure | 0…3 to 0…300 bar |
| Interfaces | RS485, 4…20 mA, 0…10 V |
| Special Characteristics | Line pressure measurement |
