Keller Series 4LD
Product Information

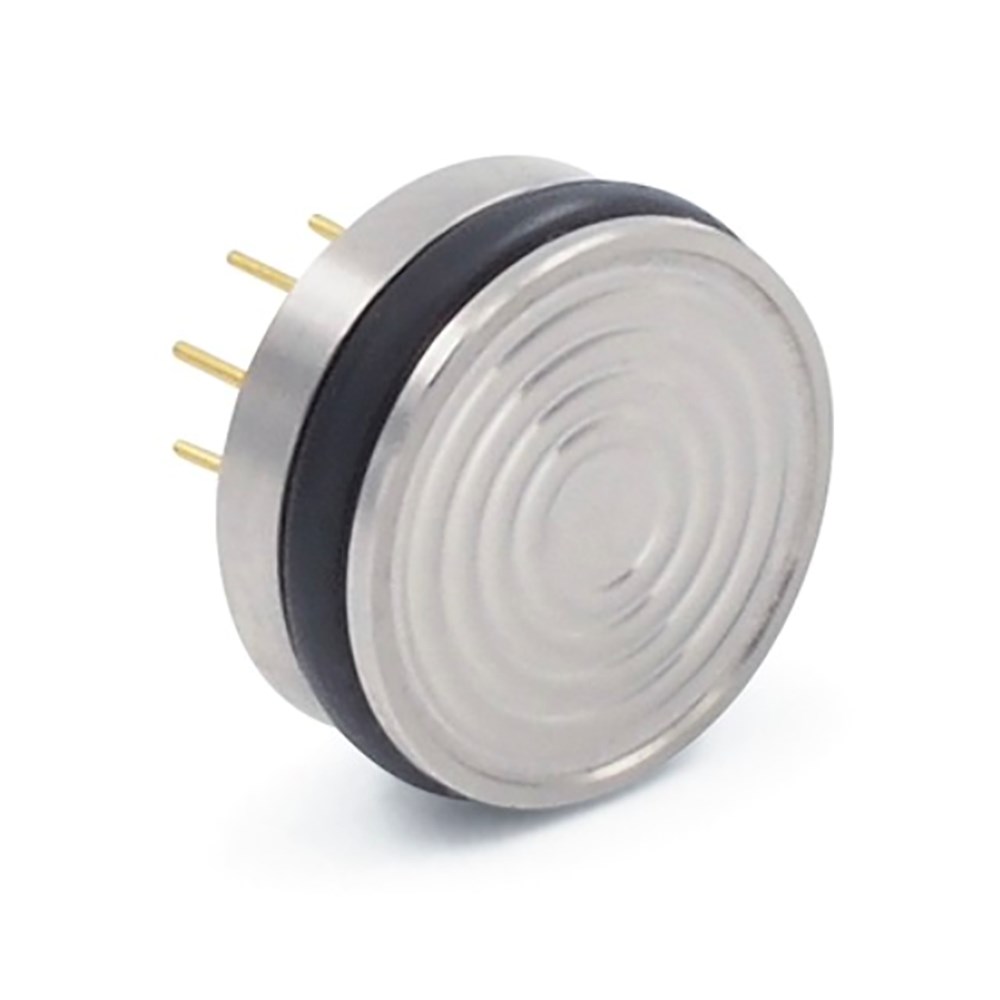

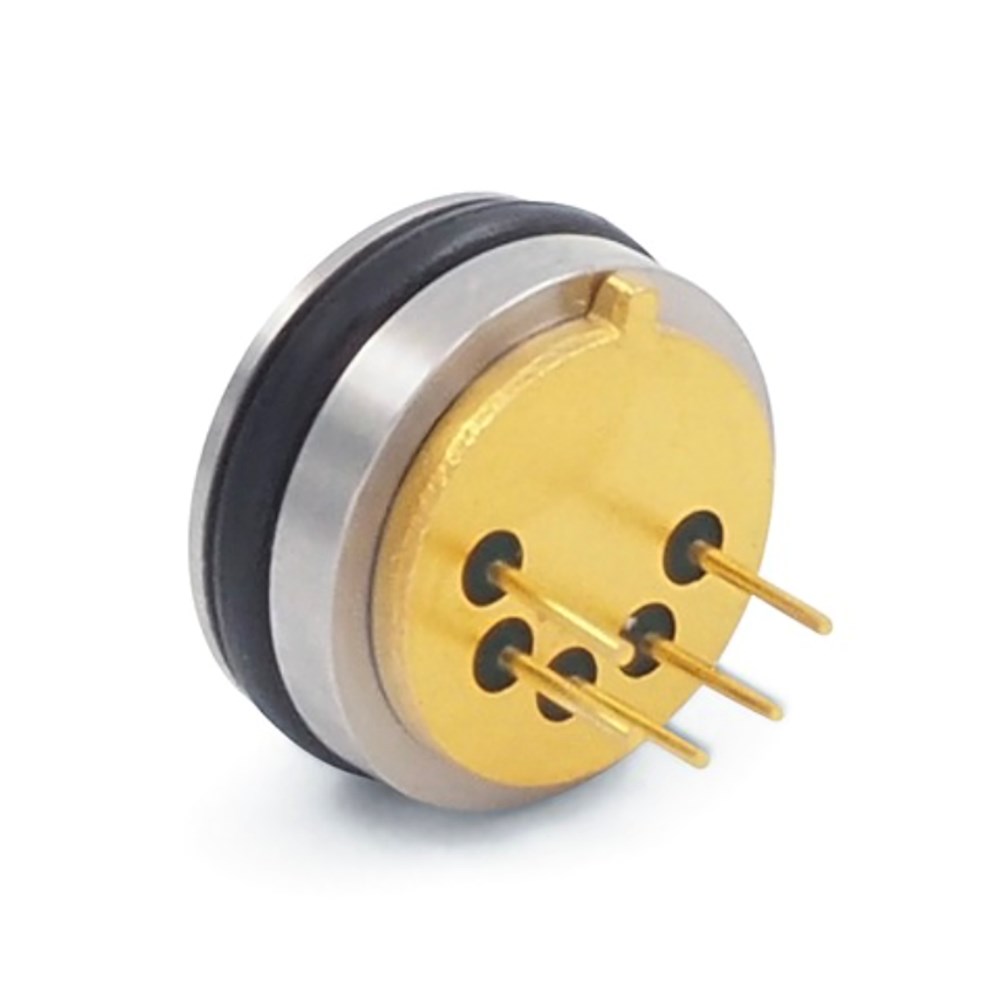

The pressure transmitters of the 4LD series use the chip-in-oil technology developed by KELLER, uniting a pressure measuring cell, digital temperature compensation and signal processing in a compact housing made of stainless steel or Hastelloy. The transmitters are extremely resistant to environmental influences and delivery highly accurate measurement results as a digital output signal. The I2C interface and the low supply voltages make it easy to integrate in microcontroller-based systems. The extremely low power consumption is ideal for battery-operated devices. The D line is perfect for IoT solutions.
| Pressure Ranges | 0…3 to 0…200 bar |
| Accuracy | ±0,15 %FS |
| Total Error Band | ±0,7 %FS @ 0…50 °C |
| Interfaces | I2C |
| Dimensions | ? 11 mm x 4,2 mm |
For more information, click here!
Datasheet
Manual
Installation Information OEM Pressure Sensors and OEM Pressure Transmitters
Documents
Communication Protocol I2C for D-Line Pressure Transmitters
KELLER Bus / Communication Protocols and Code Samples Overview
Brochure
Pressure Transmitters and Transducers
Flyer
