Keller Series 35X-Ei
Product Information

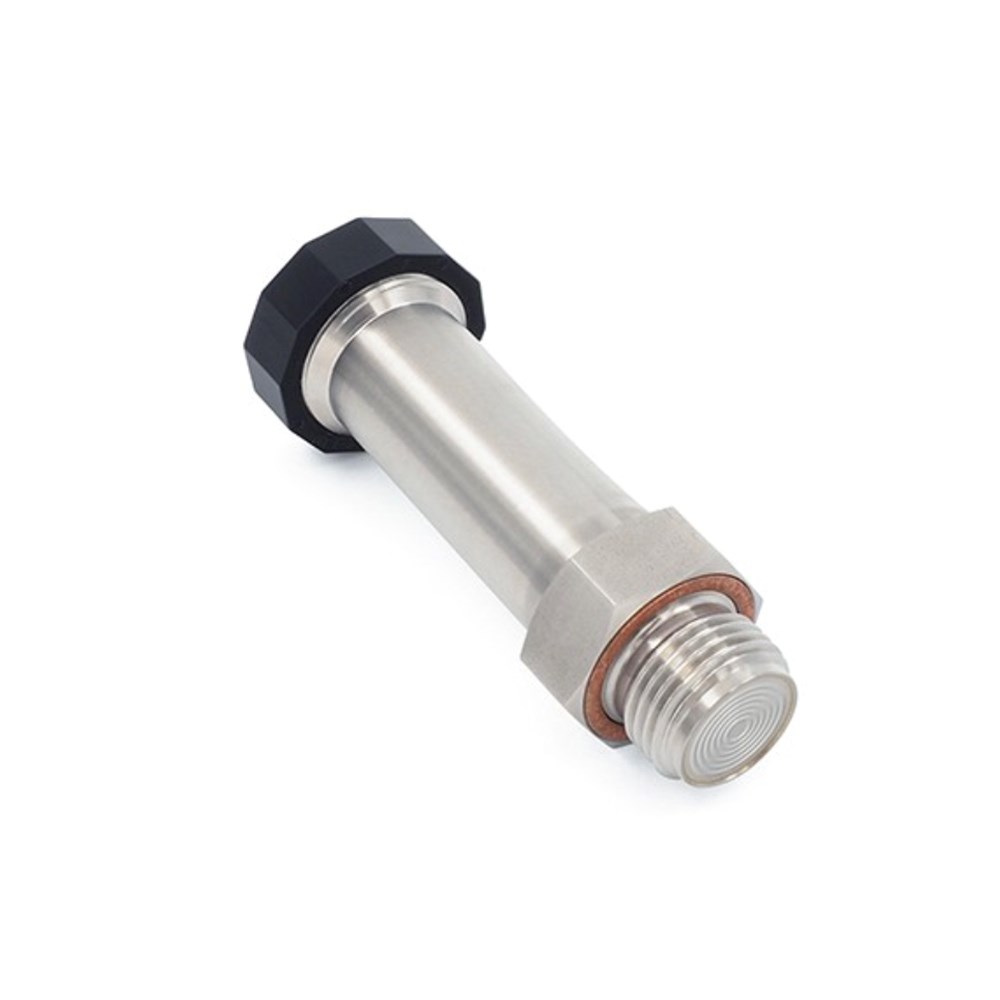

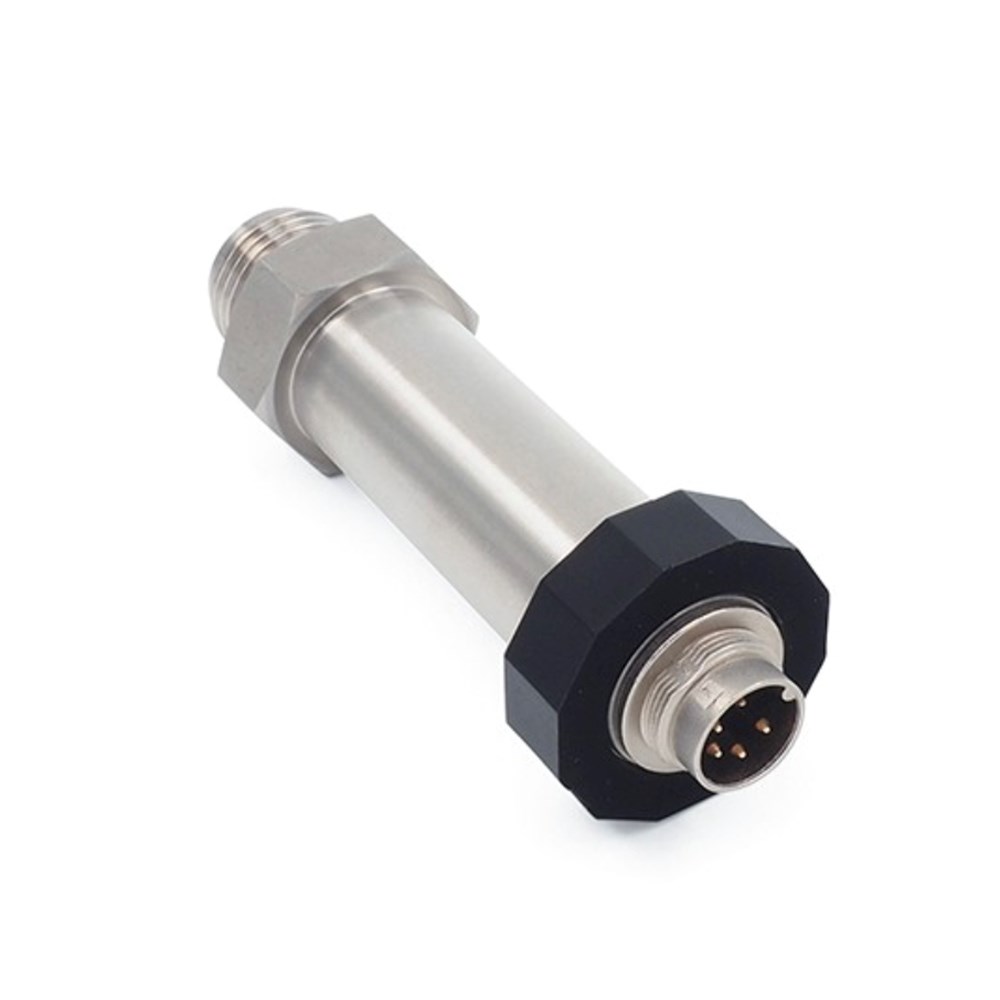

The front-flush pressure transmitters of the 35X-Ei series use digital compensation with a mathematical model to achieve exceptional accuracy of 0,05 %FS – in the temperature range from 10 to 40 °C, this value even corresponds to the total error band. In addition to the digital RS485 interface, the X-line transmitters have a rangeable, analog current or voltage output.
Intrinsically safe – suitable for use in explosive atmospheres.
| Pressure Ranges | 0…0,3 to 0…1000 bar |
| Accuracy | ±0,05 %FS |
| Total Error Band | ±0,1 %FS @ -10…80 °C |
| Interfaces | RS485, 4…20 mA, 0…10 V |
| Temperature Range | -40…120 °C |
For more information, click here!
Manual
Series 33X-Ei / 35X-Ei / 36XW-Ei / PD-39X-Ei
Datasheet
Series 33X-Ei / PD-33X-Ei / 35X-Ei / 36XW-Ei
Software
Document
Communication Protocol for X-Line Products
KELLER Bus / Communication Protocols and Code Samples Overview
PR «Range of Pressure Transmitters for Use in Hazardous Areas»
PR «Reference Pressure Transmitters / Top-Class Pressure Transmitters»
Articles
Explosion protection in pressure measurement technology
Brochure
