Keller Series 22-PS
Product Information

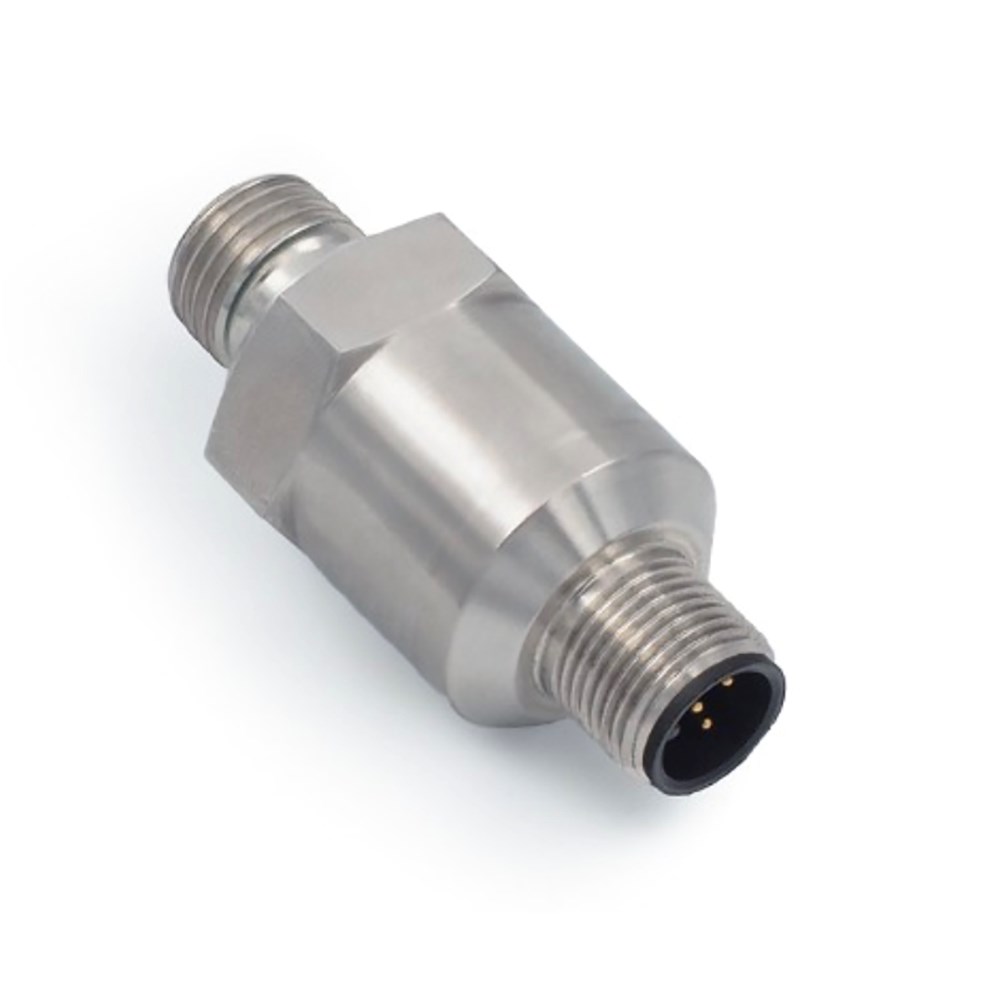

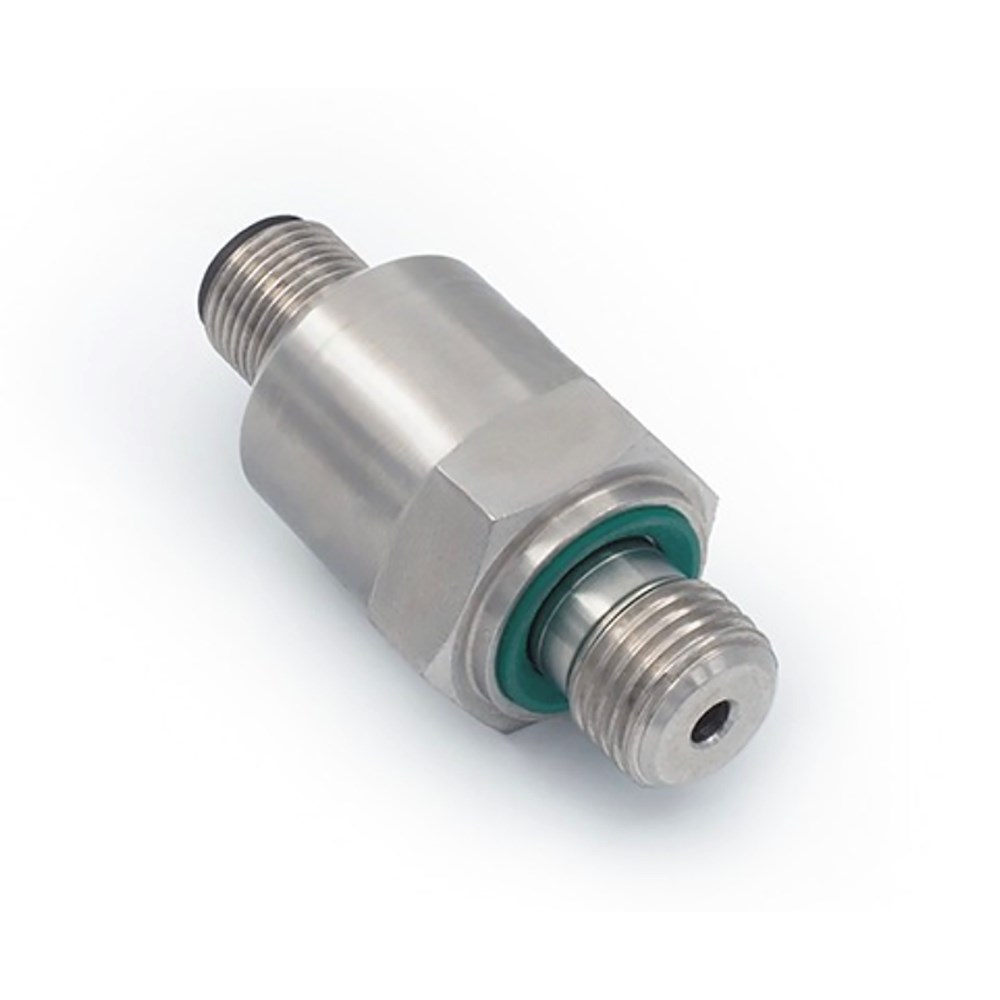

The programmable pressure switches of the 22-PS series are encased in a compact yet robust steel housing and are available with PNP or NPN wiring. The pressure switches can be supplied pre-configured at the customer's request. With the aid of the dV22-PP programming unit (available for purchase separately), the two switch outputs can be programmed at any time to be normally closed or normally open at a range of switching points with a window or hysteresis function.
| Pressure Ranges | 0…4 to 0…400 bar |
| Total Error Band | ±2,0 %FS @ 0…80 °C |
| Interfaces | 0,5…4,5 V, 2 Switches output |
| Special Characteristics | Programmable pressure switch |
| Homologation | None |
