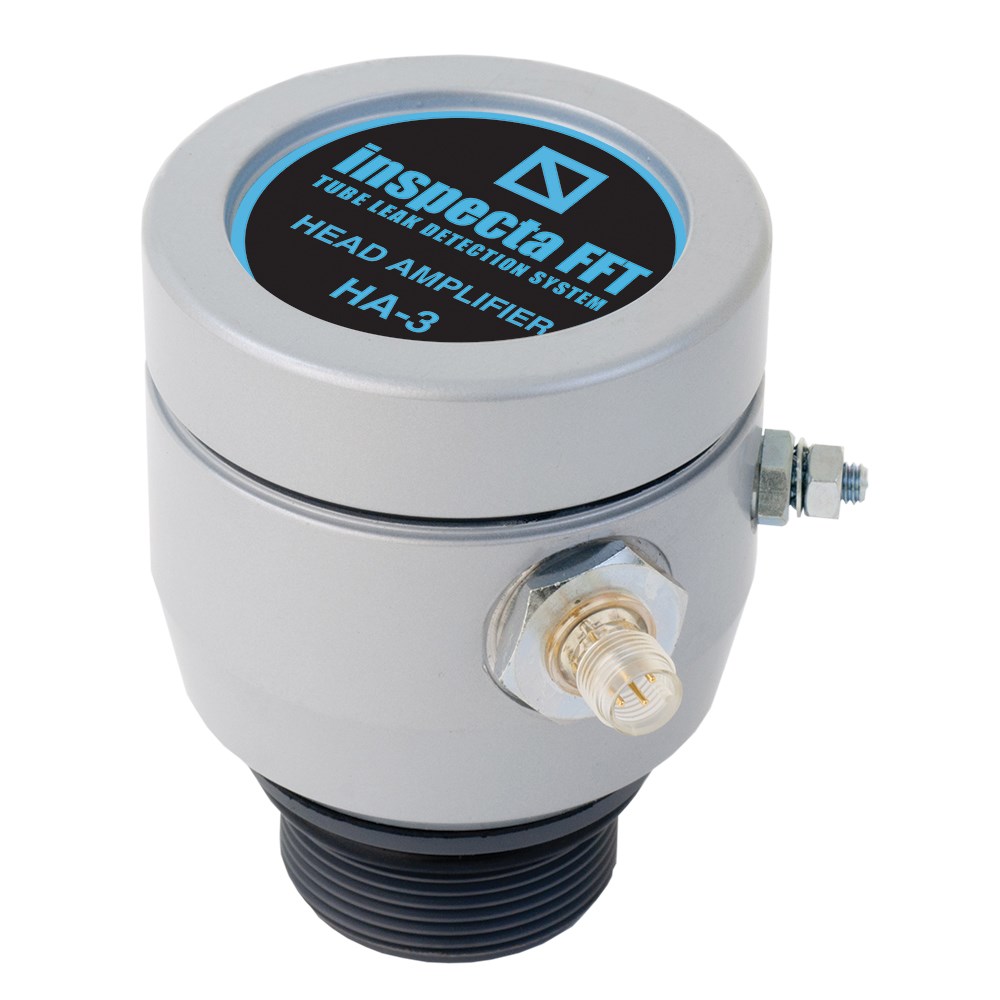

Inspecta HA-3
Product Information
The INSPECTA FFT-HA3 is a miniature industrial pressure transmitter encapsulated in a sealed acid and dust-proof capsule. The characteristic is selected to be most sensitive at the tube leak frequencies. Due to the harsh environmental conditions including high ambient temperatures this sensors has a limited life. The sensitivity drops off after a period of five years at which stage the sensor capsule can be changed by the station C&I department
- Miniture industrial pressure transmitter
- Acid and dust proof housing
- Sound analysers
| Gain adjustment via a ten-turn pot. | |
| Test points provided for the multimeter | |
| Input | Sound waves are picked up by the microphone |
| Bandwidth | 10KhZ |
| Output | 0 to 1.0Vac Isolated |
| Supply |
18 to 26V |
| Temperature | -10 to 65 °C |
| Mounting | Screw on PVC Fitting 50mm |
| Housing | Aluminium with PVC plug |
| Enviroment | IP65 |
| Weight | 0,5kg |
| Supply | Pin 1- 0Vdc, Pin 2 24Vdc |
| Signal | Pin 3 – ac signal output |
| Connection | Binder 713-3-09-0431-80-04 |
