Extensometer 178
Product Information

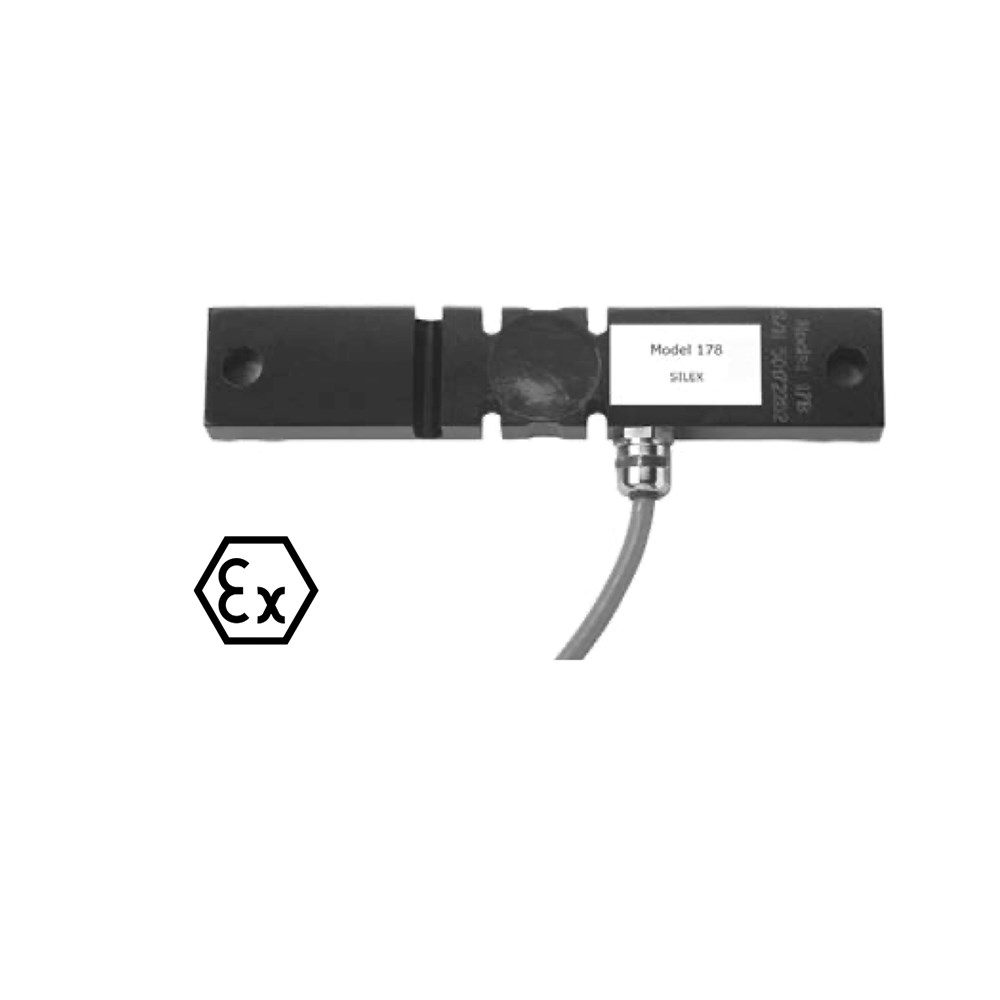

The Model 178 extensometer is a load sensor designed for force measurement on any load-bearing structure. This extensometer provides the total solution for weighing, level control, stress and fatigue monitoring. The design also allows multiple sensors to be permanently mounted for more complex stress profiling and analysis.
The Model 178 extensometer provides an ideal solution for non-intrusive level measurements for materials that are subject to uneven buildup, bridging, or sidewall collection. Also, liquids or wetted materials that are not suited for direct contact level measurement are an ideal application for the Model 178 extensometer.
The design of the Model 178 makes it an excellent solution for retrofitting existing structures without compromise of the integrity of the vessel or structure.
- Strain gage based sensor
- Alloy steel construction
- 2 Bolt holes
- IP66 Hermetically sealed protection
- Optional
- EEx ia IIC T4 Hazardous area approval
All specifications subject to change without notice.
|
SPECIFICATIONS |
||
|
PARAMETER |
VALUE |
UNIT |
|
Calibrated output |
1.7 |
mV/V at 500 με |
|
Overload capability (zero) |
300 |
% of rated output |
|
Overload capability (max) |
500 |
% of rated output |
|
Input resistance |
350±10 |
Ω |
|
Output resistance |
350±10 |
Ω |
|
Insulation resistance |
>2000 |
M Ω |
|
Excitation, recommended |
10 |
VDC |
|
Excitations, range |
5-20 |
VDC |
|
Thermal effect on zero |
0.025 |
±% of FSO/°C |
|
Compensated temperature range |
–30 to +80 |
°C |
|
Construction |
Painted steel |
|
|
Environmental protection |
IP66 |
|
APPLICATIONS
• Tank weighing or level systems
• Agricultural equipment
• Rolling mill sensing
• Moment sensing
• Structural loading measurements • Bridge structures
