Sku: LR-Cal LTC-DB-1200-35
High-temperature dry block calibrator up to 1200°C with ±3°C accuracy and ±0.05°C stability. Ideal for calibrating thermocouples and industrial sensors.
Product Information

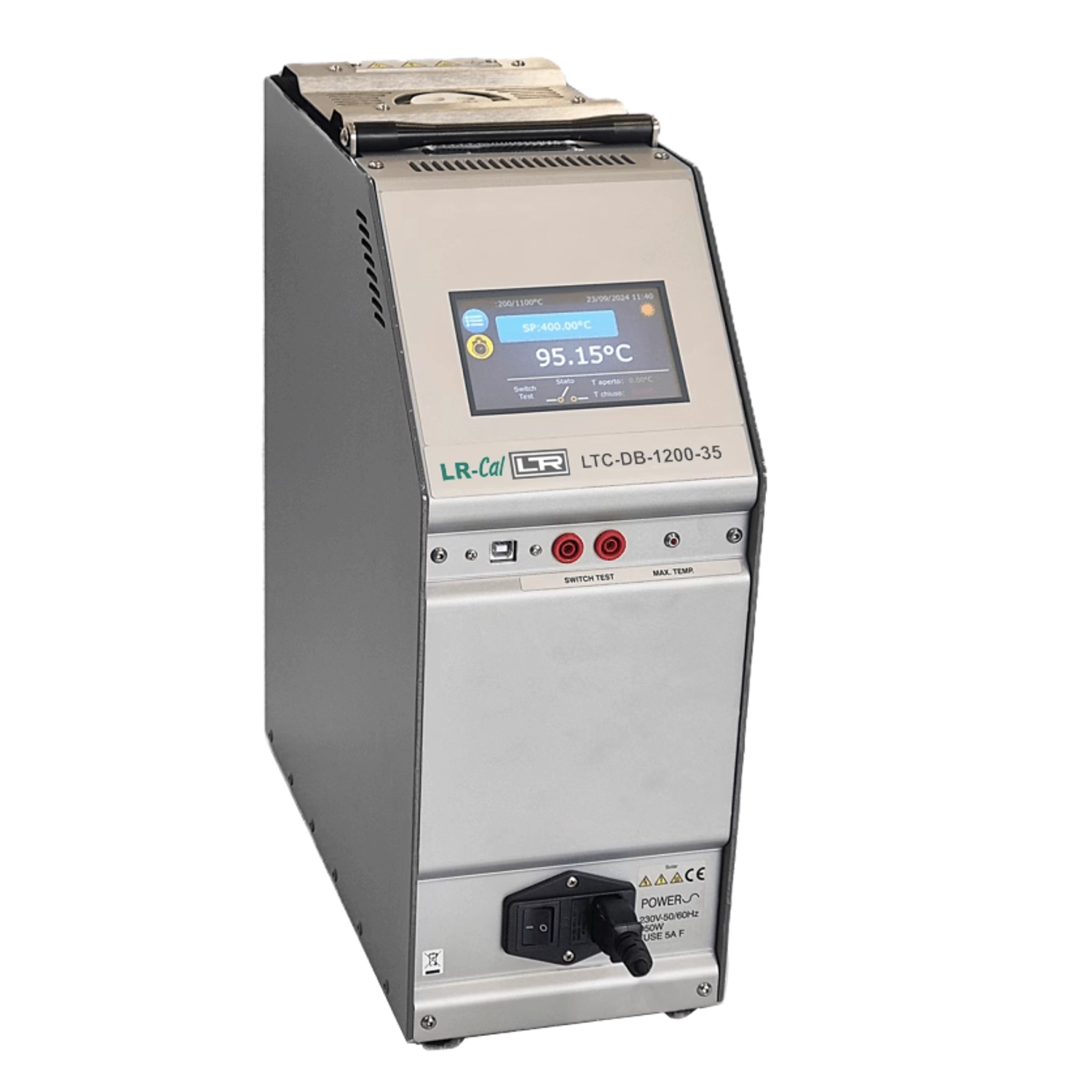

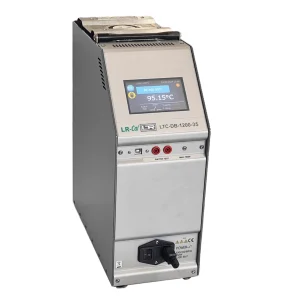

The LR-Cal LTC-DB-1200-35 metal dry block temperature calibrator serves as both a temperature source and a reference device for testing and calibrating all types of temperature-measuring instruments.
- Temperature range +200°C…+1200°C
- Homogeneous temperature distribution
- Easy operation with a colour touchscreen
- Ramp function + thermostat tests
- Computer-controlled calibrations via USB interface and optional LR-Cal Aq2Sp2 software for MS Windows® PCs
- Numerous block inserts with different bores are available for different test objects
Less thermal stress for your test specimens
The LR-Cal LTC-DB-1200-35 metal dry block temperature calibrator is equipped with a counterflow forced ventilation system that keeps the temperature in the upper part of the calibrator very low. This solution enables keeping the connection head or housing of the device under test very close to room temperature.
It also ensures a high level of safety for the operator, as the temperature of the grille on the top of the housing remains very low.
The figure shows a thermocouple as a test object in an LR-Cal LTC-DB-1200-35 at 1,000°C. The temperature of the test object’s connection head, measured with an optical pyrometer, is only 37.7°C, which is very close to room temperature. This test confirms the excellent insulation of this calibrator.
- Portable metal dry block temperature calibrator
- Range +200°C…+1200°C
- Accuracy ±3°C, stability ±0.05°C
- Dry block: 35 mm diameter
Immersion depth: 210 mm
| Description: | Data: | |
|---|---|---|
| Temperature range: | +200…+1200°C | |
| Display: | Touchscreen (color) | |
| Display accuracy: | ±3°C full temperature range * | |
| Units of measure: | °C / °F / K | |
| Display resolution: | 0,1° / 0,01° / 0,00^° | |
| Mean heating time: (incl. stabilization) |
approx. 60 min. from ambient temperature to +1000°C |
|
| Mean cooling time: (incl. stabilization) |
approx. 330 min. from +1000°C to +100°C |
|
| Stability: | ±0.05°C | |
| Axial uniformity: | 1.5°C ±0.8 ** | |
| Radial uniformity: | ±0.5°C *** | |
| Hole (block) diameter: | 35 mm | |
| Hole (block) depth: | 210 mm | |
| Insert material: | Ceramics (optional Inconel) | |
| Switch test; voltage: | Open/Closed; 4.5 VDC | |
| Adjustable ramp function: | from 0.1°C/min | |
| PC interface: | USB type B | |
| Automatic calibration: | at 5 temperature points | |
| External probes: | not available for LR-Cal LTC-DB-1200-35 | |
| Operating voltage: | 230 VAC 50/60 Hz | |
| Electric power: | 900 W | |
| Dimensions: | 160 x 350 x 385 mm | |
| Weight incl. std. accessories: | 11.5 kg | |
All values have been measured at ambient temperature of +20°C.
The achievement of stabilization is confirmed by a displayed root symbol and an audial beep.
* = Temperature deviation between display and reference probe.
** = Max. temperature difference at stable temperature over 30 min.
*** = Measured at 1000°C at 40 mm above the button.
