LR-Cal LTC-DB-0600-35
LR-Cal LTC-DB-0600-35
Sku: LR-CAL-LTC-DB-0600-35
Dry block temperature calibrator up to 600°C with ±0.3°C accuracy and ±0.05°C stability. Ideal for high-temperature calibration of sensors and thermometers.
Product Information

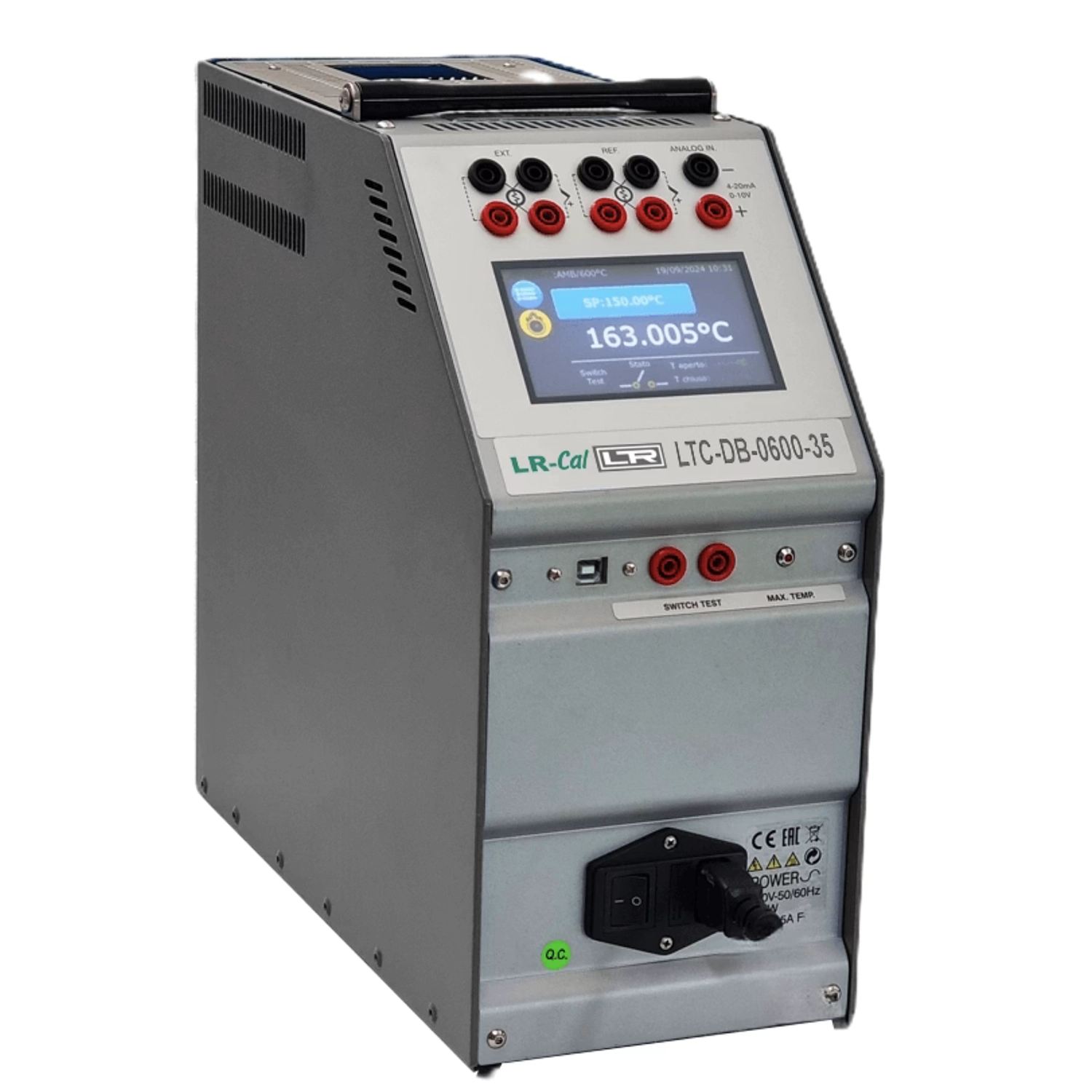

The LR-Cal LTC-DB-0600-35 metal dry block temperature calibrator serves as both a temperature source and reference device for testing and calibrating all types of temperature measuring instruments.
- Temperature range Ambient temperature…+600°C
- Homogeneous temperature distribution
- Easy operation with a colour touchscreen
- Ramp function + thermostat tests
- Computer-controlled calibrations via USB interface and optional LR-Cal Aq2Sp2 software for MS Windows® PCs
- Numerous block inserts with different bores are available for different test objects
- Option: Block insert with “black body” for calibrating infrared thermometers
Less thermal stress for your test objects:
The innovative ventilation concept of the LR-Cal LTC-DB-0600-35 significantly reduces the temperature on the top of the calibrator. A targeted tangential air flow passes evenly through the device and directs the warm air to the rear in a controlled manner. This keeps the measuring heads and housings of your test objects in a noticeably cooler environment. Measurement and compensation errors that can arise due to excessive ambient temperatures are thus effectively minimised.
- Portable metal dry block temperature calibrator
- Range ambient temperature…+600°C
- Accuracy ±0.3°C, stability ±0.05°C
- Dry block: 35 mm diameter
Immersion depth: 185 mm
