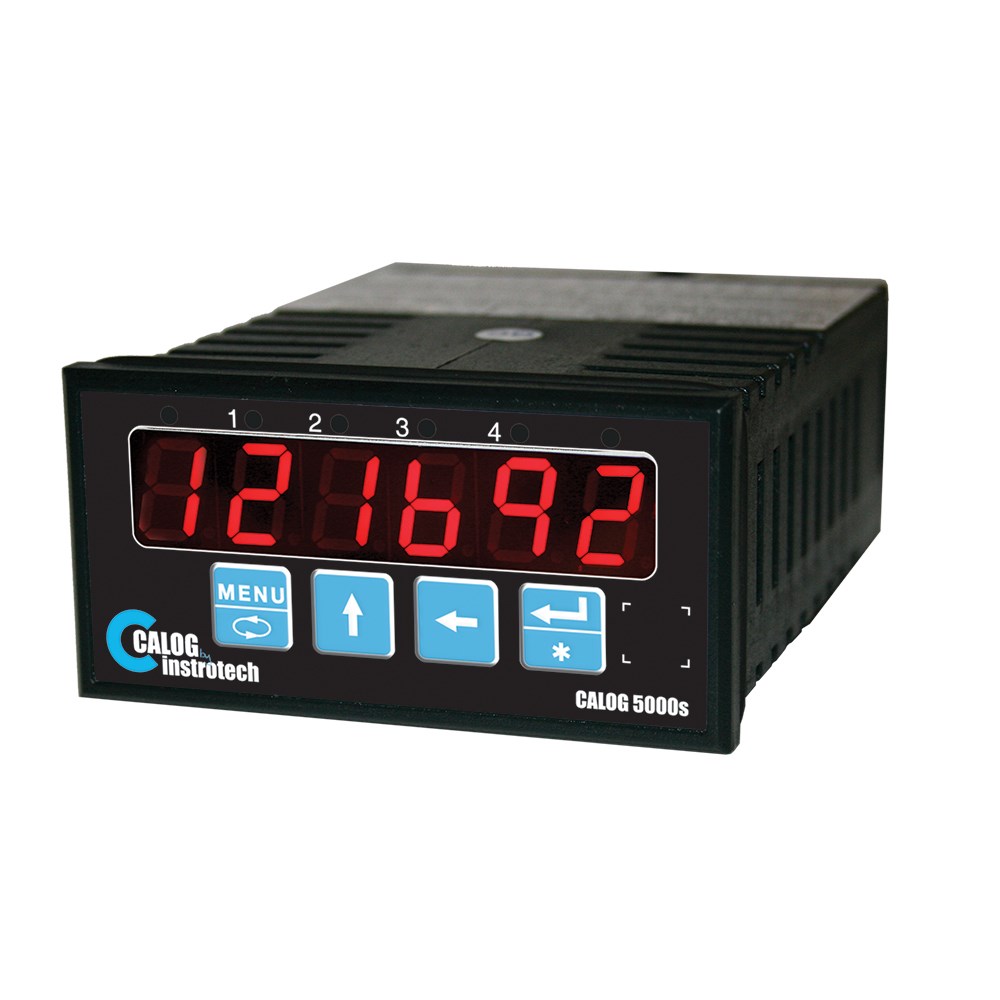

DPM5002
Product Information
As a universal indicator, the instrument is fully programmable from the front push buttons for decimal point selection, scaling, positive or negative logic, parallel or multiplexed BCD input, Gray Code input & Binary input. The panel mount housing is a standard DIN 48mm x 96mm size.
Applications include displays for PLC outputs for process control, & displays for absolute shaft encoders.
Options include programmable analogue output, one, two, three or four alarms, RS-232 output etc. The analogue output is programmable from the front push buttons.
Selected options now feature ‘Plug & Play’ technology, allowing option boards to be ordered separately & field fitted when required.
- Front panel IP 65 / NEMA 4 / UL Type 4 rating,
- 5 ¾ digit display with parallel BCD input (-199999 to 799999)
- 6 digit display with multiplexed BCD input (-199999 to 999999) 999999)
- Positive or negative (true or inverse) logic
- 5 to 24V logic levels
- Keypad lockout as standard
- Low cost – high performance design
- Keypad lockout available at no extra charge
- Meets European EMC directive 89/336/EEC & Low Voltage directive 73/23/EEC
- Customizable to suit your requirements
General
| Display | 4 digit : -1999 to 9999 |
| Display | Colour : Red |
| Display | Size : 14.2mm |
| Display | Type : 7 Segments LED |
| Enviromental | Humidity : < 85% non-condensing |
| Enviromental | Operating temperature range : -10 to +50°C |
| Enviromental | Service temperature range : -15 to +60°C |
| Enviromental | Storage temperature range : -40 to +80°C |
| Front panel rating | IP 65 / NEMA 4 / UL Type 4 with supplied o-ring seal |
| Mounting | Panel Mounted |
| Physical | Cut out Size : 48mm x 96mm |
| Physical | Size : 48mm x 96mm x 147mm |
| Physical | Weight : approx. 385g (no options fitted) |
| Power Supply | 12Vdc or 24Vdc non-isolated on request, 5VA typical |
| Power Supply | Optional : 12Vdc isolated switch mode power supply option (Option 3008-12), 5VA typical |
| Power Supply | Optional : 24Vdcsolated switch mode power supply option (Option 3008-24), 5VA typical |
| Power Supply | Optional : 8 – 30Vdc isolated switch mode power supply option (Option 3008), 5VA typical 95V-265Vac/dc switch mode power supply option (Option 3010), 5VA typical |
| Power Supply | Optional : 95V-265Vac/dc switch mode power supply option (Option 3010), 5VA typical |
| Power Supply | Standard : 115 / 230 VAC ± 10% (standard), link selectable, 50/60Hz, 5VA typical |
| Protection | UL94V-0 : Flame retardant ABS plastic housing |
| Regulatory compliance | Complies with EC Directives 89/336/EEC & 73/23/EEC |
| Regulatory compliance | Complies with EC Directives 89/336/EEC & 73/23/EEC |
Set Point Options
| Electro-mechanical relay: | Form type: Form C (change-over contact) |
| Electro-mechanical relay: | Rating: 250Vac, 30Vdc, 2A, power factor 1 |
| Solid-state relay | Form type Form A (normally open contact) |
| Solid-state relay | Rating: 400Vac/dc, 0.5A, power factor 1 |
Serial Interface Options
| Capabilities – Asciibus protocol – continuous output approximately 5 x second | |
| Capabilities – Asciibus protocol – continuous output approximately 5 x second | – output on demand via print button |
| Capabilities – Asciibus protocol – continuous output approximately 5 x second | – output on demand via serial request |
| Capabilities – Digibus protocol | Full remote control, except for field setup |
| Isolation to input | Optional, 1500V isolation (order option 3006) |
| Serial interface | RS-232 or RS-485, 2400, 4800, 9600 & 19200 baud |
Operation
| Display specification | 6 digit (-199999 to 999999) bright red LED, 14.2mm high |
| Display update rate | 5 per second |
| Input types | Parallel or multiplexed BCD, Gray Code, or Binary input |
| Internal pull-ups | Yes |
| Level | 5 to 24V |
| Logic | Positive or negative (true or inverse) |
| Memory retention | Full non-volatile operation |
| Setup and calibration | Full digital with visual prompting in plain messages |
| Terminations | 2 way plug for auxiliary supply, 0.2 – 2.5mm |
| Terminations | 25 way D-type male connector, with female cable plug incl. |
| Warm-up time | None required |
Analogue Outout Options
| Analog output accuracy | 0.1% of full scale, 12-bits |
| Analog output isolation | Optional, 1500V input/output isolation (order option 3006) |
| Analog output temp. coefficient | 20ppm / °C typically |
| Current analog output load | 500O maximum (current is source, not sink) |
| Voltage analog output load | 1kO minimum |
- DPM3003 – 0 – 20mA / 4 – 20 mA analogue output
- DPM3006 – Isolated outputs (order with 3002/3/13)
- DPM3009 – Parallel BCD output (cannot be ordered with any alarm options, option 3006 or with option 3022)
- DPM3028 – 10 – 30Vdc non isolated dc supply
- Setpoint – Alarms – DPM3001P, DPM3001M, DPM3004P, DPM3004M, DPM3017P, DPM3017M, DPM3018P, DPM3018M
- Outputs – DPM3002, DPM3013
- Power Supply – DPM3008, DPM3010
- Displays – DPM3020
