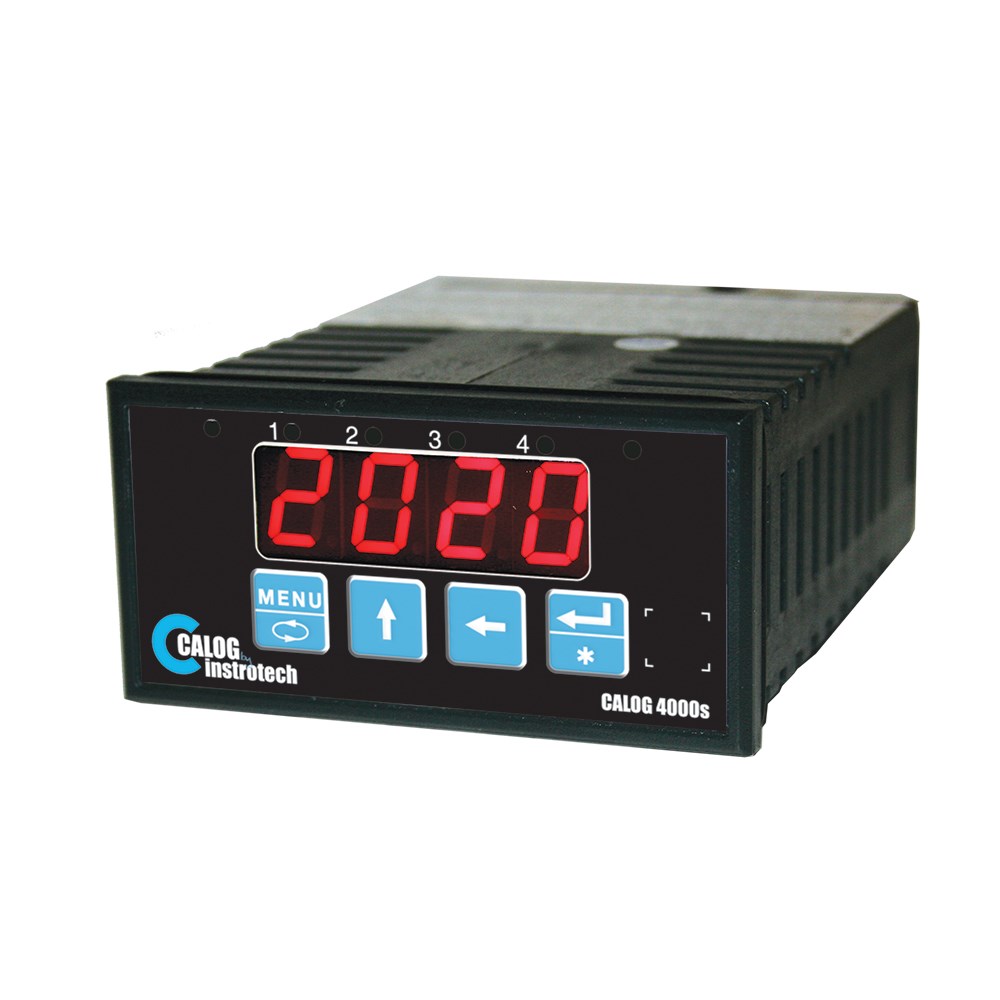

DPM4006
Product Information
The input terminals are of heavy duty type, and the housing is an industry standard DIN 48mm x 96mm. Options include programmable analogue output & alarm set points up to 4 alarms. The display & analogue output is programable from the front push buttons.
Selected options now feature ‘Plug & Play’ technology, allowing option boards to be ordered separately & field fitted when required.
- Voltage inputs up to 600V, Current inputs up to 5A
- Front panel IP65 / NEMA 4 / UL Type 4 rating,
- -1999 to 9999 display counts
- Keypad lockout standard
- Analogue output option with programmable zero & span
- Meets European EMC directive 89/336/EEC & Low Voltage directive 73/23/EEC
- Customizable to suit your requirements
General
| Display | 4 digit : -1999 to 9999 |
| Display | Colour : Red |
| Display | Size : 14.2mm |
| Display | Type : 7 Segments LED |
| Enviromental | Humidity : < 85% non-condensing |
| Enviromental | Operating temperature range : -10 to +50°C |
| Enviromental | Service temperature range : -15 to +60°C |
| Enviromental | Storage temperature range : -40 to +80°C |
| Front panel rating | IP 65 / NEMA 4 / UL Type 4 with supplied o-ring seal |
| Mounting | Panel Mounted |
| Physical | Cut out Size : 48mm x 96mm |
| Physical | Size : 48mm x 96mm x 147mm |
| Physical | Weight : approx. 385g (no options fitted) |
| Power Supply | Optional : 10 – 30Vdc isolated switch mode power supply option (Option 3008), 5VA typical |
| Power Supply | Optional : 8 – 30Vdc isolated switch mode power supply option (Option 3008), 5VA typical 95V-265Vac/dc switch mode power supply option (Option 3010), 5VA typical |
| Power Supply | Standard : 115 / 230Vac ± 10% (standard), link selectable, 50/60Hz, 5VA typical 8 – 30Vdc non-isolated on request, 5VA typical (Option 3028) |
| Protection | UL94V-0 : Flame retardant ABS plastic housing |
| Regulatory compliance | Complies with EC Directives 89/336/EEC & 73/23/EEC |
| Supply | Standard : 95 to 265Vac/dc |
Analogue
| Output options | Analogue output accuracy : 0.1% of full scale, 12-bits |
| Output options | Current analogue output load : 500O maximum |
| Output options | Voltage output load: 1kO minimum |
| Prefomance | AC measurement: Root mean square |
| Prefomance | Conversion rate : 6 per second |
| Prefomance | Internal resolution : 40000 counts |
| Prefomance | Memory retention: Non-volatile operation |
| Prefomance | Self test time: 1 – 3 seconds |
| Prefomance | Settling time: 1 second |
| Prefomance | Temp. coefficient : 20 ppm/°C typ |
| Prefomance | Warm up time : None required |
Set Point Options
| Electro-mechanical relay | 250Vac, 30Vdc, 2A |
| Solid state | 400Vac/dc, 0.5A |
Serial Interface Options
| Isolation to input | Optional, 1500V isolation (order option 3006) |
This Product is available in the following options:
- DPM3006 – Isolated outputs (order with 3002/3/13)
- DPM3009 – Parallel BCD output (cannot be ordered with any alarm options, option 3006 or with option 3022)
- DPM3012 – Peak / valley hold
- DPM3014 – Auto zero (with remote zero)
- DPM3025 – Keypad lockout Standard
- DPM3026 – Display hold
- Setpoint – Alarms – DPM3001M, DPM3004P, DPM3004M, DPM3017P, DPM3017M, DPM3018P, DPM3018M, DPM3001M
- Outputs – DPM3002, DPM3013
- Power Supply – DPM3008, DPM3010
- Displays – DPM3020, DPM3022
