DPM3505
Product Information

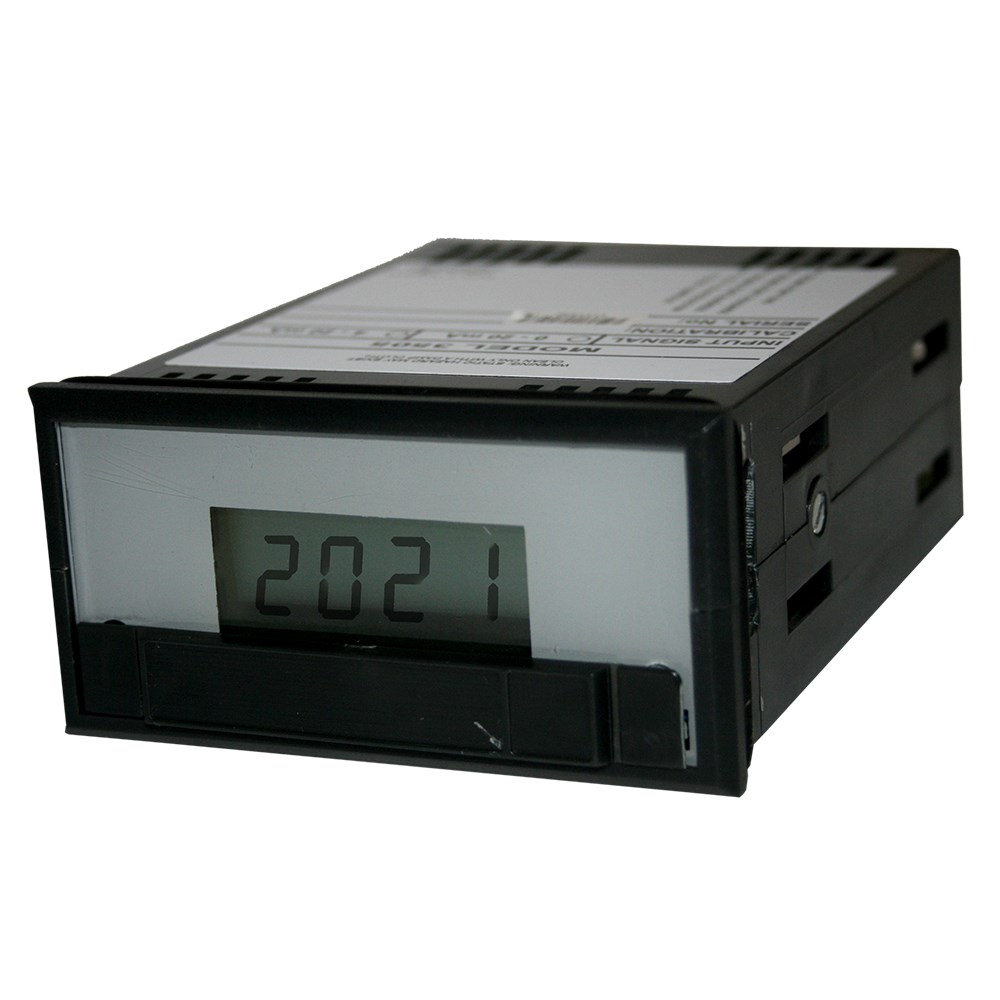

The Models 3506 and 3505 are low power, liquid crystal display, loop powered 3½ Digit Indicators.
Switch selectable display calibration and decimal point selection allows for easy field setting of engineering units for pressure, flow, level, mass etc.
- DIN 48 X 96 Enclosure
- 1999 Counts
- 12,7 mm LC Display
- No supply cabling
| Input Ranges |
4 – 20 mA dc |
|
ADJUSTABILITY |
|
|
Decimal Point |
Link selectable |
|
Zero Adjust |
Link selectable for live Zero (4-20mA) or Zero base (0, 2 – 20mA) |
|
Span Adjust |
230 – 1999 Counts preselected and trimpot |
|
TECHNICAL SPECIFICATIONS |
|
|
Accuracy |
0.05%typ., 0.2% max. |
|
Linearity |
0.1% of FS |
|
Temperature Coeff. |
±30ppm / °C typ. |
|
Setting Time |
1 second |
|
Operating temperature range |
-10 to +50°C |
|
Storage temperature range |
-20 to +70°C |
|
Power Supply |
Max 2V at 20mA, reverse polarity protected |
|
Input Protection |
Duplicated zener diodes, 5.6 V; 400 mW |
NB: It is highly recommended that the Model 3505 and 3506 are shielded from direct sunlight
