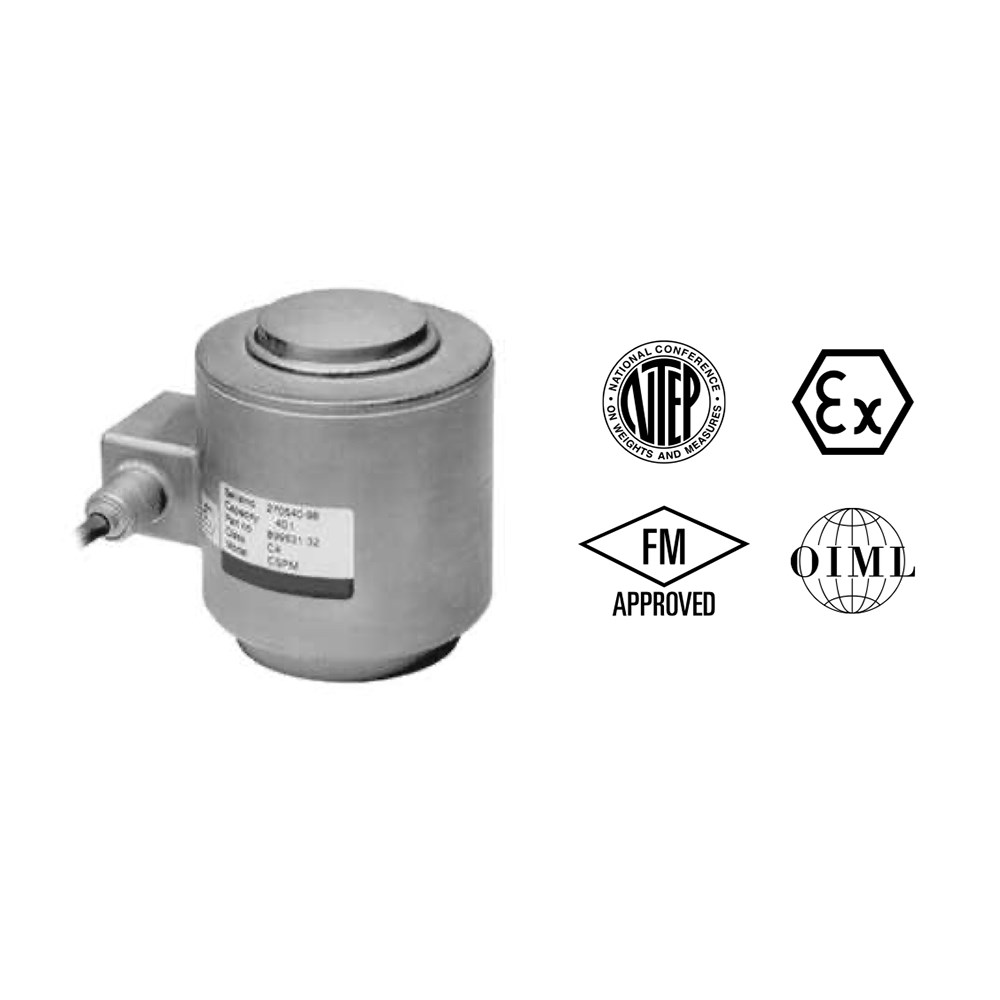

Compression Load Cell (CSPM)
Product Information
The Model CSP is a multi-column, low proile, stainless steel compression load cell. The unique four column design offers excellent insensitivity to eccentric loads while maintaining accuracy.
This product is suitable for use in road and rail weighbridges and process weighing applications.
The fully leak-tested welded construction, advanced cable entry, and built-in surge protection tubes ensure that this product can be used successfully in demanding environments.
This product meets the stringent Weights and Measures requirements throughout Europe.
-
Capacities: 10–100 t
-
Low profile, multi-column stainless steel construction
-
Hermetically sealed, IP66, IP68, and IP69K
-
Certified to OIML R-60, 4000d and NTEP Class IIIL 10000 divisions
-
– Model CSP offers klb capacity, imperial thread and NTEP approval
-
– Model CSP-M offers metric capacity, thread and OIML approval
-
-
Built-in surge protection tubes (GDTs)
-
Current calibration output (SC version) ensures the easy and accurate parallel connection of multiple load cells
-
Optional
-
– ATEX and FM certified versions are available for use in potentially explosive atmospheres
-
– Multi-interval and multiple range versions available
-
– Imperial capacities (25k, 50k, 100k, 200k lbs) not OIML approved
-
(1)100 t only has C1 grade of OIML
(210, 300, 500 klb are not NTEP approved
Approval limit: Class III Vmin=Emax/10000 (0.0014%Of FSO/°C); Class IIIL Vmin=Emax/30000 (0.0014%Of FSO/°C)
FSO—Full Scale Output
SC-version: The rated output and the output resistance are balanced in such a way, that the output current is calibrated to within 0.05% of a reference value. This allows easy parallel connection of the load cells.
All specifications subject to change without notice
|
SPECIFICATIONS |
|||||
|
PARAMETER |
VALUE |
UNIT |
|||
|
Standard capacities (Emax) |
10, 25, 40, 60, 100(1) |
t klb |
|||
|
Accuracy class according to OIML R-60/NTEP |
NTEP IIIL |
NTEP IIIL |
C3 |
C4 |
|
|
Maximum no. of verification intervals |
10000 |
3000 |
3000 |
4000 |
|
|
Minimum verification interval (Vmin=Emax/Y)(3) |
Emax/5200 |
Emax/29000 |
Emax/12,500 |
Emax/12,500 |
|
|
Minimum verification interval, type MR |
Emax/17,500 |
Emax/17,500 |
|||
|
Rated output (=S) |
2 |
±mV/V |
|||
|
Rated output tolerance |
0.02 |
±mV/V |
|||
|
Zero balance |
1.0 |
mV/V |
|||
|
Total error |
0.02 |
0.05 |
0.023 |
0.017 |
±% FSO |
|
Nonrepeatability |
0.01 |
0.01 |
0.01 |
0.009 |
±% FSO |
|
Zero return |
0.015 |
0.0167 |
0.0167 |
0.0125 |
±% applied load |
|
Creep error (30 minutes) |
0.05 |
0.035 |
0.0245 |
0.0184 |
±% applied load |
|
Temp. effect on min. dead load output |
0.00144 |
0.0027 |
0.0011 |
0.0011 |
±% FSO/°C |
|
Temp. effect on min. dead load output, type MR |
0.0008 |
0.008 |
±% FSO/°C |
||
|
Temperature effect on sensitivity |
0.00144 |
0.00144 |
0.001 |
0.0007 |
±% applied load/5 |
|
Maximum safe static overload |
150 |
% Emax |
|||
|
Ultimate static overload |
400 |
% Emax |
|||
|
Maximum safe side load |
10 |
% Emax |
|||
|
Excitation voltage |
5 to 20 |
V |
|||
|
Excitation recommended |
10 |
V |
|||
|
Input resistance |
450 ±4.5 |
Ω |
|||
|
Output resistance |
480 ±4.8 |
Ω |
|||
|
Insulation resistance |
>5000 |
MΩ |
|||
|
Compensated temperature range |
–10 to +40 |
°C |
|||
|
Operating temperature range |
–40 to +80 |
°C |
|||
|
Storage temperature range |
–50 to +90 |
°C |
|||
|
Element material |
Stainless steel 1.4542 |
||||
|
Sealing (DIN 40.050 / EN60.529) |
IP66 and IP68 |
||||
